KS-200DH Adjustable Temperature Controlled Soldering Station of 90W

Name: KS-200DH Adjustable Temperature Controlled Soldering Station of 90W
Brand: KINGSOM
SKU: 131480599
Availability: InStock

US$ 80 - 150 MOQ: 1 Set

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

KINGSOM

Model Number:

KS-200DH

Shenzhen Kingsom Electronic Business Firm

Payment & Shipping

Payment Methods:

Port of Shipment:

shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name KINGSOM

Model Number KS-200DH

Usage Lead free Soldering

Voltage Output Voltage 36VAC 400KHz

Weight 4Kg

Dimensions 25*23.5*13.5cm

Certification CE, RoHS, SGS

Specifications

Kingsom KS-200DH Digital Soldering Station
1.Fast heating speed
2.Auto sleeping,energy-efficient,
3.Max Power 90W

Performance of Kingsom KS-200DH digital Soldering Station :

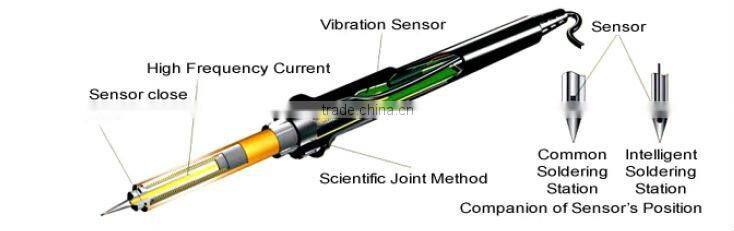

1. Separate design between heater & soldering tip.

2. Astonished heating speed,Only within 25sec to reach 350°C from room temperature.

3. Perfect intelligent soldering effects, sufficient power varies with the sizes of soldering point.

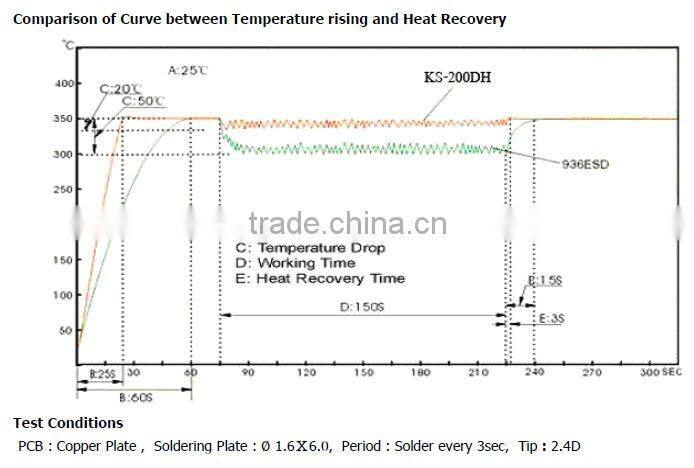

4. Extraodinary heat recovery,Incredible temperature compensation speed can solve temperature

problems occurred during the course of lead-free soldering.It is a must,maybe a better tool for

lead-free soldering and lower-temperature soldering.

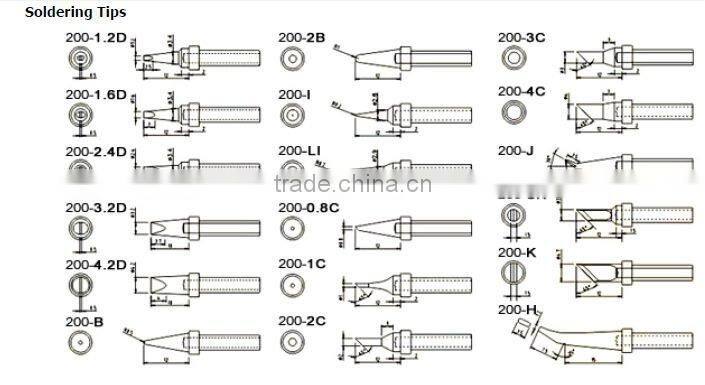

5. Extension of life of soldering tips,Relative lower temperature will largely prolong the life of soldering tips.

Specifications

Model	KS-200DH
Temperature Range	200°C- 420°C or 200°C- 480°C or 50°C- 420°C or 50°C- 600°C
Temperature Stability(no load)	±2°C
Input Voltage/Frequency	220V/110V 50Hz/60Hz
Output Voltage	36VAC 400KHz
Max Power	90W
Time of temperature rising(20°C- 350°C)	25 Sec
Temperature compensation Speed	Most Quick
Heating Mode	Intelligent
Heating Theory	Induction Heater(Frequency Control)
Tip to Ground Resistance	< 2Ω
Tip to Ground Potential	< 2mV
Auto Sleeping	Yes
Temperature- Lock Mode	Password
ESD Housing	Aluminum housing
