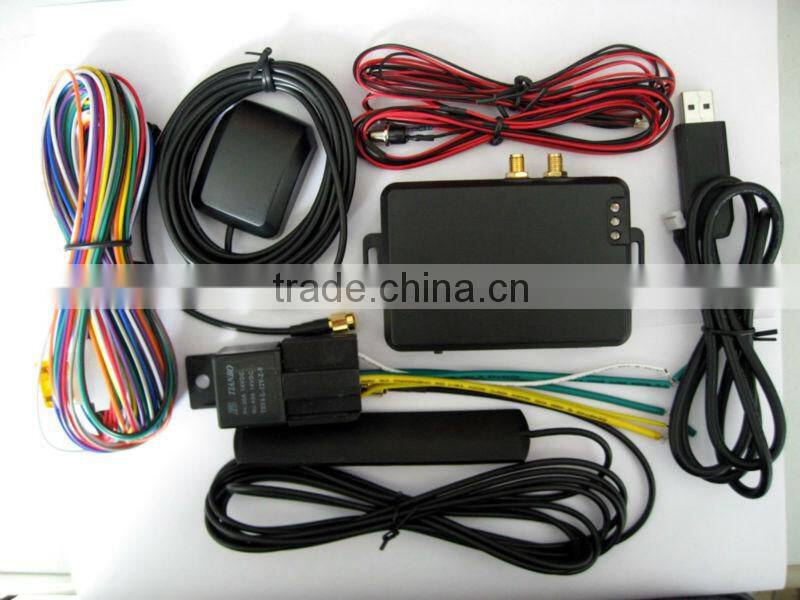

Google maps gps car tracking system for gps tracker
TR20 GPS Tracker,which set multiple functions of accurately positioning,security, monitoring surveillance, emergency alarms and tracking in its entirety,special for vehicle.
The product fully supports the functions of SMS / GPRS / Internet data transmission,to make it more widely used in large-scale monitoring, emergency scheduling, location-based services, traffic safety and many other areas of management.
Functions:
1) Report simple (very easy compatible with your software).
2) Parameter configuration (via sms or pc-setup setup it).
3) Support Tcp/udp communications.
4) Built in memory, storage the data in no gsm signal place.
5) Odometer or mileage(Via gps calculates mileage).
6) Prevent static excursion.
7) Intelligent Report.
8) ACK check enable or disable
9) SMS function
10) Fixed time/distance report
11) Geo-fence
12) Direction change report
13) SOS alarm
14) Built in backup battery, Lower battery alarm/power cut alarm
15) Over speed report
16) Remote fuel cut off
17) Sleeping mode
18) Remote Door Lock/unlock control
19) Arming and disarming
20) Panic
21) Anti-car jacking
22) Emergency release
Options:
A) Temperature sensor
B) Fuel sensor
C) Microphone sensor
D) silk-screen logo
Specifications:
Enclosure dimensions |
93mm*62mm*25mm |
Weight |
200g |
DC Tolerance voltage |
9V - 35V |
GSM Module |
850/900/1800/1900MHz |
GPS Module |
SIRF III |
Protocol |
NMEA0183 |
Number of Channels |
20 Channel Simultaneous Operation |
Current (GPRS online) |
60mA |
Current (GPRS transmission) |
80mA |
Sleeping mode |
40mA |
Accuracy Horizontal |
<5 meters (50%), <8 meters (90%) |
Altitude |
<10 meters (50%), <16 meters (90%) |
Velocity |
0.06 m/sec. |
Hot Start: |
<13 sec |
Warm Start: |
<42 sec |
Cold Start: |
<84 sec |
Backup battery |
800mAh |
Communication |
GPRS SMSRS232 |
Operating Temperature |
-20°C to +55°C |
Storage Temperature |
-40°C to +65°C |
Advantages:
1. Offer pc based and web based tracking software for free.
2. Open protocol and make the customized tracking software for customers.
3. Offer remote help in the installation and use of the product and server for customers.
Displaying the locations on Web-based and PC-based tracking software with Google Map.
My skype: trackpro18
