high quality gps vehicle tracker with Android IOS PAD app
Brife introduction :

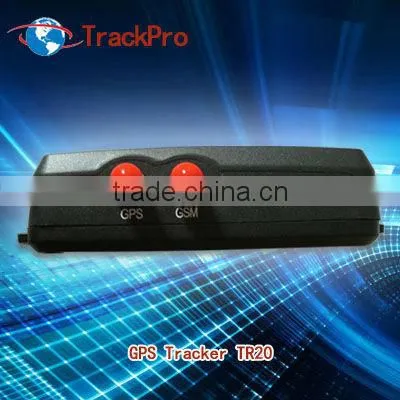

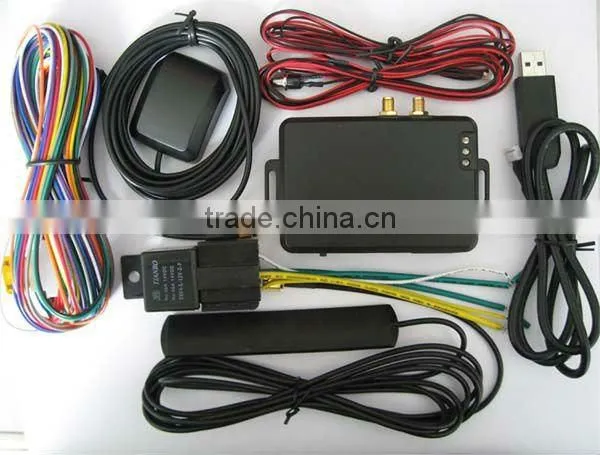

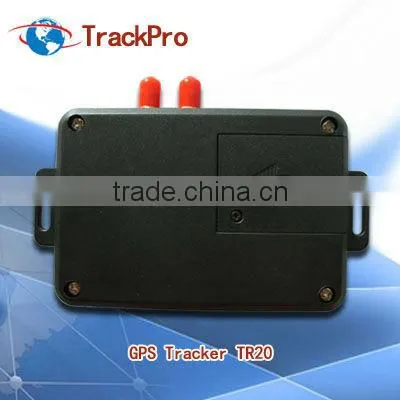

TR20 is a hi-performance gps tracker for vehicle management . It can help to get location and condition of the car , you also can get different kinds of report or alarm . You can monitor your car remotely , like cut oil power / lock unlock the door / voice monitor ect . You can get the car's trace playback , and historical data with he help of the tracker . And TR20 has optional function of fuel sensor (to get the level of the oil) / temperature sensor (monitor the temperature of the frozen car) / odometer sensor (to get the odometer of vehicle)
It can monitor cars by 2 ways : 1.by sending SMS command to get information and monitor it . 2.by tracking platform on the internet .
1 Report includes:
1) Unit’s ID (2) GPS status (valid or last known) (3) time (4) latitude and longitude (5) speed (6) direction, (7) temperature or fuel level (8) vehicle’s status (9) sorts of reports
2. Parameter configuration (connect the unit to the server via GPRS)
Via PC setup cable and PC setup software to set device ID, APN, IP, port, SMS alarm number, geo-fence, speed limit, battery limit, fixed time/distance report ……etc. (PC setup software will be sent via email or packaged in CD with the sample)
Basic features
1 Get the location of vehicle
2 playback the trace of the vehicle on the web based platform
3 send alrm and report to server and authorized number
4 remotely monitor : like cut off oil and power / lock unlock the door
5 voice monitor
Functions details :
1.fixed time / distance report :
you can set fixed time and distance interval , then the device will send report to authorized number and web platform .
2.intelligent report :
can set different parameter of interval : time , distance , parking report and fixed speed to let the device send report as you want .
3.geo-fence :
it can set geo-fence , will send report when the vehicle in or out of the geo-fence .
4.direction changing report :
when the direction changing exceed the preset value , the device will send report .
s alarm :
press the sos button to send sos alarm .
6.low battery alarm :
to alert the user by sending report when the battery level is low .
7.over speed report :
when the speed exceeds the preset value , the device will send report .
8.built in memory :
within 2M memory , when the vehicle in no siginal place , it will storage the reports in the memory . when the signal recover , it will send these report to the server .
9. buit in backup battery :
when the vehicle is cut , it wiil send power cut report , then the backup battery will work for 3-4 hours .
10.sleeping mode :
you can set the device into sleeping mode to save power when ACC off .
11.door lock / unlock control :
User can send command through platform and authorized number to lock/unlock the door remotely .
12.arming (for anti-theft) :
when the ACC off , you can send arming command to the vehicle . It will send arming report if there is any disturb .
13.Panic :
send panic command to the tracker , the horn will sound and parking lights will flash to scare the security risk .
14.Anti-car jacking (fuel cut off) :
when the ati-car jacking activates , the led will flash and siren chrips , system will lock the ignition of the vehicle .
15.emergency release :
when the vehicle in arming mod , panic mode , anti-car jacking mode , user can send this emergency release to exit those modes .
16.voice monitor
Optional function :
17.fuel sensor :
to send fuel report when the fuel level exceed preset value .
18.temperature sensor :
to send temperature report when the temperature exceed preset value .
19.odometer sensor :
to caculate the odometer .
SPECIFICATION
Enclosure dimensions |
93mm*62mm*25mm |
Weight |
200g |
DC Tolerance voltage |
9V - 35V |
GSM Module |
850/900/1800/1900MHz |
GPS Module |
SIRF III |
Protocol |
NMEA0183 |
Number of Channels |
20 Channel Simultaneous Operation |
Current (GPRS online) |
60mA |
Current (GPRS transmission) |
80mA |
Sleeping mode |
40mA |
Accuracy Horizontal |
<5 meters (50%), <8 meters (90%) |
Altitude |
<10 meters (50%), <16 meters (90%) |
Velocity |
0.06 m/sec. |
Hot Start: |
<13 sec |
Warm Start: |
<42 sec |
Cold Start: |
<84 sec |
Backup battery |
800mAh |
Communication |
GPRS SMSRS232 |
Operating Temperature |
-20°C to +55°C |
Storage Temperature |
-40°C to +65°C |
Delivery period : 1-7 days after payment confirmed
Payment term : T/T west union and paypal
Shippig way : DHL UPS FEDEX and other way as the customer's demand
Warranty : 2 years
After-sale service : We will help you install it and set it . Our technician will help you if any problem occurs .
If need any other information , pls contact me !
Your inquiry and other email will be highly appreciate .
Skype:trakpro09

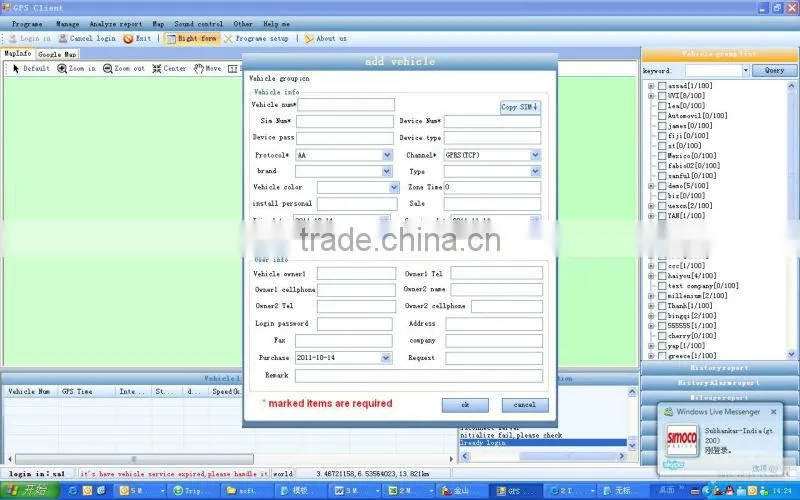

Add the tracker to the platform

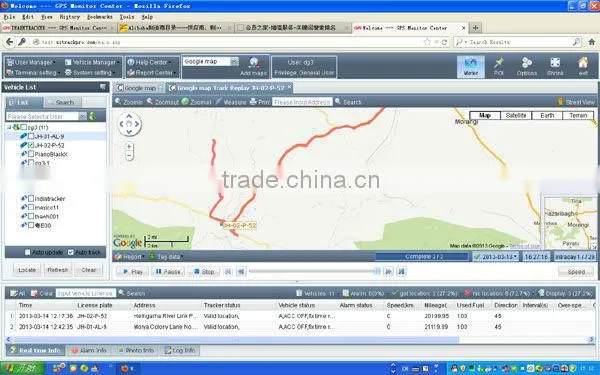

check the trace on the platform
Check the report on the platform
If you want to test our tracker and platfom , Kindly use this link :
username:doristest password:1234
Pls note : besides high quality trackers and tracking software , we are best service provider . Our technician will help you with any problem about the tracker or tracking software .
We will do our best to satify you within our rich experience in gps tracking field .
