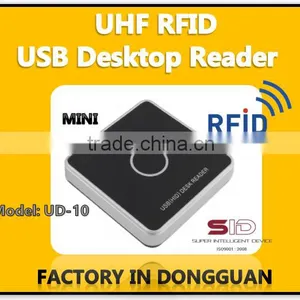

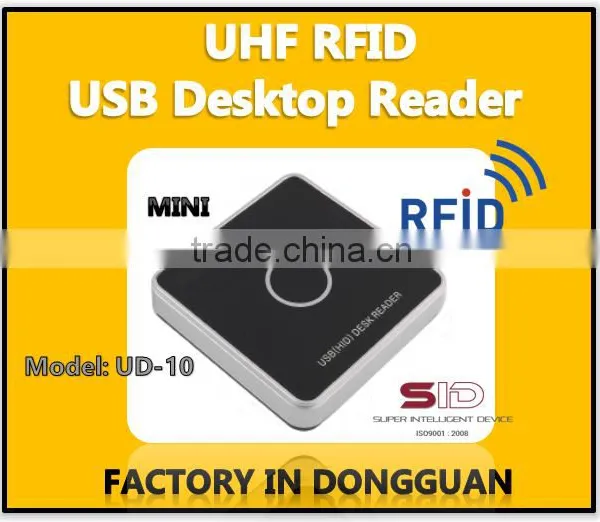

UHF RFID USB Desktop Reader Mini Type UD-10- SID Global

Name: UHF RFID USB Desktop Reader Mini Type UD-10- SID Global
Brand: SID-Global
SKU: 131478167
Availability: InStock

US$ 100 - 100 MOQ: 20 Pieces

Key Specifications

Place of Origin:

Selangor, Malaysia

Brand Name:

SID-Global

Model Number:

UD-10

Sid Global Sdn. Bhd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen or Kuala Lumpur

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Selangor, Malaysia

Brand Name SID-Global

Model Number UD-10

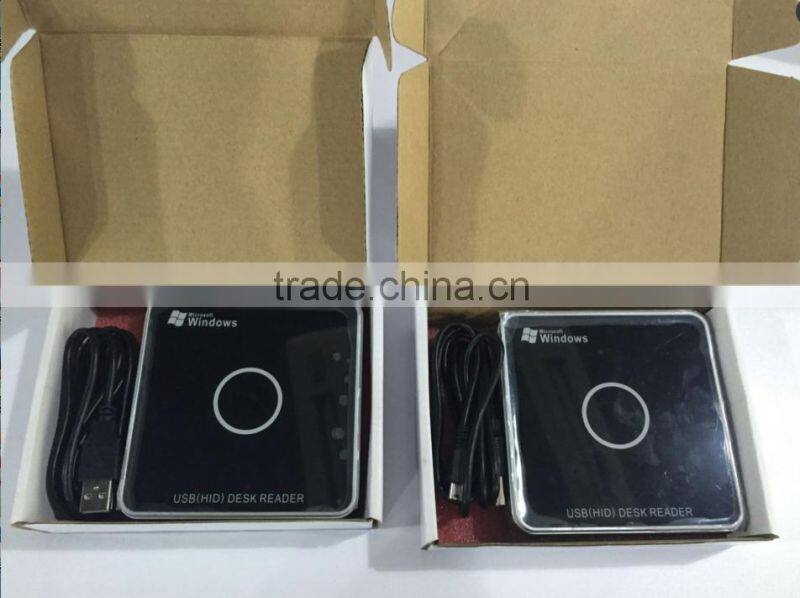

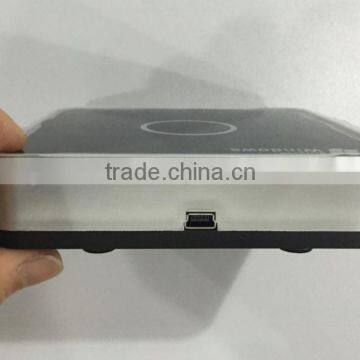

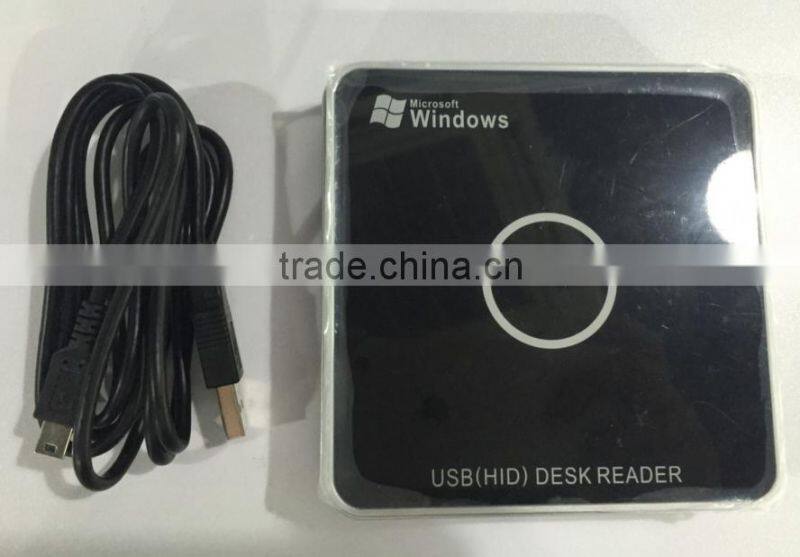

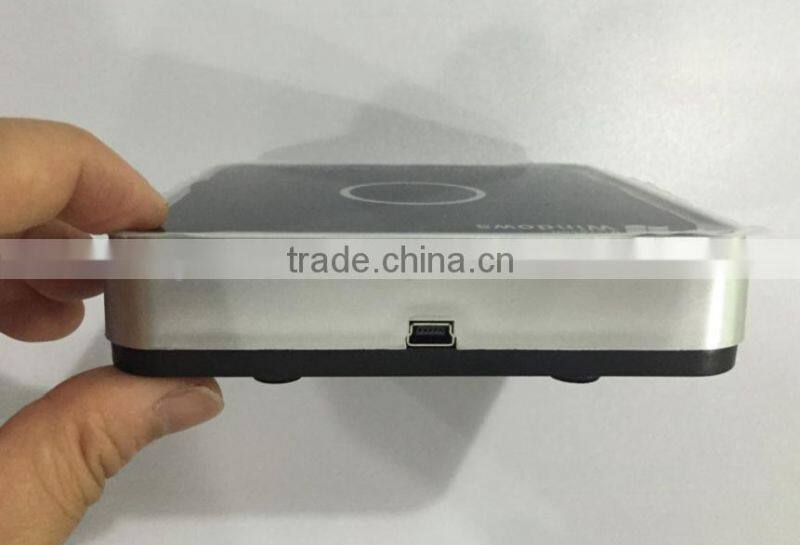

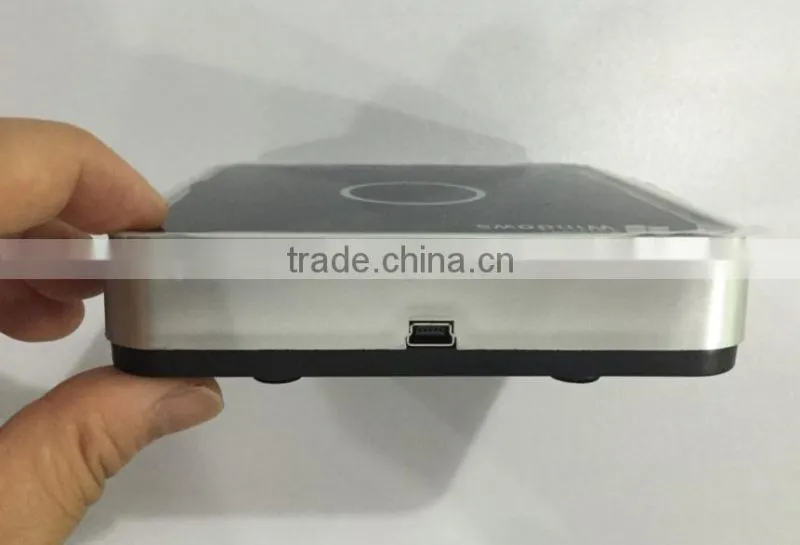

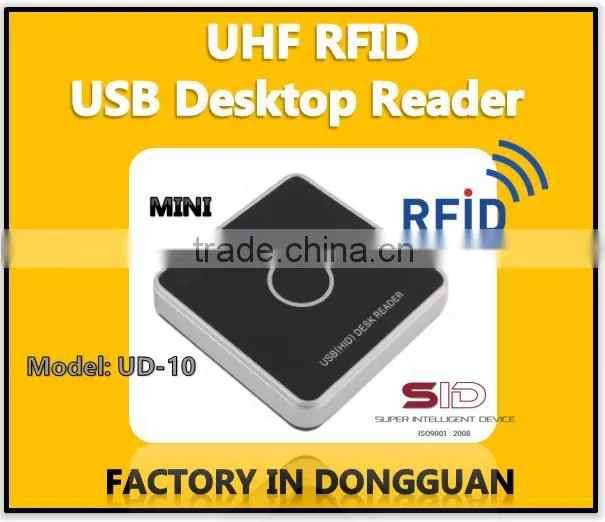

UHF RFID USB Desktop reader Mini Type UD-10- SID Global

Product Description

Applications

- Ø Tag issuance
- Ø Document issuance
- Ø File Issuance
- Ø Certificate Issuance
- Ø And more…

Features

Ø Support ISO18000-6C EPC Gen2
Ø Support USB HID compliant
Ø Low voltage
Ø Controlled read distance within 8cm
Ø Superb coverage with microstrip antenna or near field antenna at customer’s choice

Model	UD - 10
Physical Characteristics	Dimensions	107 (W) x 107 (L) x 23 (H) mm
Physical Characteristics	Weight	400g
Environment	Operating Temp	-20°C to 55°C (-4°F to 131°F)
	Storage Temp	-40°C to 80°C (-40°F to 176°F)
	Humidity	10% to 95%
	Casing	IP54
Antenna Selections: Microstrip Antenna (120 x 120 x 4)mm / Near Field Antenna (110 x 40 x 1.6)mm	Polarization	RHCP / Linear
	Peak Gain	6 dbi / 4 dbi
	Beam Width	>40 MHz / >200 MHz
	VSWR Ratio	1.5:1.0 dBi / 1.5:1.0 dBi
	Axial Ratio	< 2.0 Db
Power	External 5 VDC (70mAh @sleep mode; 150mAh @ operating mode)
Frequency Ranges	902 or 928 MHz band or 856-868Mhz
RF power control	20-30dBm
Tag Air Interfaces	EPC Class 1 Gen 2
Communication Interface	USB (HID compliant);
Reader Range	>1cm – 8cm tag and antenna dependent
