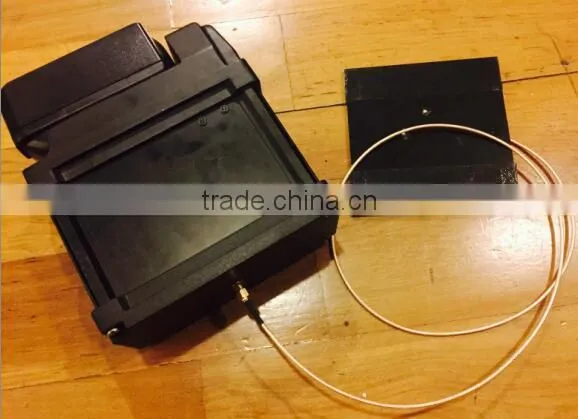

UHF RFID Forklift Bluetooth Reader - SID Global UF-001
Applications
- Ø Ideal for BIG Warehouses
- Ø Logistics
- Ø Mobile Bin

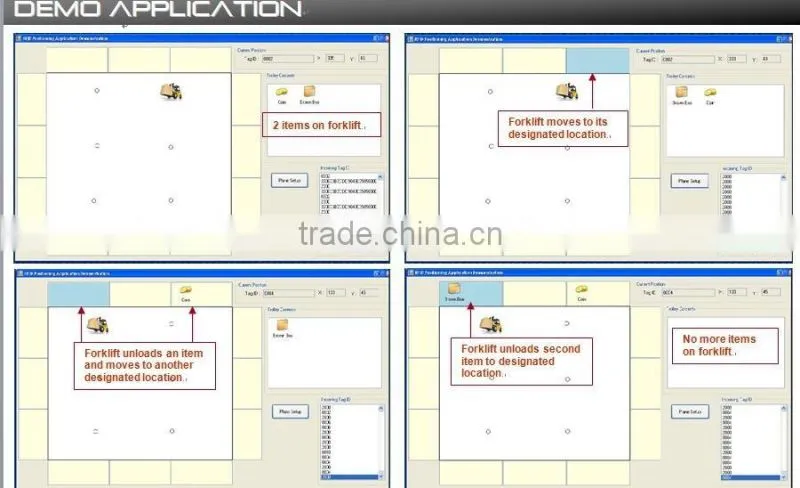

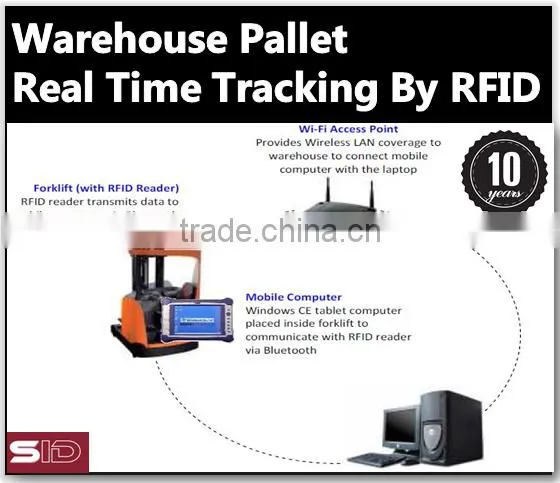

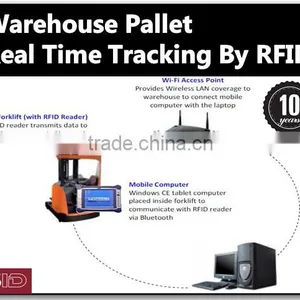

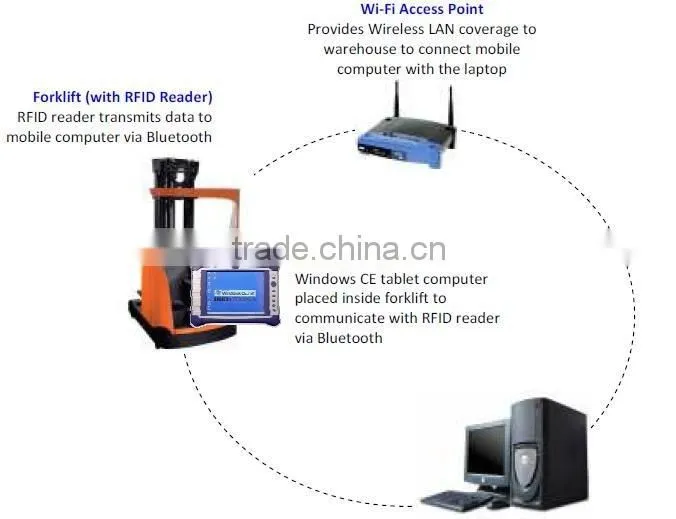

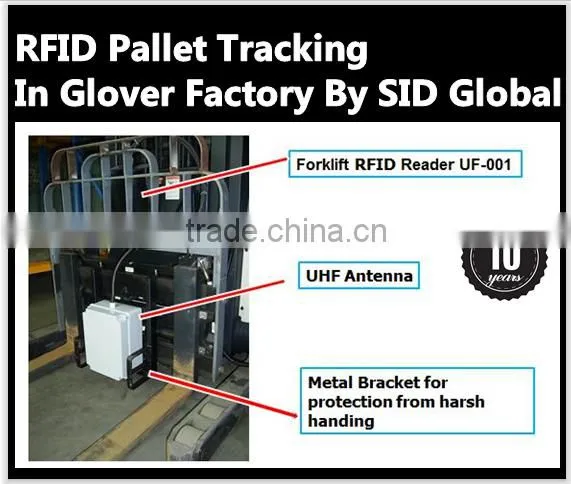

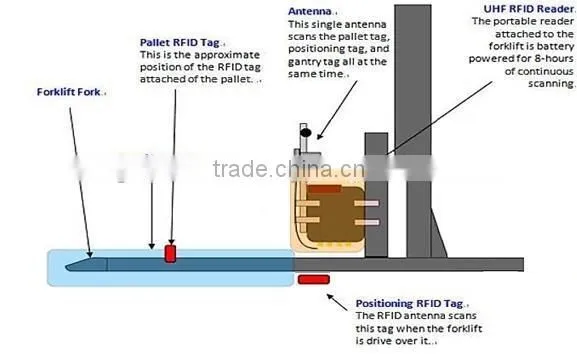

- Ø Forklift Location Tracking
- Ø Rubbish Truck
- Ø Indoor and Outdoor Event Management
Features
- Ø Support ISO18000-6C EPC Gen2
- Ø Removable high capacity Li-Ion battery
- Ø Rapid charger charges battery in 30 minutes
- Ø Bluetooth interface
- Ø Rugged metal housing
- Ø Selectable antenna type
- Ø Choice of 1 port (UF – 001) or 4 ports (UF – 004)
- Ø Comes with easily mount carrying case to ease installation processs
Model |
Uf – 001 / 004 |
|
Physical Characteristics |
Dimensions |
300 (L) x 78 (W) x 155 (H) mm |
Weight |
1.6kg (with battery) |
|
|
Environment |
Operating Temp |
-20°C to 55°C (-4°F to 131°F) |
Storage Temp |
-40°C to 80°C (-40°F to 176°F) |
|
Humidity |
10% to 95% |
|
Casing |
IP54 |
|
Antenna |
Support all types of antennas |
|
Battery |
18V 3000mAh @ 30dBm – 5 hours continuous reading and sending data via BT @ 25dBm – 7 hours continuous reading and sending data via BT |
|
Frequency Ranges |
902 or 928 MHz band or upon customer’s request |
|
RF power control |
30dBm |
|
Tag Air Interfaces |
EPC Class 1 Gen 2 |
|
Communication Interface |
Bluetooth ™ |
|
Reader Range |
>5cm - 20m antenna and tag dependent (control within 10cm to 2m on most applications). |
|
SID Global (Super Intelligent Device)
Established in late 2009
1300 square meters production plant
2 SMT production lines
Sold to customers from 130 countries around the globe
Main on Warehouse ,Library project and Access control
There are office on Malaysia , Bankok , Shenzhen which can support Local Support
