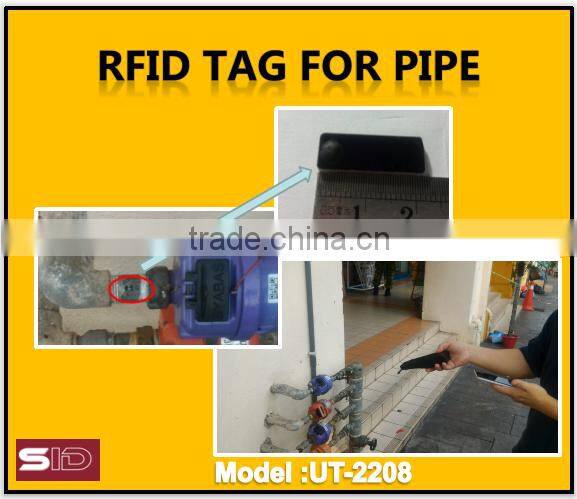

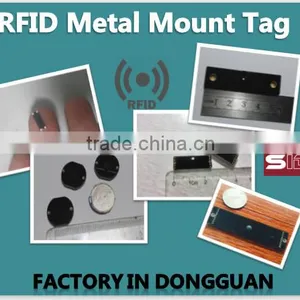

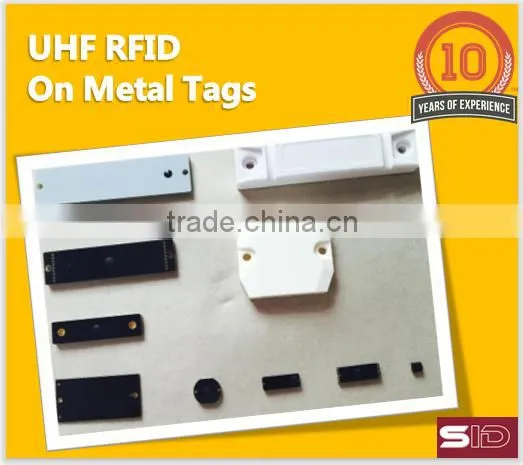

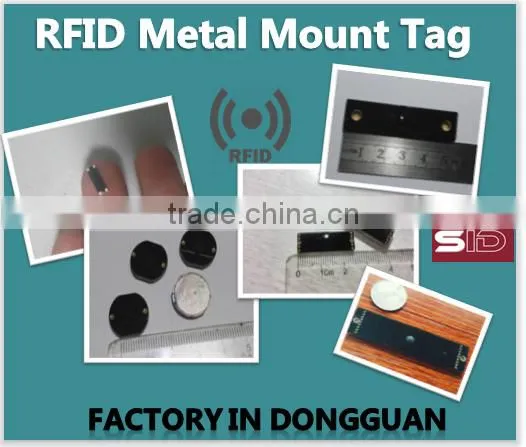

Pipe tracking RFID Tag SID-Global
Features
- Ø Support ISO18000-6C EPC Gen2
- Ø Read distance up to 4 meters
- Ø Small form factor and light weight ideal for small item tagging
- Ø Anti metal surface in anything harsh environment
Model |

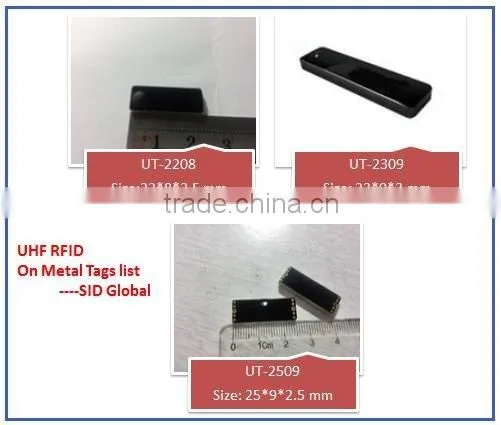

UT-2309 |
|
Physical Characteristics |
Dimensions |
22(L) x 8 (W) x 3 (H) mm |
Material |
PCB |
|
|
Environment |
Operating Temp |
-20°C to 70°C |
Storage Temp |
-40°C to 85°C |
|
Humidity |
10% to 100% |
|
Casing |
IP68 |
|
Antenna |
Polarization |
Linear |
Peak Gain |
4 dbi |
|
Beam Width |
Horizontal 3dB Beam width 6°±2°. Vertical 3dB Beam width 60°±5. |
|
VSWR Ratio |
<1.3 |
|
Memory Size |
EPC 240bits, TID 64 bits; User Memory 512 bits |
|
Frequency Ranges |
902-928 MHz |
|
Read / write cycles |
100,000 times |
|
Chip |
IMPINJ |
|
Tag Air Interfaces |
EPC Class 1 Gen 2 |
|
Read Range |
4 m @ 30dBm RF power |
|

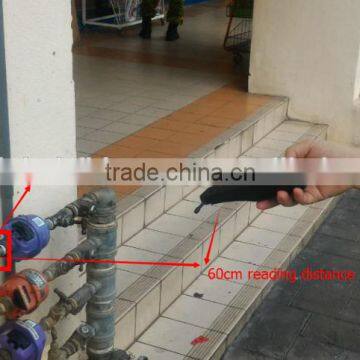

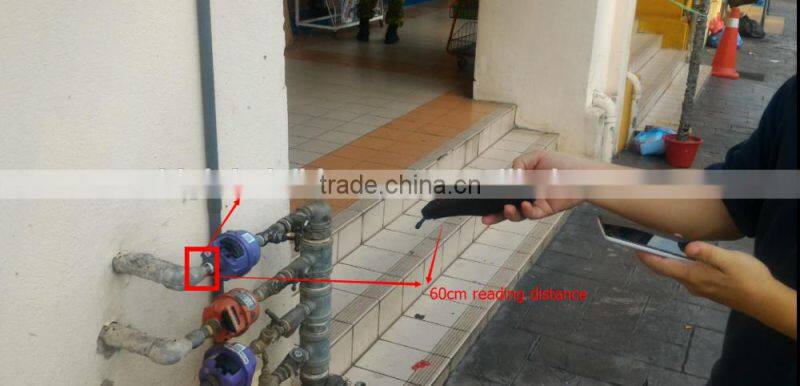

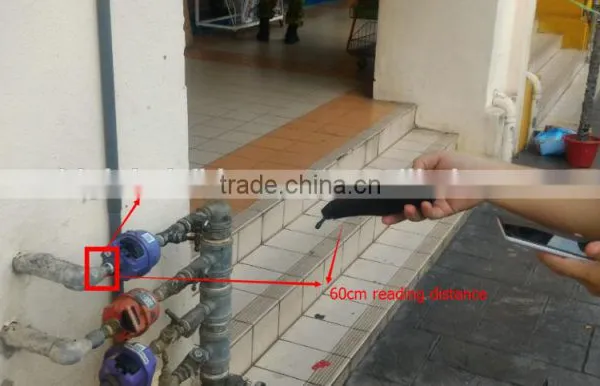

- Ø Small metal based item tracking
- Ø PCB products
- Ø Hardware tooling
- Ø Metal racking
- Ø IT asset tracking
SID Global (Super Intelligent Device)
Established in late 2009

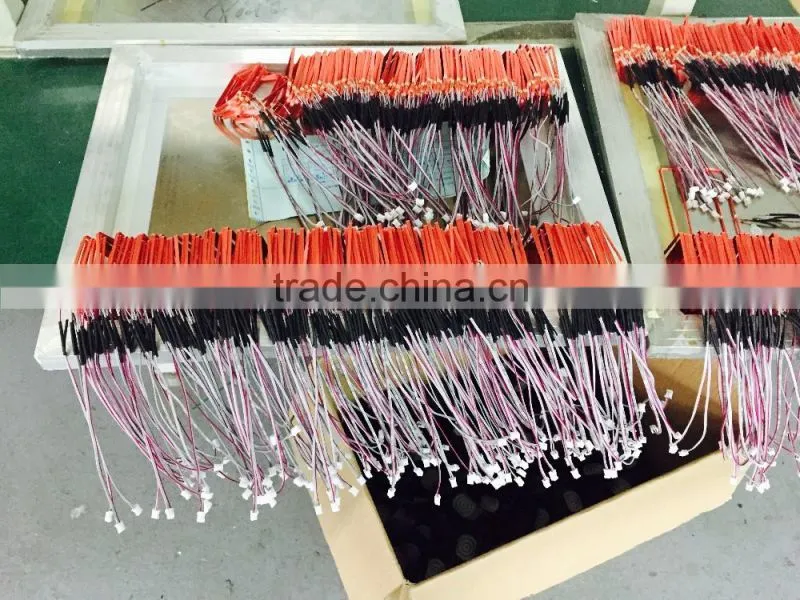

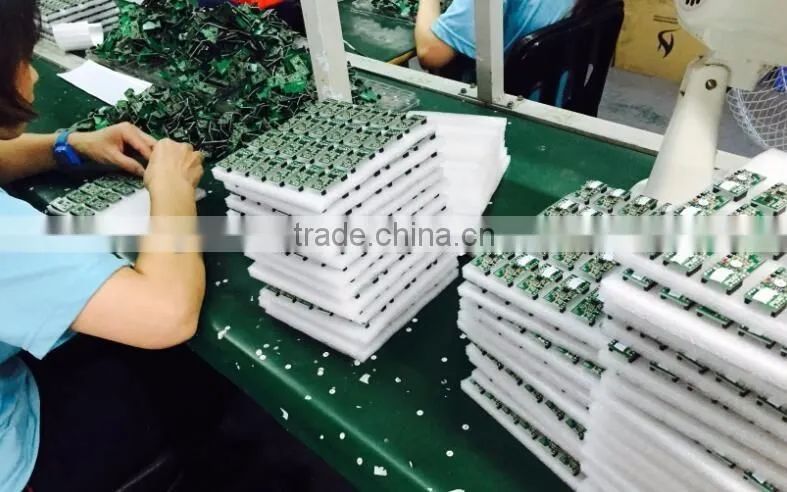

1300 square meters production plant

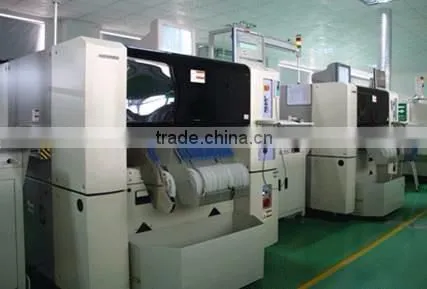

2 SMT production lines
Sold to customers from 130 countries around the globe
Main on Warehouse ,Library management project and Access control
There are office in Malaysia , Thailand and Shenzhen Which can support Local service
