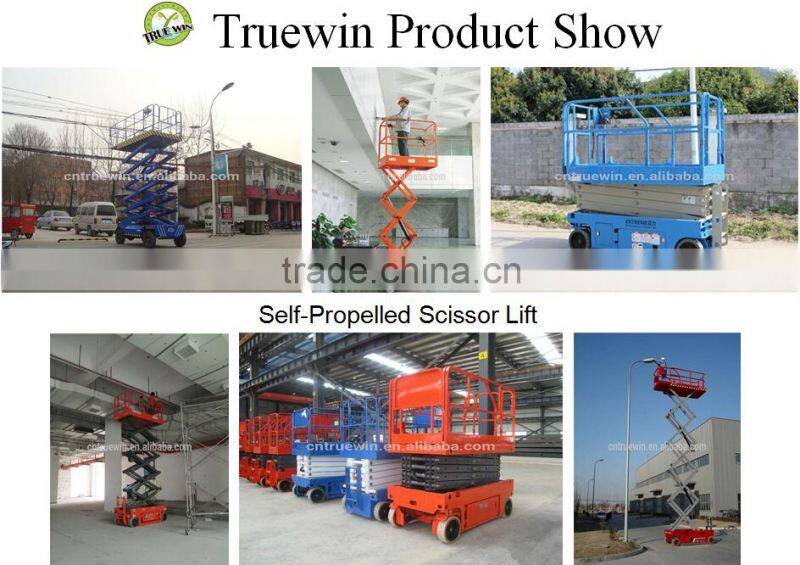

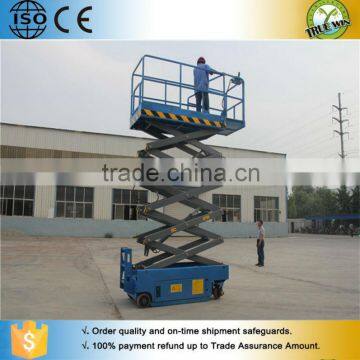

Self Propelled Scissor Lift
Product features
1,Scissor Lifting arm & bracket is made of high strength manganese steel.
2,Overload protection device as a standard issue.
3,The platform can extend to reach out a bridge to reduce loading time.
4,Wheel-based platform, easy to move and the trailer is easy to operate.
5,The multi-direction controller makes the machine flexible and reliable.
6,Solid steel structure and full use of the storage space. It can get through the doorway with cargo on the platform or carrier
7,Short charge time and long durable time of the battery.
8,Lift heights ranges from :4m(13ft.),6m(19ft.),8m(26ft.),9m(29ft.),10m(33ft.),12m(39ft),14m(46ft).
9, Platform is optional equipped with a level warning device
10,Personel can complete moving up and down ,forward, backward and turn around actions.
Models are as follows
| Type | SJY3 | SJY6 | SJY7.5 | SJY9 | SJY11 | SJY12 | |
| Max. working height | mm | 3000 | 6000 | 7500 | 9000 | 11000 | 12000 |
| Low table height | mm | 850 | 980 | 1250 | 1500 | 1600 | 1700 |
| Table size | mm | 1300×700 | 1850×880 | 1800×1000 | 1800×1000 | 2100×1150 | 2450×1350 |
| Capacity | kg | 450 | 450 | 450 | 450 | 450 | 450 |
| Up time | s | 16 | 54 | 72 | 83 | 88 | 90 |
| Power supply | V/Hz | 380/50 | 380/50 | 380/50 | 380/50 | 380/50 | 380/50 |
| Power | kw | 0.75 | 1.1 | 1.5 | 1.5 | 2.2 | 3.0 |
| Length | mm | 1450 | 2000 | 2000 | 2000 | 2250 | 2600 |
| Width | mm | 900 | 1080 | 1200 | 1200 | 1350 | 1550 |
| Height | mm | 980 | 980 | 1250 | 1500 | 1600 | 1700 |
| Deadweight | kg | 400 | 650 | 1100 | 1260 | 1380 | 1850 |
Truewin believes quality maketh faith,and faith is the only reason why Truewin can stand on the top of hydraulic equipments
Truewinners insist that quality is based on every little step,so all parts are purchased from certified parts suppliers such as Bosch,Fengfan,Fujikon.etc.
Best parts together,Best product is here.
Yes,True win!
Maintenance
A. Daily or refueling: Check the parts are good or bad Check hydraulic oil level and colour
B. Every 250hours or 3months: Change lubricating oil Check cylinders
C. Every 500hours or 6 months: Check tubes, pipes and value
D. Every 1000 hours or 1 year: Change hydraulic oil Grease rotation bearing and wear pads
E. Every 2000 hours or 2 years:Check hydraulic tank, lid and vent
F. Note: Maintain the chassis according to the Chassis’ Service manual
Shandong Truewin Construction Materials Co.,.Ltd is a modern manufacturer complex focusing on industrial hydraulic equipment & device.With 20 years experience of hydraulic quipment design and produce,Truewin has developed 42 sub models from 13 parent product lines with 3,000 productive capacity per month and growing more,11000 m² factory plant with complete production lines to guarantee all the products can be delivered to the client`s hand in time.leading the whole manufacturing industry in Shandong.Though being one of the best producers among China,Truewin never slow down to explorer farther and greater.
Yes,True win!
FAQ
Q:What are you? Trade Company or manufacturer?
A: We are both manufacturer & tradding company.
Q:What’s the advantage of your company?
A:We`re experienced manufacturer and overseas dealer,Our products have been exported to over 100 countries.An independent research team specially focusing on machinary design and production. A service team for customers will provide feedback within 24 hours.Products built with Germany and Italian technology on assembly line.
Q:Can I customise the product according to my own willing?
A:Yes,we are high quality OEM/ODM manufacturer,we can satisfy all the requests to the product.
Q:What need you know when i inquiry to you ?
A: We need to know your Max Capacity,Platform size and Lift height.
Q:What’s the Min order to your company?
A:At least 1 set of the product.,and the product you ordered will be sent in a week as long as inventory is available
Q: When the product can be delivered?
A: Commonly the lead time will be within 15 days after payment.
Related Products
Packing
To make sure every piece of product can be delivered completely and functional,all Truewin cargoes will be put through 3 steps to make sure each and every part is solid fixed .
1,Thin plastic film overed
For protecting surface,paintwork and antirust,PLASTIC FILM will be covered to all machine parts
2,Plywood case
For integrity of the machine,Truewin use 1 inch THICK PLYWOOD CASE to load all the machine parts together ,make sure all of the parts can be delivered without missing a screw.
3,Fixed cargo hold
A safe overseas shipping is based on fixed solid cargo hold,Truewin is closely connected to the customs and shipping house,each and every piece of truewin cargo can be solid fixed and better taken care of to our clients hands.
Yes,True win!
Truewin International Trading Department has gathered one of the most experienced international trading team to explorer foregin trade.For more than 20 years,Truewin has contributed not only aboundant products,but also plenty of exellent sales representatives around whole foregin trade business,Right now ,under the great leadership of President Lian,Truewin will go further and further along this glory path,Here`is a daily scene of the best 14,the future elite of Truewin.
Yes,True win!
Faithful business parterners are the most important part of Truewin of becoming TOP ONE
Together with clients from all over the world,truewin has accomplished a great success til now,yet we can never stop.
Truewin is welcoming both old and new friends,for a successful cooperation and a proud frienship .
Yes,True win!
When a great company wants to go further,Certifications are clear proofs to claim its growth,Truewin is getting becoming an expertise to build hydraulic
Yes,True win!
Wan to BUY from us ?Just CONTACT THE MOST EXPERIENCED SALES REPRESENTATIVE!
