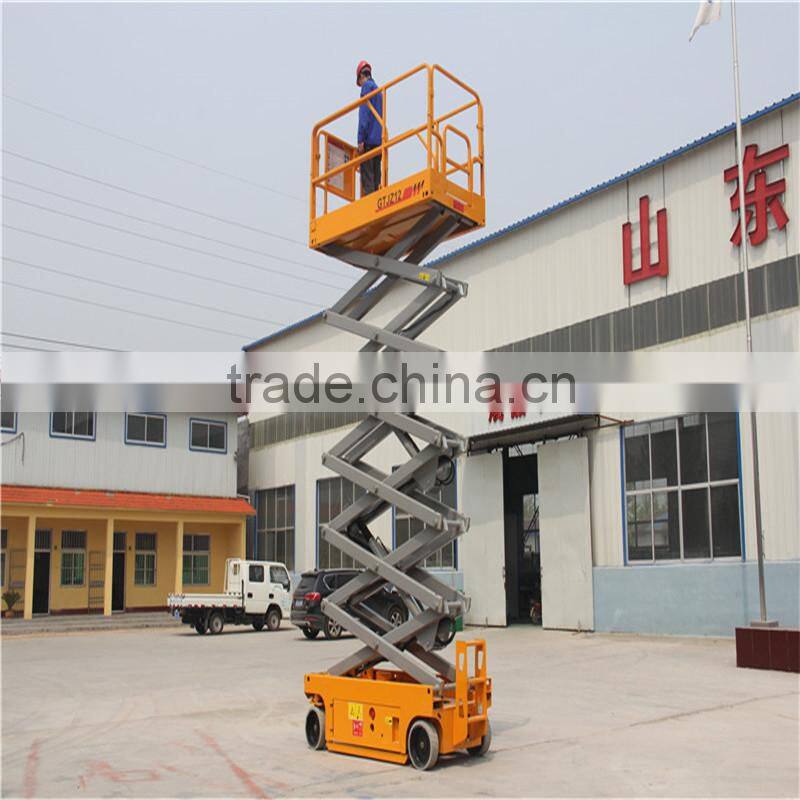

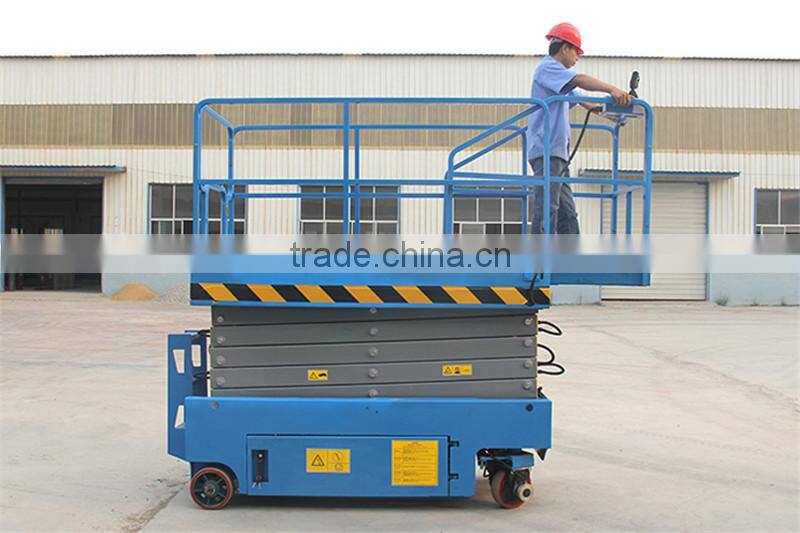

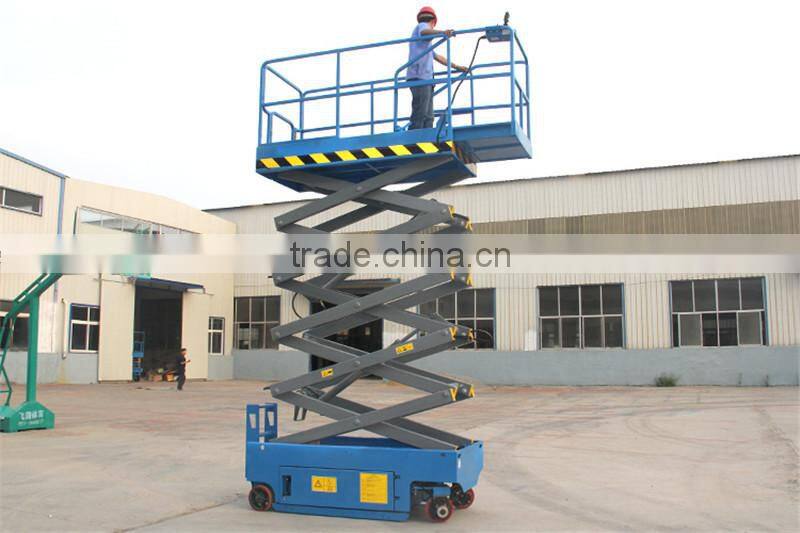

Full electric self-propelled scissor aerial lift
scissor lift platform is widely used for the equipments installations and maintenance at the following places like construction sites workshops, warehouse, granary, bus/railway stations, hotels, airports, gas station and aerial pipeline.
Our lifting Machinery with high working capacity, most spacious platforms for several people to work on, easily moved, high strength steel structures, smoothly lifting up and dropping down,easily operated few faults.
Products advantages
1. Self-propelled scissor lift platform, with automatic walking function, can be in different work condition, do not need external power supply, do not need artificial traction
2. Mobile flexible, convenient operation, lift freely, only one people can finish forward, backward, steering, fast and slow walk .
3. Especially suitable for stations, docks and airports, stadiums, large enterprise etc wider range of aerial working and it is the most ideal aerial working equipment now.
| TYPE | WLZ-1930 | WLZ-2032 | WLZ-2046 | WZL2646 | WLZ-2668 | ||
| Working height | 6.5 | 7.5 | 9.7 | 11.5m | 13.8 | ||
| Lifting height | 4.8 | 6.15 | 8M | 9.8m | 12 | ||
| Platform size(A*B) | 1.79*0.74 | 1.79*0.74 | 2.43*1.13M | 2430*1130mm | 2.92*1.65 | ||
| Dimensions(D*E*C) | 1.89*0.76*2.2 | 1.89*0.76*2.4 | 2.45*1.15*2.4M | 2.44*1.15*2.54m | 3.08*1.75*2.88 | ||
| Self-height | 1.17 | 1.25 | 1.2M | 1.39m | 1.63 | ||
| Guardrail(G) | 1.03 | 1.15 | 1.2M | 1.15m | 1.25 | ||
| Extend platform | 900 | 900 | 900MM | 900mm | 1100 | ||
| Load | 300Kg | 300Kg | 450KG | 320kg | 230Kg | ||
| Extend platform load | 90 | 90 | 90KG | 90kg | 90kg | ||
| Wheel base | 1.5 | 1.5 | 2M | 2m | 2.4 | ||
| Turn radius | 2 | 2 | 2.3M | 2.3m | 4.5m | ||
| Ground clearance | 100/20mm | 200mm | |||||
| Weight | 1400kg | 1600kg | 2250KG | 2600kg | 3500kg | ||
| Grade ability | 25% | 20% | |||||

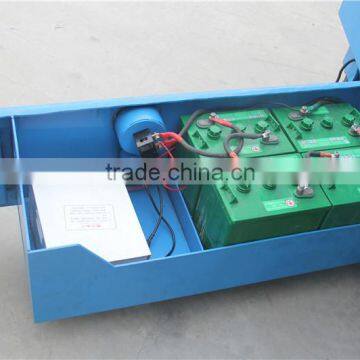

| Battery | 4pcs 6V/230AH | 8pcs 6v/215Ah | |||||

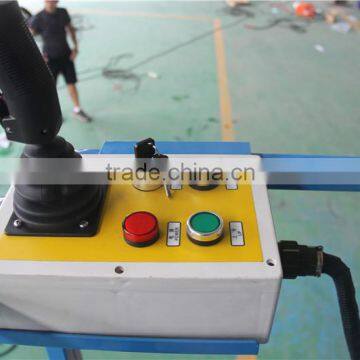

| Controller | C101 | ||||||
| System voltage | 24V | ||||||
| Tyre size | 305*100 | 305*100mm | 380*125MM 4PCS | 405*125mm 4pcs | 600*190 4pcs | ||
| Traveling speed- | stowed | 3.2km/h | |||||
| Raised or extended | 0.8km/h | ||||||
| Lifting speed | 3-5m/min | ||||||
| Charger | 24V/20-30A | 48v/50A | |||||
| Lifting motor | DC3kw/24v | 5kw/48v |
|||||
Why Choose Us
1. Provide a various kinds of scissor table lift, which could meet customer's needs.
2. We could help customer choose the right model and also provide customization.
3. All electrical elements are used world famous brand.
4. Provide timely delivery,Sales engineers are ready to solve all problem.
5. Provide spare parts, worksite installation guidance and training operation.
Team&Custermer:
Certification:
Hot sell products:
1. Presale service: Free comprehensive and detailed technology consultancy in construction sites, referential programs for construction equipment and the most suitable product program.
2. In sale service: We provide free guidance of installation and debugging and free training of operation, care and maintenance.
3. After-sale service: One year warranty service of whole machine and lifetime maintenance; regularly markets visits and free guidance of whole machine’s maintenance and reparations.
4. Quick responses: we have a complete service network, hotline(86-531-88890369) services for 24hours and assist you to solve the problem in a short time.
5. Parts supply: we have a complete parts supply network and can guarantee sufficient parts reserves and timely supply
FAQ:
Delivery Time? (From 1 week to 1 month after we receive the order)
Payments? (T/T and L/C, other kinds, pls contact with us)
MOQ? (1 set)
Trade term? (FOB/CIF to your nearest seaport)
Application field? (Construction, shipyard, industrial, airport, municipal garden or others)
