SJPT self propelled scissor lift
scissor lift platform is widely used for the equipments installations and maintenance at the following places like construction sites workshops, warehouse, granary, bus/railway stations, hotels, airports, gas station and aerial pipeline.
Our lifting Machinery with high working capacity, most spacious platforms for several people to work on, easily moved, high strength steel structures, smoothly lifting up and dropping down,easily operated few faults.
Products advantages
1. Self-propelled scissor lift platform, with automatic walking function, can be in different work condition, do not need external power supply, do not need artificial traction
2. Mobile flexible, convenient operation, lift freely, only one people can finish forward, backward, steering, fast and slow walk .
3. Especially suitable for stations, docks and airports, stadiums, large enterprise etc wider range of aerial working and it is the most ideal aerial working equipment now.
| TYPE | WLZ-1930 | WLZ-2032 | WLZ-2046 | WZL2646 | WLZ-2668 | ||
| Working height | 6.5 | 7.5 | 9.7 | 11.5m | 13.8 | ||
| Lifting height | 4.8 | 6.15 | 8M | 9.8m | 12 | ||
| Platform size(A*B) | 1.79*0.74 | 1.79*0.74 | 2.43*1.13M | 2430*1130mm | 2.92*1.65 | ||
| Dimensions(D*E*C) | 1.89*0.76*2.2 | 1.89*0.76*2.4 | 2.45*1.15*2.4M | 2.44*1.15*2.54m | 3.08*1.75*2.88 | ||
| Self-height | 1.17 | 1.25 | 1.2M | 1.39m | 1.63 | ||
| Guardrail(G) | 1.03 | 1.15 | 1.2M | 1.15m | 1.25 | ||
| Extend platform | 900 | 900 | 900MM | 900mm | 1100 | ||
| Load | 300Kg | 300Kg | 450KG | 320kg | 230Kg | ||
| Extend platform load | 90 | 90 | 90KG | 90kg | 90kg | ||
| Wheel base | 1.5 | 1.5 | 2M | 2m | 2.4 | ||
| Turn radius | 2 | 2 | 2.3M | 2.3m | 4.5m | ||
| Ground clearance | 100/20mm | 200mm | |||||
| Weight | 1400kg | 1600kg | 2250KG | 2600kg | 3500kg | ||
| Grade ability | 25% | 20% | |||||
| Battery | 4pcs 6V/230AH | 8pcs 6v/215Ah | |||||
| Controller | C101 | ||||||
| System voltage | 24V | ||||||
| Tyre size | 305*100 | 305*100mm | 380*125MM 4PCS | 405*125mm 4pcs | 600*190 4pcs | ||
| Traveling speed- | stowed | 3.2km/h | |||||
| Raised or extended | 0.8km/h | ||||||
| Lifting speed | 3-5m/min | ||||||
| Charger | 24V/20-30A | 48v/50A | |||||
| Lifting motor | DC3kw/24v | 5kw/48v |
|||||
Quiet and convenient devices
The scissor lift takes storage battery as the power source, and makes low noise and no emissionwhen working, so it can be used indoor occasions, such as workshops, warehouse, hotels, etc
Scissor structure

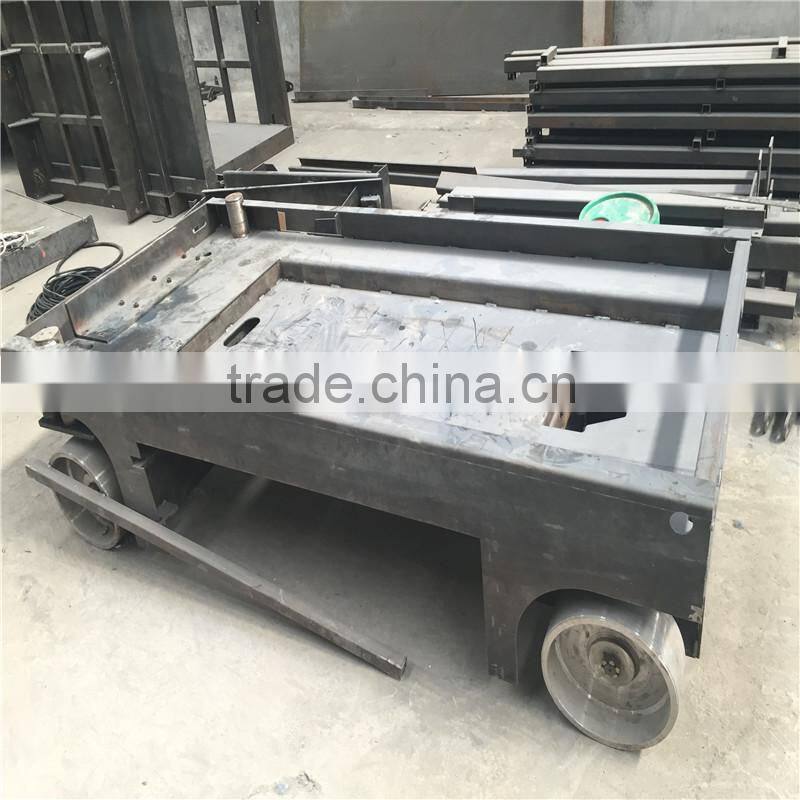

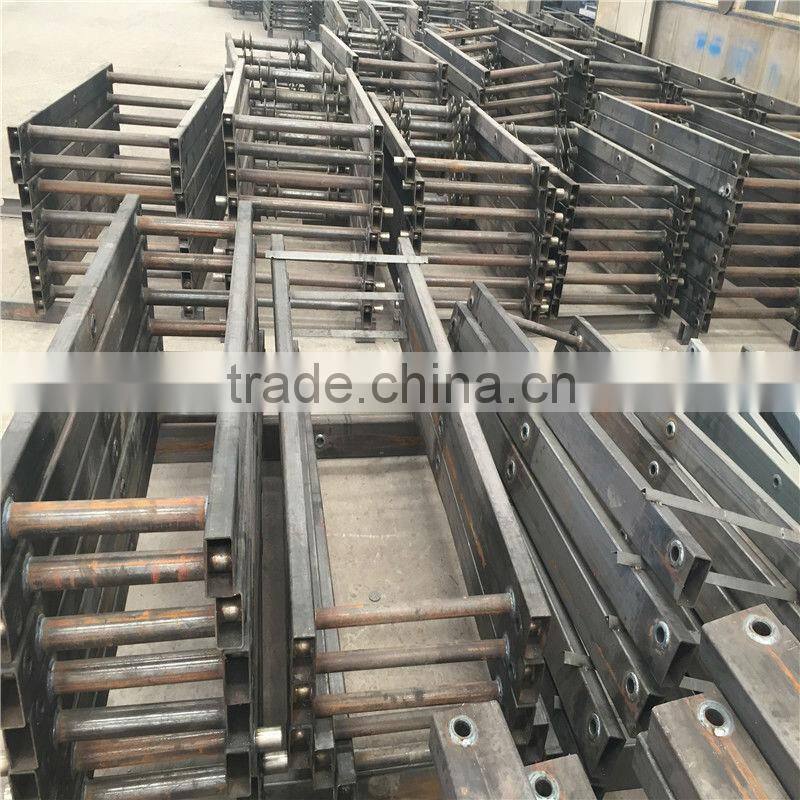

The scissor structure are made by advanced CNC machine, which make every lift parts extremely precise and can cut max 20 mm thickness steel structure and error will be less than three-thousandths
of a millimetre.
Larger working space
The platform can extend on one side, which can enlarge the working space.
Flexible
The steering wheel can make a 90°turn in situ, can run in both high and low speeds, and can used in small space.
Easy understanding control box-on the platform:
Each control button has the instruction mark, the user can understand how it works and easy to
operate.
Team&Custermer:
Certification:
Hot sell products:
1. Presale service: Free comprehensive and detailed technology consultancy in construction sites, referential programs for construction equipment and the most suitable product program.
2. In sale service: We provide free guidance of installation and debugging and free training of operation, care and maintenance.
3. After-sale service: One year warranty service of whole machine and lifetime maintenance; regularly markets visits and free guidance of whole machine’s maintenance and reparations.
4. Quick responses: we have a complete service network, hotline(86-531-88890369) services for 24hours and assist you to solve the problem in a short time.
5. Parts supply: we have a complete parts supply network and can guarantee sufficient parts reserves and timely supply
FAQ:
Delivery Time? (From 1 week to 1 month after we receive the order)
Payments? (T/T and L/C, other kinds, pls contact with us)
MOQ? (1 set)
Trade term? (FOB/CIF to your nearest seaport)
Application field? (Construction, shipyard, industrial, airport, municipal garden or others)
