Specifications
It is suitable for places involved in air pollution like smoke, peculiar smell, dust, poisonous and harmful gas.Industrial Soldering Fume Exhauster DX1001

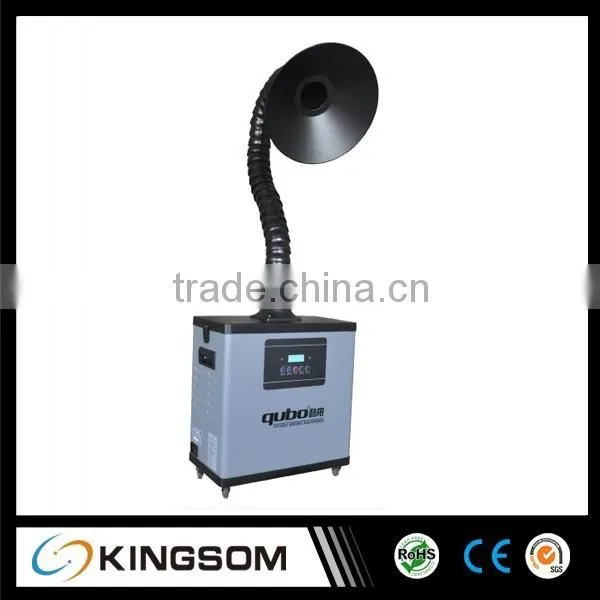

DX1001 Smog Purification Equipment
DX1001 is the filtering system designed by our company especially for electronic soldering tin, tin-furnace immersion smog treatment, widely used for electronic appliances and chemical experiments. Machine body is light and handy, easily for movement and can be used upon simple installation.
Main features of smog absorber:
1.Integrated body design, structured with metal framework and processed with electrostatic spraying for premium cold-rolled steel sheet, is corrosion-resistant, environment-friendly and durable.
Original noise reduction structure design enables it to work more quietly and create a more tranquil and pleasant environment.
Unique modeling curve design of original “air inlet flange” better accords with fluid mechanics principle (A patent application has been filed).
Microcomputer intelligent control and digital display keep you informed of the use condition all the time.
Really effective intelligent “filter element blockage alarm” function gives an acousto-optic alarm immediately upon filter element blockage.
Available for remote operation; stepless speed regulation for you to regulate air volume and suction force arbitrarily without the necessity of bending over and lowering your head.
Small, easy to use and install; standard castor for convenient and flexible movement.
2.Four-stage purification design: filtering step by step enables harmful smoke to be better purified. Even for objects at least 8 times smaller than PM2.5, the purification rate can reach up to 99.97%.
Active carbon filter element with catalyst can absorb multiple substances that exist in the air to be purified and are with foreign odor, toxic and harmful.
Modular design for protection layer by layer: Independent replacement of primary, medium and high-efficiency filter elements enables longer service life of filter element and lower use cost.
Energy conservation and environmental protection: Built-in circular initiative filtering method can prevent indoor cold air/warm air from flowing outside without destroying temperature and humidity environment in the operation section.
3.This product has the 1.4m universal smoke suction arm, which can be positioned and oriented arbitrarily (its length may be regulated according to customer requirements, without the support of external force). (A patent application has been filed.)
Original square-shaped smoke hood, uniquely structured in accordance with aerodynamics principle, has larger smoke suction area and better efficiency. (A patent application has been filed.)
Easy installation and convenient use without the necessity of laying pipes otherwise.
4.Adopt DC brushless motor that has stable performance and long service life. Low noise, high efficiency, low energy consumption, zero maintenance and zero consumable.
The wind wheel, designed in vortex backward type, adopts special alloy material that could effectively prevent itself from being corroded. Unique dynamic balance correction technology enables it to operate more stably and reliably, with higher wind suction volume. (A patent application has been filed.)
5.CE and PONY certified, safe and reliable.
Designed according to standards: Indoor Air Quality Standard, GB21551.1- 2008 and GB/T 18801.
Awarded national appearance design patent and the overall structure utility model patent. No counterfeiting is allowed.
Parameters:
Air infelt interface |
Input voltage |
Power |
Filtering effect |
Noise |
System flow |
Overall dimension |
Weight |
φ75mm |
AC 110-220V |
80W |
0.3μm99.97% |
<55dB |
235m³/h |
425X250X410 |
12Kg |
Optional Accessories:
Name |
Remarks |
Pictures |

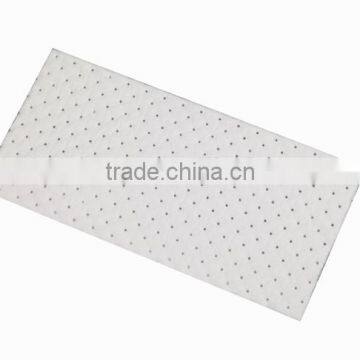

Pre-filter |
Mainly filtering large particles |
|

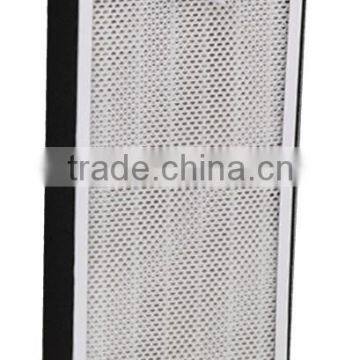

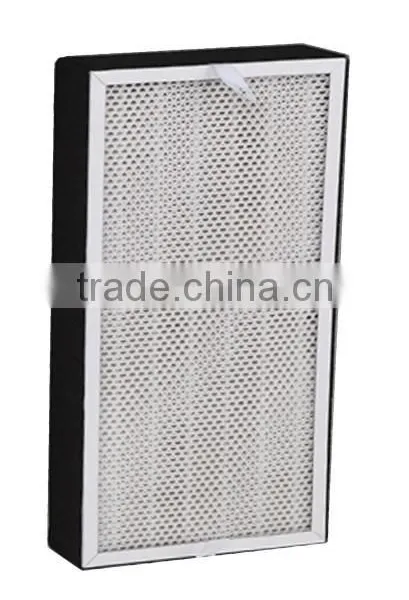

Middle Filter |
PP medium efficiency filter, used for filtering small particles |
|

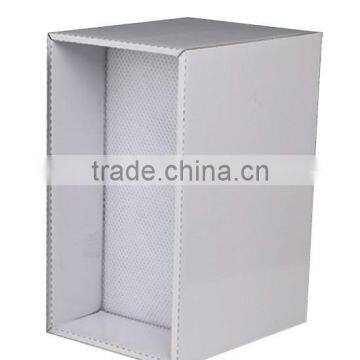

Main Filter |
Used for filtering the soldering fume, 0.3um particles, and other harmful gases |
|
Bamboo joint pipe |
Universal positioning, regulation and small adjustment of length |
|
Aluminum alloy smoke suction hook |
Reduce the external pneumatic impact is absorbed by the gas fumes |
|
Silica gel smoke hood |
|
|

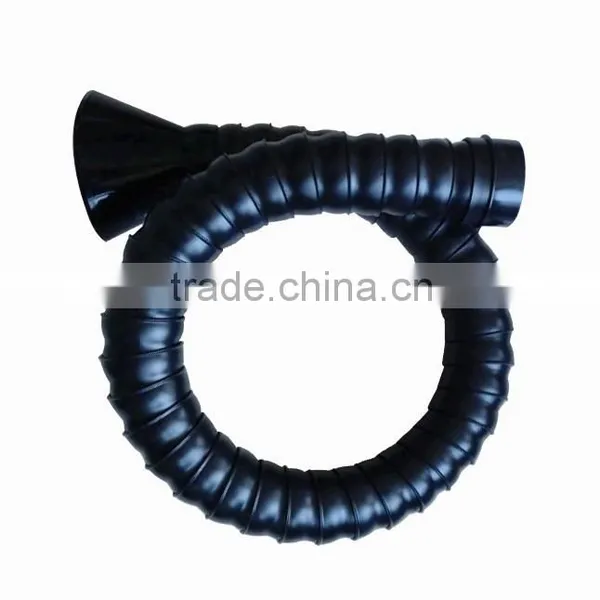

Winding Duct |
Its dimension, length and direction can be adjusted (Supporting upholder is not needed with the maximum length of 1.5m). |
|
Corrugated Duct |
The maximum prolonged length can 4 times. It can be lengthened and bent freely. |
|
Bench Top Fixing Mount for Soft & Hard Ducts |
Fix it on the working bench top. Soft duct is connected to the machine air inlet. Hard duct is directly inserted onto the fixing mount. |
|
