BCSJ20 dry mortar production line
Description of dry mortar production line
1.Conveying, storing and dosing of bulk raw materials
Depending on the product parcel size and bulk density, we use differential conveying methods to bring materials up to the top of the tower. Implements like link joint bucket elevators can be used for bulk materials with big parcel size and bulk density. Pneumatic conveying systems are preferred for materials with small parcel size and good fluidity. Bag dischargers are available when the raw materials are in bags. The raw materials are kept in segmented silos, which can assist in creating a compact plant layout. The raw materials are dosed accurately by different dosing methods depending on product characteristics. Screw and macro-magnetic conveyances as well as a series of valves are used to ensure precise dosing. We also use ultra-fine dosing methods for high precision needs.
2.weighing and mixing
We have single, twin and multiple hopers available to satisfy the need for weighing accuracy and capability. We use gravity ploughshare mixers that are specially designed to meet customers' demands for the fast, precision mixing of components with wide ranging proportions, densities, structures and flow characteristics. The mixers discharge materials quickly and simply, with no difficult to clean dead spots.
♦The rotation speed of reducer drives the shaft, with the lack of gravity, the existence of material particle size, differences in the
proportion of poor is ignored in the mixing process. Vigorous mixing motion shortened the mixing time, faster, more efficient.
♦Closed operation, reliable operation, easy maintenance.
♦A large door device with self-locking, discharging speed.
♦A detachable manganese steel wear-resistant blades extend the life of the mixer.
♦Weighing system with international brands sensor.
3.Delivery of the products
Systems can be equipped with different modes to suit product preferences. Valve packers, open-mouth packers, conveyors and pelletizing devices can all be connected and integrated in accord with specific market needs. Whether you prefer small bags, big bags, bags stacked on wooden pallets or bulk deliveries, we can deliveron all your needs.
4.Control system
Superior product quality and increased productivity are dependent on the control system. Our multimodule control system acquires and processes information from the batch plant system and sends it to a data storage unit. Plant personnel depend on our control system for reports, analsis,trends,quality analysis,tracking and additional monitoring information.
Using wellknown brand of piston air compressor or screw compressor, filter, gas tank. The cylinders of pneumatic actuator, butterfly
valve are all used well-know brand pneumatic components. Guarantees the air system stable and reliable movement.
Dry mortar production line technical parameters
Structure model |
Device model |
Mixer Model |
Productivity(t/h) |
Annual production (10000t) |
Turreted |
BCSJ20 |
WZ—4 |
20 |
10 |
BCSJ30 |
WZ—6 |
30 |
15 |
|
BCSJ40 |
WZ—8 |
40 |
20 |
|
BCSJ50 |
WZ—10 |
50 |
25 |
|
BCSJ60 |
WZ—12 |
60 |
30 |
|
BCSJ70 |
WZ—15 |
70 |
40 |
Good pre-sales and after-sales service
Absorb the advantage, creat the bright future.Implementing"credit, win-win" managing method, staying with quality, developing with technology and getting houors from service, our products have good market and be well-known all over China. Our company was honoured with "high-tech enterprise", "creditable company" and "glory for after-sale service" and so on.

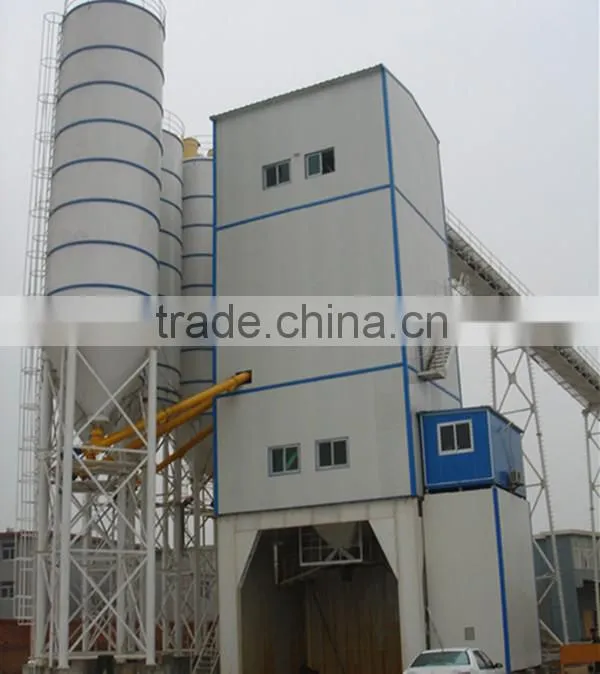

Dry mortar production line pictures:

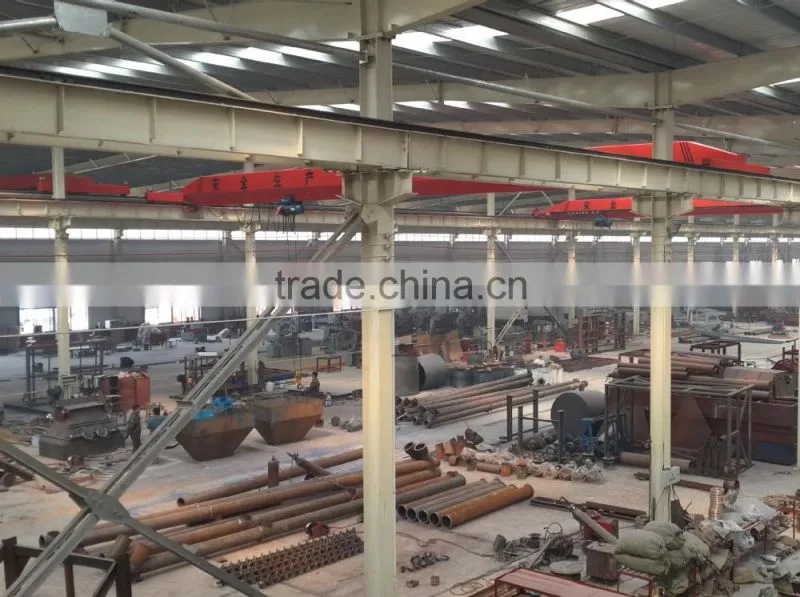

Our factory
Certification
Contace me
