Hand Stacker-SFH2016E
Negotiable
/ Set
1 Set(Min.Order)
- 1000 Set / Sets per Month
- shanggai
- T/T Credit Card
You May Like
Product Details
| Condition | New | Place of Origin | Shanghai, China | |
| Brand Name | cheuklift | Model Number | SFH2016E | |
| Type | Manual Pallet Truck | Power Souce | Other | |
| Rated Loading Capacity | 2000 | Max. Lifting Height | 1600 | |
| Fork Length | 900 Mm | |||
| Fork Width | Fork max outer width 710MM | Overall Dimensions | 1412*764*2023 | |
| Certification | CE/ISO9001 | After-sales Service Provided | No overseas service provided |
Product Description

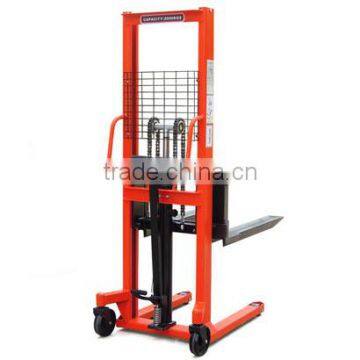

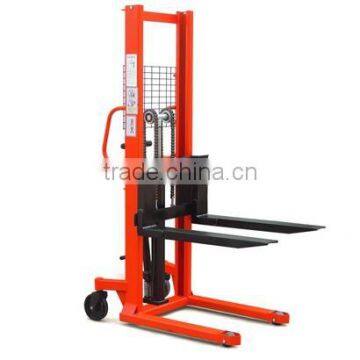

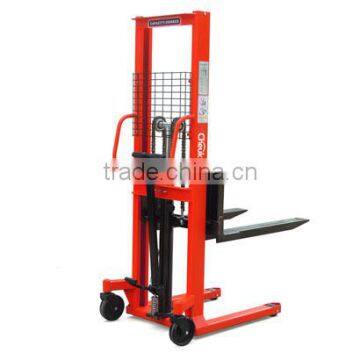

Hand stacker model SFH2016E lifting goods by hydraulic, is a light material handling equipment.
Compact structure,good looking,high performance,flexible and safe.
Ideal for loading,stacking and transporting goods at warehouse,supermarket,harbor,station and factory.
Work easily and efficiently.
| Model | unit | SFH2016E | |
| Rated capacity Q | kg | 2000 | |
| Fork lowered height H1 | mm | 90 | |
| Max lifting heightH2 | mm | 1600 | |
| Fork length L1 | mm | 900 | |
| Fork load center distance L2 | mm | 400 | |
| Fork max outer width W1 | mm | 710 | |
| Max lifting speed | mm/times | 14 | |
| Falling speed | manual control | ||
| Overall dismension | Length L | mm | 1412 |
| Width W | mm | 764 | |
| Height H | mm | 2023 | |
| Wheel | Front wheel D1 | mm | 80 |
| Rear wheel D2 | mm | 180 | |
| Min ground clearance | mm | 23 | |
| Min turning radius R | mm | 1290 | |
| N.W | kg | 180 | |
Remarks:

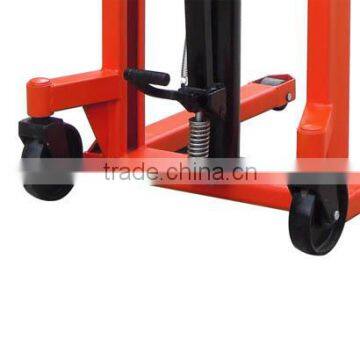

1,when the vehicle is in the state of no load or light loaded(less than 150kg),goods can be lifted by foot lever.
2,We have the right to modify the product and improve the technology at any moment without any notice.
