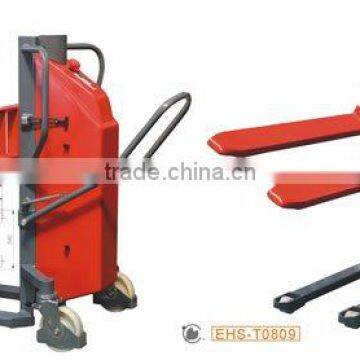

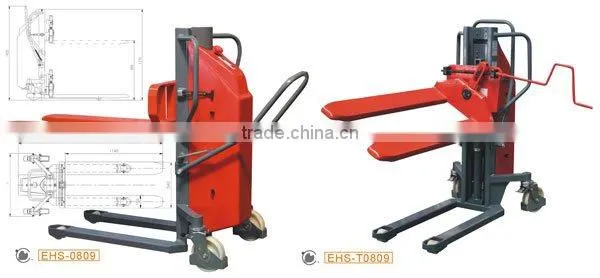

Semi-electric Stacker EHS 0809/EHS-T 0809

Semi-electric Stacker EHS 0809/EHS-T 0809 thumbnail-1
Semi-electric Stacker EHS 0809/EHS-T 0809 photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Shanghai, China
Brand Name:
Cheuk's
Contact Supplier Request Quote Chat Now
Shanghai Cheuklift Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Place of Origin Shanghai, China
Brand Name Cheuk's
Model Number EHS 0809/EHS-T 0809
Type Other, Stacker
Power Souce AC Motor
Rated Loading Capacity 800KG
Max. Lifting Height 1420mm
Min. Lifting Height 87mm
Fork Length 540mm
Fork Width 1140mm
Overall Dimensions Pls check
Certification CE ISO
After-sales Service Provided No overseas service provided

The Product Intro of Semi electric stacker EHS 0809/EHS-T 0809



Manual high lift truck with electric lifting(later"truck"only) is designed for the transport, handling and stacking of material which is placed on pallets. It enables to offtake and to base pallets to the maximum lifting height of the truck by using electro hydraulic aggregate. It decreases physical strain of person manipulating with material.



The Specification of Semi electric stacker EHS 0809/EHS-T 0809

MODEL



EHS 0809/EHS-T 0809

Capacity

 kg 800

Lengthity

 mm 1690

Width

 mm 730

Height

 mm 1420

Length of the forks

 mm 1140

Width of the fork

 mm 150

Min. height over the floor

 mm 87

Forks width

 mm 540

Spacing between the forks

 mm 240

Truck weight

 kg 271

Lifting height

 mm 900

Bearing surface of the forks

 mm 1140x540

Forks tilting angle

 ° 20

Lifting speed without load

 mm ≥0.07

Lifting speed with load

 mm ≥0.05

Lowering speed with a load

   controllable

Clearance above floor

 mm 30

Traction Accu. battery

   2x12V/60Ah

Electro hydraulic aggregate

   12V,700W
