Home > Manufacturing & Processing Machinery > Drilling Rig > Mine Drilling Rig > API XJ250 Workover Rig for Oil Drilling

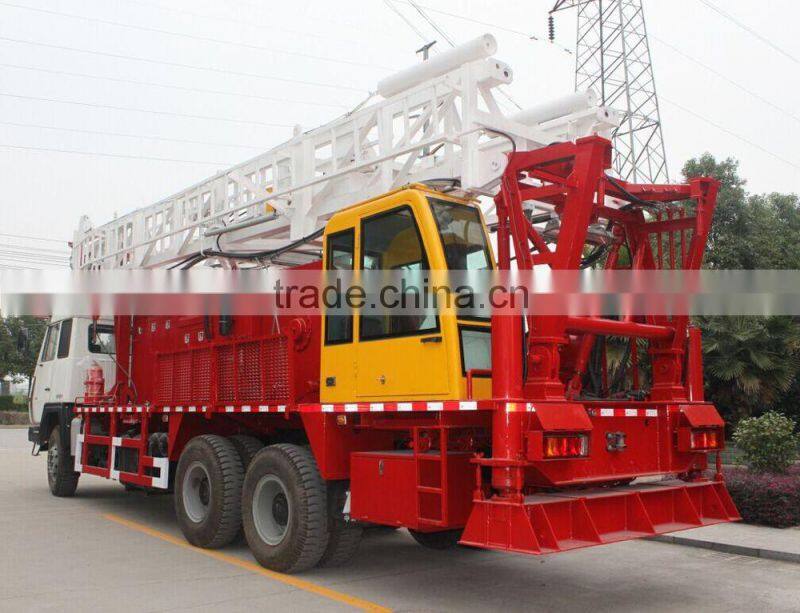

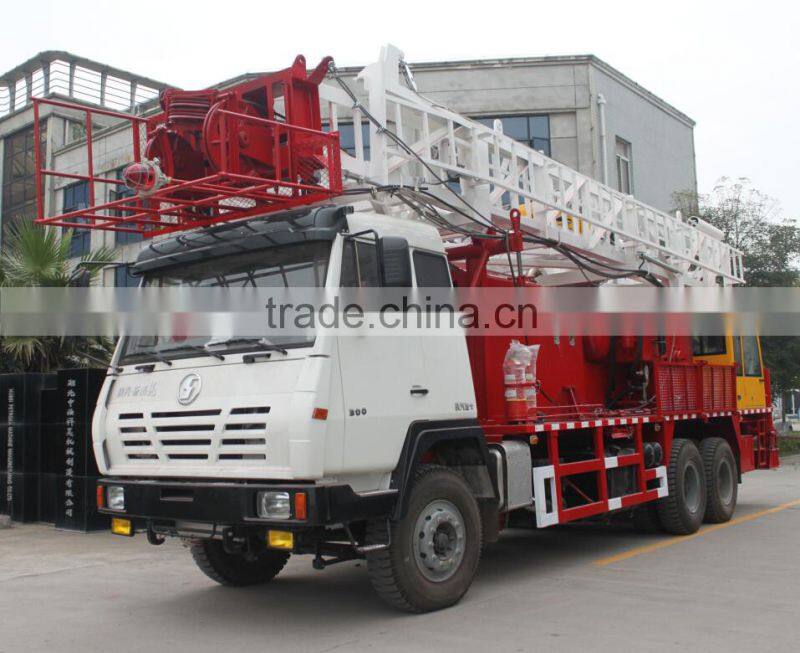

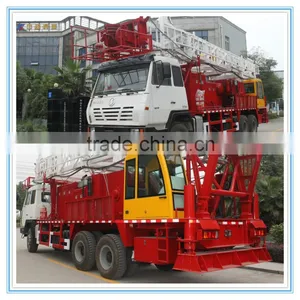

API XJ250 Workover Rig for Oil Drilling
US$ 200,000 - 500,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Rotary Drilling Rig
Power Type:
Diesel
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai or other port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
250 Workover Rig With Serivce Depth 3200mUS$ 340,000 - 500,000MOQ: 1 Set -
60t 350hp Workover Rig XJ350 for OilfieldNegotiableMOQ: 1 Set
-
250HP Workover Drilling Rig( XJ250)US$ 200,000 - 500,000MOQ: 1 Set
-
XJ250(40t) Workover RigUS$ 200,000 - 500,000MOQ: 1 Set
-
Angle GearboxUS$ 10 - 200MOQ: 1 Set
Condition
New
Type
Rotary Drilling Rig
Power Type
Diesel
Place of Origin
Hubei, China
Brand Name
PetroKH
Model Number
XJ250
Usage
Other, Oil
Power(W)
250HP
Dimension(L*W*H)
15.4m*3m*3.85m(16m sigle stage mast)
Weight
29400KG
Certification
ISO API
Warranty
365days
After-sales Service Provided
Overseas service center available
API XJ250 Workover Rig for Oil Drilling
- Service depth: 3200m(27/8 EUE tubing)
- Workover depth: 2000m(27/8 DP)
- Nominal hook load: 400kN
- Max. static load: 675kN
- Drawworks horsepower: 250hp
- Traveling system: 3×4
- Drive type, carrier: 6×6
- Dia., wireline: φ22mm
- Traveling dimensions:15.4m×3m×3.85m(16m single stage mast)
- 12m×3m×4.1m(18m double stage mast)
- 13.4m×3m×4.1m(21m double stage mast)
- Max. speed: 60km/h(Limiting speed: 45km/h)
- Min. turning radius: 14m
- Traveling weight: 29400kg(Total weight varies according to different configurations)
- Ambient temperature: -29 ~ +50 ℃
XJ250 workover rig contains a single drum drawworks and a hydraulic lifting double (or single) derrick. The design is economic that using GE engine and Allison engine and Allison hydraulic transmission box. The whole machine has simple structure, fast removement, on-site installation
and maintenance is very convenient .
We can offer the assembly and spare parts fro XJ250--XJ750.
