Home > Products > Workover rig > 250HP Workover Drilling Rig( XJ250)
250HP Workover Drilling Rig( XJ250)
- 10 Set / Sets per Month
- Shanghai or other port
- T/T
You May Like
Product Details
| Condition | New | Type | Rotary Drilling Rig | |
| Power Type | Diesel | Power(W) | 250HP | |
| Place of Origin | Hubei, China | Brand Name | PetroKH | |
| Model Number | XJ250 | Dimension(L*W*H) | 15.4m*3m*3.85m(16m sigle stage mast) | |
| Weight | 29400kg | Certification | ISO9001 API | |
| Warranty | 365days | After-sales Service Provided | Overseas service center available |
Product Description

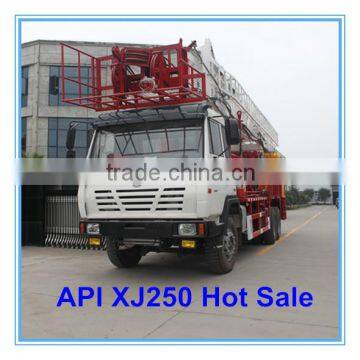

250HP Workover Drilling Rig XJ250
- Service depth: 3200m(27/8 EUE tubing)
- Workover depth: 2000m(27/8 DP)
- Nominal hook load: 400kN
- Max. static load: 675kN
- Drawworks horsepower: 250hp
- Traveling system: 3×4
- Drive type, carrier: 6×6
- Dia., wireline: φ22mm
- Traveling dimensions:15.4m×3m×3.85m(16m single stage mast)
- 12m×3m×4.1m(18m double stage mast)
- 13.4m×3m×4.1m(21m double stage mast)
- Max. speed: 60km/h(Limiting speed: 45km/h)
- Min. turning radius: 14m
- Traveling weight: 29400kg(Total weight varies according to different configurations)
- Ambient temperature: -29 ~ +50 ℃
XJ250 workover rig contains a single drum drawworks and a hydraulic lifting double (or single) derrick. The design is economic that using GE engine and Allison engine and Allison hydraulic transmission box. The whole machine has simple structure, fast removement, on-site installation
and maintenance is very convenient .
We can offer the assembly and spare parts fro XJ250--XJ750.
