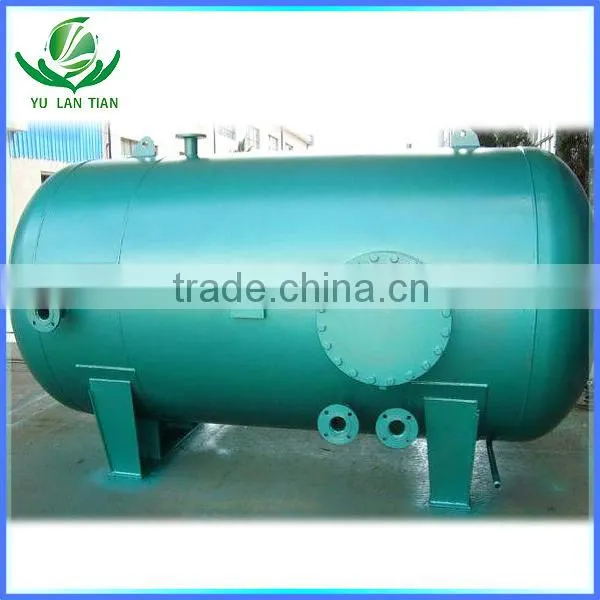

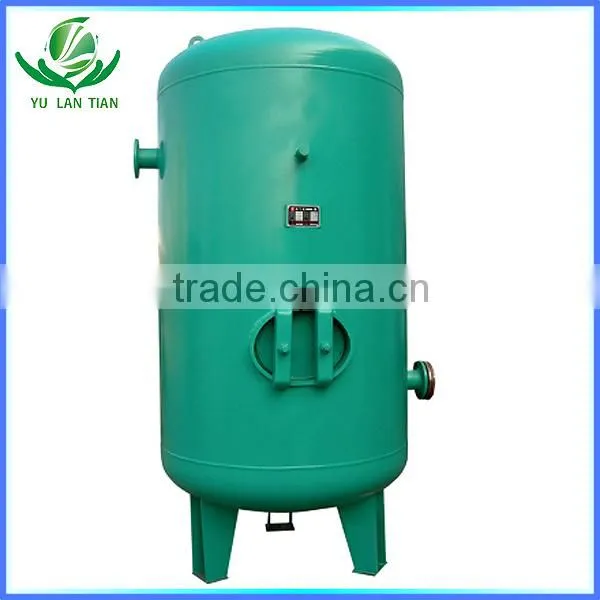

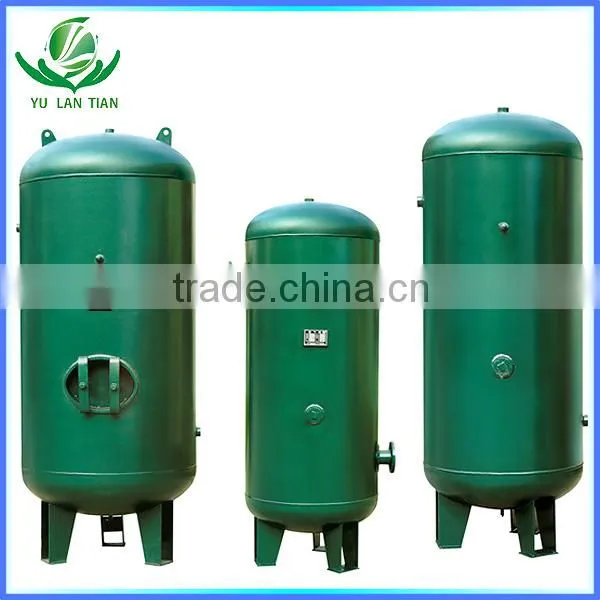

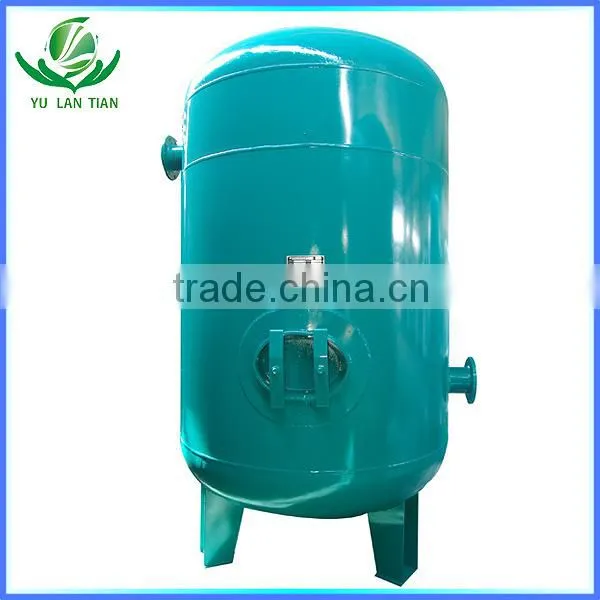

compressed air storage tank pressure vessel with buffering and storage function
| compressed air storage tank pressure vessel |
Basic knowledge: air tank used to store gas equipment. At the same time, the effect was stable system pressure. According to the reservoir pressure difference can be divided into high pressure air tank, low-pressure gasholder, atmospheric pressure air tank. According to the use of different metal materials are divided into: carbon steel, low alloy steel storage tanks store jar, stainless steel storage tanks. According to the pressure can be divided into: low-pressure gasholder, medium pressure storage tanks, high pressure air tank.
air tank (pressure vessel) generally consists of cylinder, head, flange, takeover, sealing components and parts and components such as bearings. In addition, also equipped with a safety device, meter and the internal parts of different production process.
air tank after the installation of air compressor, not only can store compressed air, reduce the compressor exhaust pressure pulsation, discontinuous, realize the balance of gas and fuel gas, and can reduce the temperature of the compressed air, reduce the load filter and desiccant.
air tank are mainly buffering and storage function, make the air entering the workshop solid smooth input! Reduce the flow pulsation of piston type air compressor discharge, improve the continuity of output flow and pressure stability, further precipitation separation of moisture in the compressed air and oil, to ensure continuous supply enough air.
Why use air tank: Water - generally more than 65%, the relative humidity in the atmosphere after condensing, namely become wet saturated air, and with a lot of liquid droplets, they are the root cause of equipment, pipes and valves corrosion, freezing in winter will also block the pore channels in the pneumatic system. It is worth noting that: even the pure saturated air separation in the net, with lower temperature, there will still be condensed water analysis file, about every 10 ℃, the saturated water content will decline 50%, that is half of the water vapor into liquid water drops (see table 1). So in the compressed air system used multistage separation filter unit or compressed air pretreatment into certain relative humidity in the dry gas is necessary;

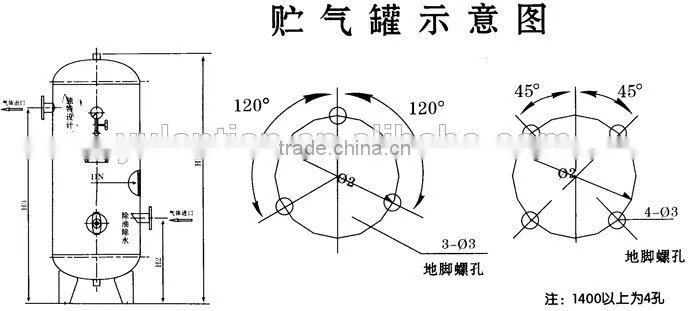

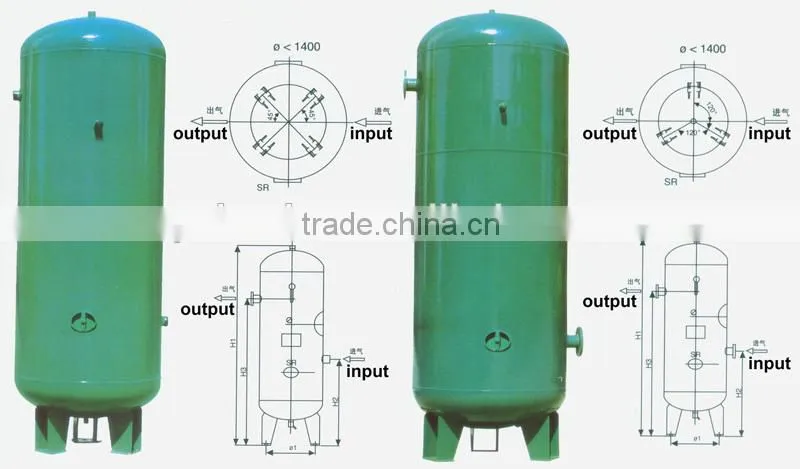

| Specifications of compressed air storage tank pressure vessel |
Serial number |
specifications | Design Temperature | Overall Height | Inner Diameter | Air Inlet | Air Outlet | Support | Safety Valve Interface | Drain Valve Interface | |||||
| Volume/Working Pressure | °C | H1 | Φ | H2 | DN | Thread type | H3 | DN | Thread type | D | d | |||
| 1 | 0.3/0.8 | 110 | 1594 | 550 | 642 | 65 | Rp1½ | 1242 | 65 | Rp1½ | 400 | 20 | Rp3/4 | R1/2 |
| 2 | 0.3/1.0 | 1594 | 642 | 1242 | ||||||||||
| 3 | 0.3/1.3 | 1598 | 644 | 1244 | ||||||||||
| 4 | 0.3/1.6 | 1598 | 644 | 1244 | ||||||||||
| 5 | 0.6/0.8 | 110 | 1905 | 700 | 680 | 65 | Rp1½ | 1550 | 65 | Rp1½ | 490 | 24 | Rp3/4 | R1/2 |
| 6 | 0.6/1.0 | 1907 | 681 | 1551 | ||||||||||
| 7 | 0.6/1.3 | 1909 | 682 | 1552 | ||||||||||
| 8 | 0.6/1.6 | 1907 | 681 | 1551 | ||||||||||
| 9 | 1.0/0.8 | 110 | 2365 | 800 | 730 | 80 | Rp1½ | 1960 | 80 | Rp1½ | 560 | 24 | Rp1 | R1/2 |
| 10 | 1.0/1.0 | 2367 | 731 | 1961 | ||||||||||
| 11 | 1.0/1.3 | 2367 | 731 | 1961 | ||||||||||
| 12 | 1.0/1.6 | 2367 | 731 | 1961 | ||||||||||
| 13 | 1.5/0.8 | 110 | 2727 | 900 | 736 | 80 | Rp2" | 2296 | 80 | Rp2" | 630 | 24 | Rp1 | R3/4 |
| 14 | 1.5/1.0 | 2729 | 737 | 2297 | ||||||||||
| 15 | 1.5/1.3 | 2727 | 736 | 2296 | ||||||||||
| 16 | 1.5/1.6 | 2731 | 738 | 2298 | ||||||||||
| 17 | 2.0/0.8 | 110 | 2782 | 1000 | 761 | 80 | Rp2" | 2321 | 80 | Rp2" | 700 | 24 | Rp1¼ | R3/4 |
| 18 | 2.0/1.0 | 2786 | 763 | 2323 | ||||||||||
| 19 | 2.0/1.3 | 2782 | 761 | 2321 | ||||||||||
| 20 | 2.0/1.6 | 2786 | 763 | 2323 | ||||||||||
| 21 | 2.5/0.8 | 110 | 2834 | 1100 | 787 | 80 | 2347 | 80 | 770 | 24 | Rp1¼ | R3/4 | ||
| 22 | 2.5/1.0 | 2836 | 788 | 2348 | ||||||||||
| 23 | 2.5/1.3 | 2836 | 788 | 2348 | ||||||||||
| 24 | 2.5/1.6 | 2836 | 788 | 2348 | ||||||||||
| 25 | 3.0/0.8 | 110 | 2944 | 1200 | 872 | 100 | 2432 | 100 | 906 | 24 | Rp1½ | R3/4 | ||
| 26 | 3.0/1.0 | 2946 | 873 | 2433 | ||||||||||
| 27 | 3.0/1.3 | 2946 | 873 | 2433 | ||||||||||
| 28 | 3.0/1.6 | 2980 | 890 | 2450 | ||||||||||
| 29 | 4.0/0.8 | 110 | 3056 | 1400 | 933 | 100 | 2493 | 100 | 1050 | 24 | Rp1½ | R3/4 | ||
| 30 | 4.0/1.0 | 3090 | 950 | 2510 | ||||||||||
| 31 | 4.0/1.3 | 3056 | 933 | 2493 | ||||||||||
| 32 | 4.0/1.6 | 3090 | 950 | 2510 | ||||||||||
| 33 | 5.0/0.8 | 110 | 3746 | 1400 | 933 | 125 | 3033 | 125 | 1050 | 24 | Rp2 | R1 | ||
| 34 | 5.0/1.0 | 3780 | 950 | 3050 | ||||||||||
| 35 | 5.0/1.3 | 3746 | 933 | 3033 | ||||||||||
| 36 | 5.0/1.6 | 3780 | 950 | 3050 | ||||||||||
| Features of compressed air storage tank pressure vessel |
1. OEM is offered.
2. Reasonable Price.
3. High quality.
4. Reliable design.
5. Best efficiency.
6. Customized is available.
7. Certifications of the EU or National Standard.
| Packaging of compressed air storage tank pressure vessel |
It is mainly packed by wooden cases or other common security package, you also can give us your special requirments about it. We will try our best to make sure the goods arrive safely.
| Shipment of compressed air storage tank pressure vessel |
The product can be send to you by seaway or the airway or the other ways as your requirement.
It usually takes about 3-8 days for customers to receive their items by the airway. But some times, it will take more time for custom to handle it, so you should wait 2-3 days more.
If choose the seaway, it will be cost one more month as you know .But the freight will be cheap.
1. Reply your enquiry in 24 working hours.
2. Experienced staff answer all your questions in professional and fluent English.
3. Customized design is available.
4. Product is guaranteed up to at lest one year from purchase unless manmade damage.
5. We can send our engineer oversea for installation guide.
6. Coming and visiting our factory is welcome.
Nan Yang Yulantian Machinery And Equipment Ltd. Corp. is located in Nan yang City, Henan China ,Who is specializes in the production and sales of water tower equipment (ordinary home-based, small-scale pressurized water tank, fire surge tank, diaphragm pressure tank, frequency of water supply, etc.), wholesale sales site ash dump trucks, trolleys (a metal forming) and water supply equipment accessories (pressure gauges, control switches, power distribution cabinets, etc.). Have build the business relationship with more than 30 countries all over the world ,also have the good response from our clients .
We rely on advanced production equipment, strong technical team and perfect after-sales service to win the majority of the market. Now sales of products, with the national standard pressure vessel manufacturing standards as product quality standards, and has a water tower equipment famous Chinese trademark certification, quality suppliers title etc ... reliable product quality, durable and widespread consumer trust and praise.
With already 16 years experience, we are the proffessional and capable Manufacturer in this field with a good reputation.
We mainly produce Pressure Water Tank, Hydrocyclone, Mechanical Sand Filter, Frequency Conversion Water Equipment and so on. Wellcome to our factory !
Mobile Phone: 008613653776379
Fax: 0086-0377-63290690
Address: Nanyang city Wolong District Fenglou Industrial Area
Zip: 473000
Country/Region: China (Mainland)
City: NanYang
Q1: How to choose the right modle?
A1: If you do not know the right modle clearly, you can cnotact us.
Q2: How to contact your conpany?
A2: With TradeManager or Skype or Email or the other ways we have writed upon.
Q3: Can your engineer come to our place for installation guide?
A3: Yes, we can. We will provide a video and document for installation. If you still have problem, we will send our engineer oversea for installation guide.
Q4: Do you provide after sales service?
A4: Yes, we do. This product is guaranteed up to one year from purchase unless manmade damage.
Q5: Do you accept a special order?
A5: Yes, we do. We can manufacture all kinds of chemical equipments according to your technical drawings.
Q6: Can you give us your price list?
A6: Sorry, we don’t have any. Our products are all manufactured according to customers’ requirements. So price are all different.
Q7: Can you give us a quotation right now?
A7: Please give us detailed technical data. Then we will make a design andquotation for you as soon as possible.
