4ch Cctv Dvr Kit Security Camera System Outdoor Cheap Cctv 4 Camera Ahd Kit

4ch Cctv Dvr Kit Security Camera System Outdoor Cheap Cctv 4 Camera Ahd Kit photo-1
4ch Cctv Dvr Kit Security Camera System Outdoor Cheap Cctv 4 Camera Ahd Kit photo-2
4ch Cctv Dvr Kit Security Camera System Outdoor Cheap Cctv 4 Camera Ahd Kit photo-3
4ch Cctv Dvr Kit Security Camera System Outdoor Cheap Cctv 4 Camera Ahd Kit photo-4
4ch Cctv Dvr Kit Security Camera System Outdoor Cheap Cctv 4 Camera Ahd Kit photo-5
4ch Cctv Dvr Kit Security Camera System Outdoor Cheap Cctv 4 Camera Ahd Kit photo-6
US$ 1 - 63 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
ESK
Model Number:
MVR-HK482
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Guangdong, China
Brand Name ESK
Model Number MVR-HK482
4ch cctv dvr kit security camera system outdoor Cheap cctv 4 camera ahd kit
Product Description

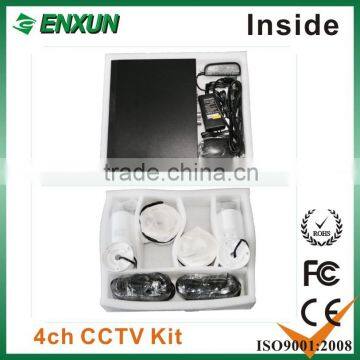

Kit Detail:

*1pcs×4CH 960P/720P AHD DVR (MVR-HK482)



*4pcs×IR 1.0MP 720p AHD outdoor Cameras,6pcs Array leds,20-30M (MAV-773O5/DB)



*1pc×4ch Power Distribution Wire  DC12V 2A



 *4pcs×18M  Cable



* APP: N_EYE



Specification



MAV-773O5/DB

Camera description

1.  IR Waterproof Camera IP67

2.  6pcs Array leds,20-30M   (IR on)

3.  Add $1/pc with OSD

4.  3.6mm Fix lens

5.  HD AHD interface

6.  The transmission distance over 500 meters



Model

MAV-773O5/DB

System

PAL/NTSC

Scanning System

2:1 Interlace

Image Device

1/4’’CMOS(1004)

Scanning Frequency

50HZ(PAL)/60HZ(NTSC)

Synchronization

Internal

Effective Pixels

1.0megapixel (1280*720P)

Video Output

AHD(1.0VP)

Color

Color to B/W (External drive)

S/N Ratio

≥46.4db(Max 67.3db)

Min illumination

0.1LUX(0LUX IR on)

IR distance

20-30M

IR leds

6pcs Array leds

Lens

3.6mm Fix lens

OSD

Optional

E-Shutter

1/50~1/100,000s

Waterproof

IP67

Operation Temperature

-30℃~+60℃

Storage Temperature

-40℃~+80℃

Input Voltage/Current

DC12V

Storage humidity

Indoor 85% RH (No condensation)

Power

Max 500MA

Dimension

165X62X64mm

Weight

0.5kg







MAR-1004ED

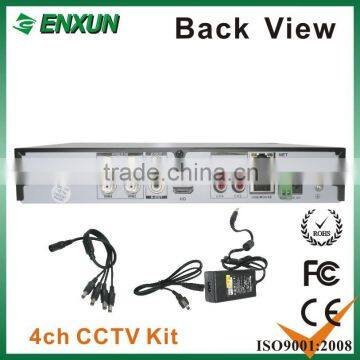

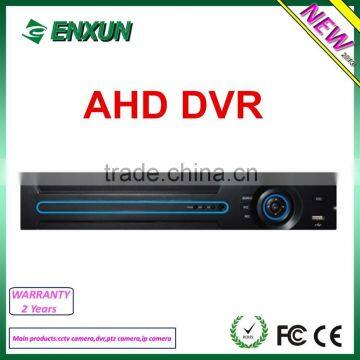

AHD DVR Feature:

*VGA,HDMI,CVBS sync output

*VGA,HDMI output 1920×1080

*Support AHD and 960H Analog camera

*Support preview image or image amplification

*Support mobile phone monitoring(iPhone, Android Windows Mobile, BlackBerry,Symbian)

*Support P2P



Model

MAR-1004ED

System

Main processor

High performance embedded microprocessor

OS

Embedded Linux OS

Video

Image standard

H.264

Switch model

4ch AHD 720P  or                            2ch AHD 720P+2ch 960H



Recording&Playback

PAL:720P @ 50FPS                NTSC: 720P @ 60FPS

Language

English,French,German,Italy,Poland,Portugal,Russia,Spanish,Thai…….

Motion detection

Each cam can set 192pcs area (16*12)  ,Sensitivity level: 1-6

Area mask

Support

Recording

Recording mode

Manual ,motion, timer  ,alarm recording

Recording storage

HDD , Network

Recording Speed

30 fps NTSC;25fps PAL

Playback

Local: 4CH  ; Remote: 4CH

Backup mode

Support HDD, USB pen drive Storage and backup

Video

Video output

1CH VGA ,1CH HDMI ,1CH BNC

Audio

Audio input

4 channel

Audio output

1 channel

Alarm

Alarm input

NO

Alarm output

NO

Others

Network

1x10/100Mbps,RJ45 interface

Commnication

RS485

USB

2 USB2.0, Support upgrade via usb pen drive

HDD

1HDD sata port ,Max to 3TB

Power

DC +12V /2A

Comsumption

<12W(Not included HDD )

Working temprature

0℃-+55℃

Working humidity

10%-90%

Size

252*213*42mm( Height 0.8u)

Weight

2KG



Pictures

   4ch cctv dvr kit security camera system outdoor Cheap cctv 4 camera ahd kit
4ch cctv dvr kit security camera system outdoor Cheap cctv 4 camera ahd kit

4ch cctv dvr kit security camera system outdoor Cheap cctv 4 camera ahd kit
4ch cctv dvr kit security camera system outdoor Cheap cctv 4 camera ahd kit

4ch cctv dvr kit security camera system outdoor Cheap cctv 4 camera ahd kit4ch cctv dvr kit security camera system outdoor Cheap cctv 4 camera ahd kit

Packaging & Shipping

Packaging&Shipping
1.Packaging: Neutral package, Color box, OEM design box.
2.Shipment Terms: DHL, UPS, TNT,EMS etc as your demand.

4ch cctv dvr kit security camera system outdoor Cheap cctv 4 camera ahd kit4ch cctv dvr kit security camera system outdoor Cheap cctv 4 camera ahd kit

4ch cctv dvr kit security camera system outdoor Cheap cctv 4 camera ahd kit



Our Services



Why choose us?

1. All our products have undergone the rigorous raw meterials QC, in-process production QC,48 hours aging, and  full-inspection before ship to the customers, we won't let any defective products be sent to the customers. so you can rest assured about our quality !

2.Profession:CCTV manufacturer more than 10 years experience in China.

3.Fast Lead Time: 3-5 working days

4.Price: we quote with prices for wholesalers, distributors, retailers, the more you buy, the prices are better.

5.Promotion: every month we have promotion for hot items, you can enjoy the lowest prices in the world market

7.OEM Free: can design and print packing box according to your requirements ;  can design and print packing box according to your requirements

8.After-Sale Services:All our products have 2 year warranty

Company Information



1. ENXUN focus on manufacturing CCTV camera since 2003.
2. CCTV Main Products: Tranditional CCD/CMOS camera, AHD camera and IP cameras for kinds of types camera housing.
3. ENXUN's workshop has 4 Production Lines, 1 Dust-free operationg Room, 1 48hrs Aging Time Room, 1 Darkroom, 1 QC Department, 1 Manual Work Silk-printing Room, 1 Automatic Order Processed System Department, 1 Raw& Processed Material Warehouse and 1 Packaging Materials Warehouse. Monthly Output:40,000pcs.
4. Enxun's Overseas Sales Dept now has 20 peoples in 3 sales teams.
5. ENXUN Approved Certifications: CE, FCC, RoHS, ISO9001-2008.
6. Each Year Enxun will attended 3~4 Overseas Exhibitions. Enxun has been to ISC west(USA) , MIPS(Russia), EXPOSEC(Brazil), INTERSEC(Dubai), EXPO Seguridad show(Mexico), ESSEN Show(Germany), etc.



Factory

Sample Room

4ch cctv dvr kit security camera system outdoor Cheap cctv 4 camera ahd kit
Certificates

4ch cctv dvr kit security camera system outdoor Cheap cctv 4 camera ahd kit

Exhibition

 Partners
4ch cctv dvr kit security camera system outdoor Cheap cctv 4 camera ahd kit

FAQ



1. What's the MOQ?

 1pc for sampe,at least 10pcs after sample order.



2. How long is the delivery time?

 Sample order 3-5 working days. For quantity order, we will conside your exact quantity.



3. How long is the warranty?

 2 years warranty since delivered out.



4. What is your method of payment?

 T/T,Western Union, MoneyGram,Paypal.



5. May I print our company logo on package box and camera?

 Of course,buyer logo is welcome in our company.We have one production line for printing buyer logo.



6. How to choose the lens?

 The bigger lens can see farther with smaller angle, the smaller lens can see shorter with  bigger angle.



7. How many cameras can we view in a browser?

  Countless. It depends on the network speed.
