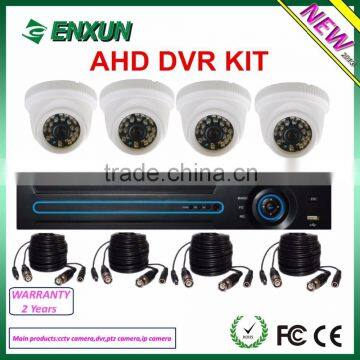

High-Definition Kit 4ch 1.0MP 720P AHD DVR kit dome system

FOB Price

USD $0.99 - $199.99 / Piece

1 Piece(Min.Order)

Supply Ability 40000 Piece / Pieces per Month
Port Shenzhen
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Guangdong, China		Brand Name	MAXVI
Model Number	MVR-HK481

Product Description

High-Definition Kit 4ch 1.0MP 720P AHD DVR kit dome system

DVR description:

*VGA,HDMI,CVBS sync output

*VGA,HDMI output 1920×1080

*Support AHD and 960H Analog camera

*Support preview image or image amplification

*Support mobile phone monitoring(iPhone, Android Windows Mobile, BlackBerry,Symbian)

*Support P2P

Model:	MAR-1004ED
main processor	High-performance embedded microprocessor
Operating system	embedded LINUX operating system
video compression format	H.264
display image resolution	PAL:720P @ 50FPS NTSC: 720P @ 60FPS
Switch model	4ch AHD 720P or 2ch AHD 720P+2ch 960H
motion detection	each channel can setup 192(16×12) detection area; multi-level sensitivity; 1-6 levels adjustable
area mask	Suport
Language	English,French,German,Italy,Poland,Portugal,Russia,Spanish,Thai…….
audio intercom	no
recording mode	manual, motion,schedule,alarm
recording storage	HDD,network
recording speed	PAL @25FPS; NTSC @30FPS
playback	Local: 4CH ; Remote: 4CH
backup mode	support HDD, USBpen drive storage and backup
video input	4ch with POE
video output	1CH VGA, 1CH HDMI, 1CH BNC
audio input	4ch channel
audio output	1channel
alarm input	no
alarm output	no
network	1x10/100Mbps,RJ45 interface
communication	RS485
USB	2 USB2.0, Support upgrade via usb pen drive
HDD	1pcs SATA HDD
Power supply	DC +12V /5A
consumption	12W( Not included HDD )
temperature	0℃-+55℃
humidity	10%-90%
dimension	25221342mm

Camera specification:

1. Plastic IR Dome Camera

2. 24pcsΦ5 leds,20-30M

3. Add $1/pc with OSD

4 3.6mm-3MP Lens

5. HD AHD interface

6. The transmission distance over 500 meters;

Model	MAV-712E	MAV-722E	MAV-732E	MAV-742E	MAV-752E
System	PAL/NTSC
Scanning System	2:1 Interlace
Image Device	1/4CMOS (OV9712)	1/3’’ SONY CMOS(IMX238) Low-Illumination	1/4’’ CMOS(0141) Low-Illumination	1/4 CMOS(1004)	1/3’’ SONY CMOS(0130) Low-Illumination
Scanning Frequency	50HZ(PAL)/60HZ(NTSC)
Synchronization	Internal
Effective Pixels	1.0megapixel (1280*720P)	1.3megapixel (1280*960P)	1.0megapixel (1280*720P)	1.0megapixel (1280*720P)	1.3megapixel (1280*960P)
Video Output	AHD(1.0VP)
Color	Color to B/W (External drive)
S/N Ratio	≥46.4db(Max 67.3db)
Min illumination	0.1LUX(0LUX IR on)
IR distance	20-30M
IR leds	24pcsΦ5 leds
Lens	3.6mm-3MP Lens
OSD	Optional
E-Shutter	1/50~1/100,000s
Operation Temperature	-30℃~+60℃
Storage Temperature	-40℃~+80℃
Input Voltage/Current	DC12V
Storage humidity	Indoor 85% RH (No condensation)
Power	Max 500MA
Dimension	96×70mm

Please contact: Sky, to get more info and ask for full price list, thanks!

QQ: 1959679327

Skype: sky19891130

What'sApp/Wechat: +8618503091897

(CCTV camera, AHD camera, IP camera, HD-CVI camera, HD-TVI camera, DVR, NVR)

Packing & shipping

Neutral package, Color box, OEM design box

OEM Service

International Express

ENXUN Company

Enxun Digital Technology Co.,LTD, invested by Hongkong Qiwan group in 2003, is one of the leading company which produce all kinds of CCTV Cameras and DVR products.

ENXUN now Monthly Output is about 40,000pcs. the Overseas Sales Dept has 20 peoples in 3 sales teams.Enxun products have been exported to the United States, Russia, Canada, Mexico, Brazil, India, Britain... more than 70 countries and regions. Enxun have ISO9001:2008, CE, FCC, ROHS cert.

Each Year Enxun will attended 3~4 Overseas Exhibitions,included: ISC west(USA) ,EXPOSEC(Brazil), INTERSEC(Dubai), EXPO Seguridad show(Mexico), ESSEN Show(Germany), etc.

Factory Overview

Show Room

Certification & Honor

Exhibition

Sales Team

Our Service

1. welcome you to visit our factory

2. OEM/ODM are welcomed

3. print your brand on items, do you item code or make your box

4. Shipping freight quoted under your requests

5. Discounts are offered based on order quantities

6. Sample shipping date: in 3days

7. MOQ: 1 piece

8. Warranty: 2 years warranty, life-time technical support

9. Payment method:T/T , West Union, Paypal

10. International Express:DHL/Fedex/UPS/EMS/TNT
