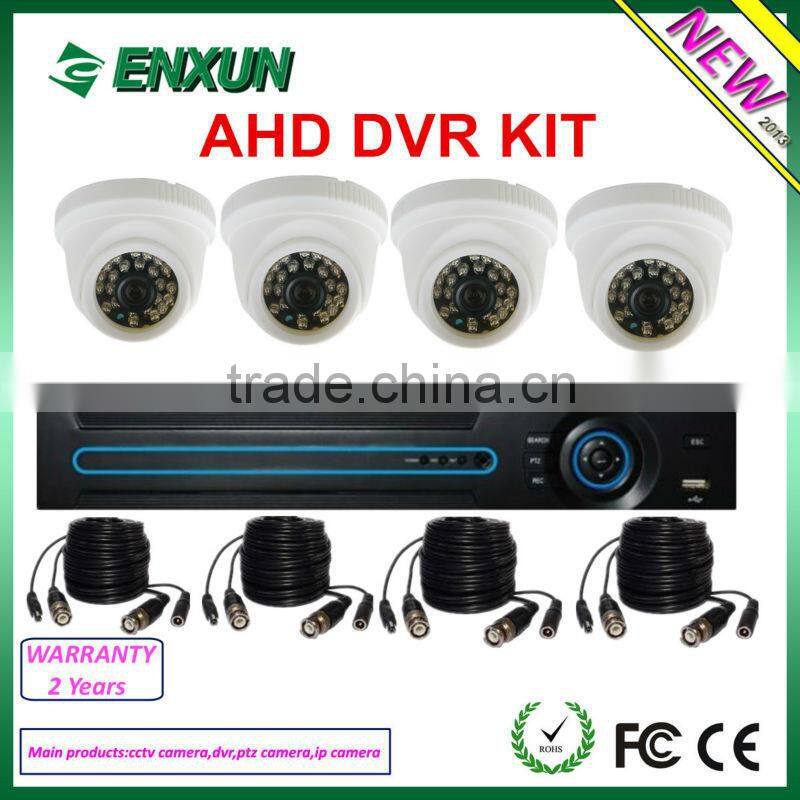

4ch DVR Kit+4pcs ir 1.0MP 720P Low Cost Dvr Cctv Camera
4ch DVR Kit+4pcs ir 1.0MP 720P low cost dvr cctv camera
DVR description:
*VGA,HDMI,CVBS sync output
*VGA,HDMI output 1920×1080
*Support AHD and 960H Analog camera
*Support preview image or image amplification
*Support mobile phone monitoring(iPhone, Android Windows Mobile, BlackBerry,Symbian)
*Support P2P
| Model: | MAR-1004ED |
| main processor | High-performance embedded microprocessor |
| Operating system | embedded LINUX operating system |
| video compression format | H.264 |
| display image resolution | PAL:720P @ 50FPS NTSC: 720P @ 60FPS |
| Switch model | 4ch AHD 720P or 2ch AHD 720P+2ch 960H |
| motion detection | each channel can setup 192(16×12) detection area; multi-level sensitivity; 1-6 levels adjustable |
| area mask | Suport |
| Language | English,French,German,Italy,Poland,Portugal,Russia,Spanish,Thai……. |
| audio intercom | no |
| recording mode | manual, motion,schedule,alarm |
| recording storage | HDD,network |
| recording speed | PAL @25FPS; NTSC @30FPS |
| playback | Local: 4CH ; Remote: 4CH |
| backup mode | support HDD, USBpen drive storage and backup |
| video input | 4ch with POE |
| video output | 1CH VGA, 1CH HDMI, 1CH BNC |
| audio input | 4ch channel |
| audio output | 1channel |
| alarm input | no |
| alarm output | no |
| network | 1x10/100Mbps,RJ45 interface |
| communication | RS485 |
| USB | 2 USB2.0, Support upgrade via usb pen drive |
| HDD | 1pcs SATA HDD |
| Power supply | DC +12V /5A |
| consumption | 12W( Not included HDD ) |
| temperature | 0℃-+55℃ |
| humidity | 10%-90% |
| dimension | 252*213*42mm |
Camera specification:

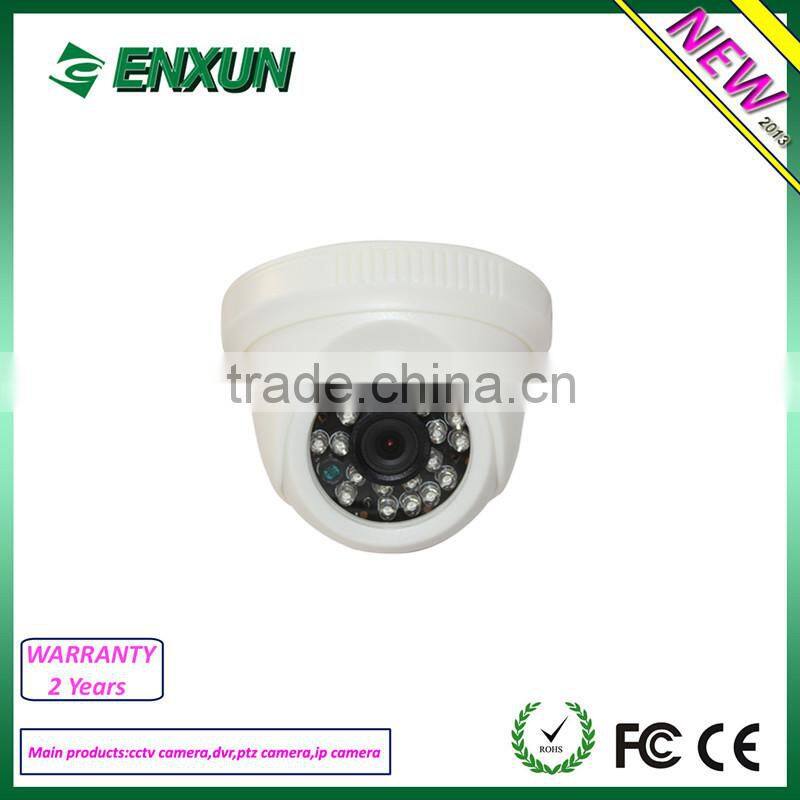

1. Plastic IR Dome Camera
2. 24pcsΦ5 leds,20-30M
3. Add $1/pc with OSD
4 3.6mm-3MP Lens
5. HD AHD interface
6. The transmission distance over 500 meters;
Model | MAV-712E | MAV-722E | MAV-732E | MAV-742E | MAV-752E |
System | PAL/NTSC | ||||
Scanning System | 2:1 Interlace | ||||
Image Device | 1/4CMOS (OV9712) | 1/3’’ SONY CMOS(IMX238) Low-Illumination | 1/4’’ CMOS(0141) Low-Illumination | 1/4 CMOS(1004) | 1/3’’ SONY CMOS(0130) Low-Illumination |
Scanning Frequency | 50HZ(PAL)/60HZ(NTSC) | ||||
Synchronization | Internal | ||||
Effective Pixels | 1.0megapixel (1280*720P) | 1.3megapixel (1280*960P) | 1.0megapixel (1280*720P) | 1.0megapixel (1280*720P) | 1.3megapixel (1280*960P) |
Video Output | AHD(1.0VP) | ||||
Color | Color to B/W (External drive) | ||||
S/N Ratio | ≥46.4db(Max 67.3db) | ||||
Min illumination | 0.1LUX(0LUX IR on) | ||||
IR distance | 20-30M | ||||
IR leds | 24pcsΦ5 leds | ||||
Lens | 3.6mm-3MP Lens | ||||
OSD | Optional | ||||
E-Shutter | 1/50~1/100,000s | ||||
Operation Temperature | -30℃~+60℃ | ||||
Storage Temperature | -40℃~+80℃ | ||||
Input Voltage/Current | DC12V | ||||
Storage humidity | Indoor 85% RH (No condensation) | ||||
Power | Max 500MA | ||||
Dimension | 96×70mm | ||||
Neutral package, Color box, OEM design box
