IPC has been widely applied in all aspects of the industry and people's lives.
For example: to control the scene, toll road and bridge control systems,
medical equipment, environmental monitoring, communications security,
intelligent traffic control systems, building security monitoring, voice call center ACD,
POS cash register counter, CNC machine tools, tanker, financial information processing petrochemical data acquisition and processing, geophysical, field portable operations, environmental protection, military, power, railways, highways, aerospace, subway, intelligent buildings, outdoor advertising, and so on.
| Configuration | |
| Model | IN-PC104 |
| CPU | Intel Celeron 1037u 1.8Ghz CPU |
| GPU | Intel HD Graphics |
| RAM | Support NB Memory SO-DIMM DDR3 (Maximum to 8G RAM) |
| Storage | Support 1*Mini PCIE Msata SSD (SSD Max.512G)+1*2.5 Inch HDD (HDD Max. 1TB) |
| Wi-Fi | Dual Band Wireless-(150Mbps or 300Mbps optional) 1 Antenna Only |
| Package | IPC+Power Supply+Power Cord (USA, European, UK Types for optional) |
Emphasis:
10 COM, COM3-COM6 can set R422, R485
10 COM
2 LAN
6 USB
HDMI
VGA
AUDIO
GPIO
3 Pin DC support 8V~36V
Support Watchdog, 3G, GPIO,PS/2,Caller boot, pxe boot
4G RAM Onboard
Size: 220MM * 200MM * 87.5MM
Weight: 4.5KGS
Upgrade Service:
1. WiFi Optional, if need wifi,(150Mbps) double antenna builtin wireless add extra $8,
(300Mbps) add $10. Choose one from 150M and 300M.
2. Vesa Mount add $4
3. USB Bluray DVD add $48, Normal DVD add $28

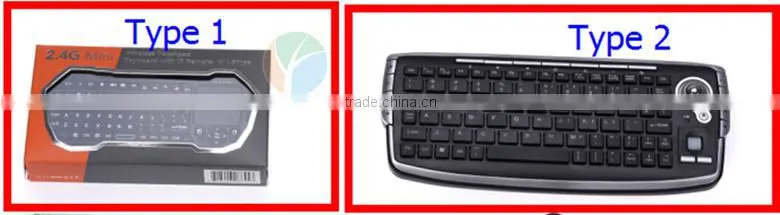

4. 2.4G Air mini Keyboard and Mouse add $18 (choose one type)
5. More configuration about lower or higher RAM, HDD, SSD Options, please refer to our big directory or contact our pre-sales for guide.
Ref. Photo as belows,
(Upgrade rules, such as upgrade 150M wifi, buy 8pcs for $8, Upgrade value, 1pc=$1)
If customer buy the configuration with RAM, SSD, HDD, We can install as belows,
XP/windows 7/Ubuntu Linux optional
(if not leave message, we will ship at Random.)
Charged WIN.8/8.1 add extra $5, Server 2003 add extra $5
Above is Cracked English Version.
Original Windows, please buy it locally!
For bulk orders/Bid Goverment orders, we can supply original embeded windows. (MOQ:10 Sets,inquiry our pre-sales)
Worry-Free Returns
7 Days Returns/15 Days Exchange
Warranty
Hardware 2 Years
Within 1 Year, we afford one way shipping (By Post)
The company of "quality-based, service success" marketing concept, introduced INCTEL Technology Co.,Ltd has its own brand of "partaker" series of products, widely used: Home Personal use, Office, Education terminal, self-service banking terminals, supermarkets operating system, network security, video surveillance, digital signage, automotive computers, smart gaming terminals, automated medical devices, digital signage, and many other areas of logistics applications. Products are exported to Europe, America, Middle East, North Africa, Southeast Asia, more than forty countries and regions, has become well-known computer hardware manufactuer.

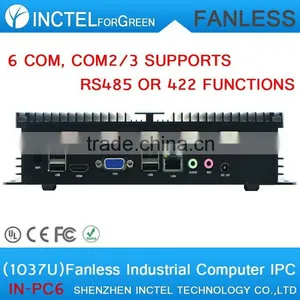

Manufacturers supply Celeron 1037U fanless full aluminum industrial pc with 10 serial port
1.80G dual core Celeron processor 1037U, 10 RS232 interface supports four RS485 / 422 mode, 2 82583V Gigabit Ethernet, 6 USB interface
CPU: Intel Celeron 1037U 1.8G dual core four threads processor
Memory: onboard 4G / DDR3 memory original
NIC: Intel PCI-E 1000M 2 * 82583V (small heat stable and reliable performance is better)
Chassis: 220mm * 200mm * 87.5mm (L * W * H) Aluminum alloy oxidation gray overall workmanship
Power: 12V6A adapter power which is stable 365 days without failure
Motherboard: Green Network Security Industrial Motherboard
Software: You can install Windows XP WIN7 WIN8 Linux.

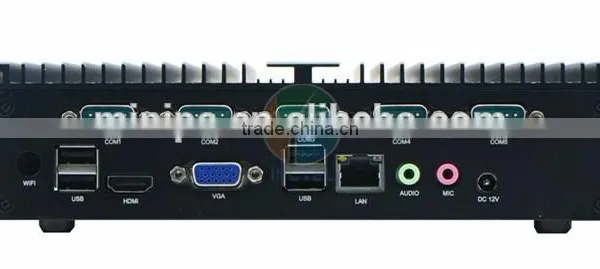

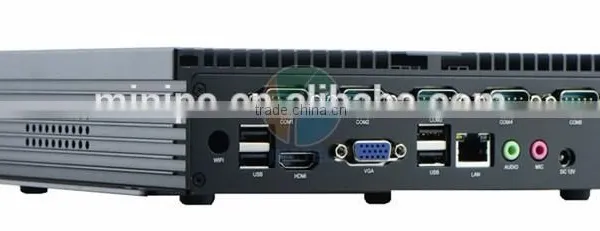

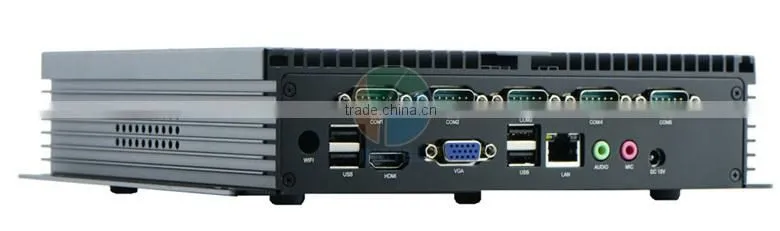

Rear I/O:
INCTEL launched a heavyweight grand fanless industrial computer, no cable connections inside the machine as compared to the traditional way of IPC, there has been a significant seismic demanding work environment upgrade. Entire industrial chassis for all aluminum material, extrusion molding process, in order to better expand the radiating area of the chassis to achieve the best cooling effect, the entire surface of the chassis with a zigzag stripe design.
COM ports: serial communication is instant, IPC is offering as many as 10 serial ports, COM3, COM4, COM5, COM6 can set R232, R422, R485 mode freedom, and to cut the need to purchase 485 converter costs, and industrial control environment in the Central Standing Committee electrical noise transmission line mode when using RS232 communications often because of signal interference caused by external data transmission errors, in addition to the maximum in the case of RS232 communication distance without increasing the buffer only 15 meters down, to solve these problems RS485 came into being.
PS2: the traditional keyboard and mouse interface, PS2 is really out of it? In the "field of industrial research" launched this fanless industrial computer is still on top of the PS2 interface, keyboard and mouse in fact need to be more stable and correct working conditions in industrial environments, so in a variety of industrial environments also left the PS2 place.
GPIO: Another big demand in the industrial environment interface GPIO, when the microcontroller or chipset does not have enough I / O ports, or when the system needs to adopt remote serial communication or control, GPIO products can provide additional control and monitoring functions.
Front I/O:
3G: Integrated dual-core 1.8G processor onboard 1037U 4G RAM, 2.5-inch hard disk memory directly on the motherboard IPC lock the front there is a 3G card slot to resolve the difficulties of using the network in a particular field environment issues to facilitate simple and practical.
Watchdog: IPC with hardware watchdog function in case of occurrence of an infinite loop program or a program runaway, a system reset. Usually when unattended watchdog function on its strong showing.
Caller boot: IPC in the BIOS can be set freely whether to support calls boot, boot in an industrial environment calls can save a great tool manpower.
PXE boot: the same in the BIOS controlled machine can be set freely whether to support PXE boot, PXE boot in an industrial environment is IPC save manpower another big weapon.

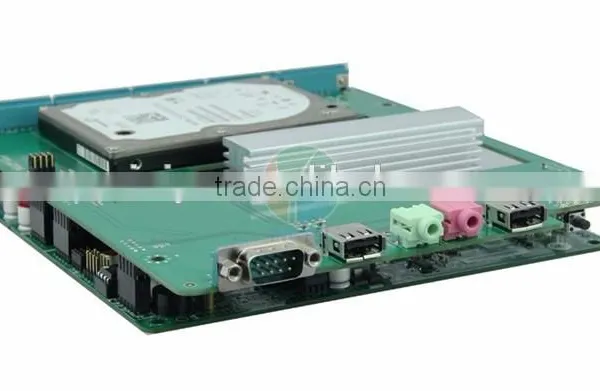

Motherboard:
1. Integrated Intel Celeron 1037U 1.80G dual core processor
2. Onboard 4G memory
3. Integrated Intel HD graphics core
4.2 Intel 82583V Gigabit Ethernet
5. Integrated ALC662 6-channel sound card
6.10 RS232 / COM interface, which COM3 ~ COM6 supports RS485 or 422 features
7. Support DC12V input
Tips:
1. Memory: the original memory DDR3 / 1333 memory (plate affixed 4G memory, to ensure the stability of the machine)
2. Hard drives: the new MLC solid particles MSATA boot disk (not use the old technology CF card or DOM disk, stable and reliable)
3. Power: Configuration 12V / 5A power adapter
4. Packing: neutral packing; protective isolation within the sponge.
INCTEL Technology specializes in the production of industrial computer product development, sales and service.
Products involved: Mini PC, Thin Clients, Virtual Box Products, Mini ITX motherboard, 3.5 inch embedded board, NVR industrial motherboard, network firewall motherboard, industrial chassis integrated workstations, network security barebone, industrial computer accessories and other products.
The company of "quality-based, service success" marketing concept, introduced series of products, widely used: self-service banking terminals, supermarkets operating system, network security, video surveillance, digital signage, automotive computers, smart gaming terminals, automated medical devices, digital signage, and many other areas of logistics applications. Products are exported to Europe, America, Middle East, North Africa, Southeast Asia, more than forty countries and regions, has become well-known in the world.
Nommally we ship via DHL, UPS, FEDEX, and EMS, HK Post, there are some explanation,
Flexible shipping cases as belows,
Case 1: Your shipping area is remote location for DHL. You could find out if your area is remote area or not on DHL the website: /jsp/first.jsp
Case 2: DHL is not allow to use in your area. Like Brazil, AR, Russian ,Kazakhstan. (So we ship via EMS or HK Post)
Case 3: If UPS or DHL are both appliable for your area , we will send it at randomly.
Good news for Russian customers, though DHL, UPS, Fedex etc express are unavailable to deliver to Russia in our area, we choose eEMS(EMS upraded version) to ship parcel by default, safe, fast, with better ability of customs clearance(Russia Customs is strictest in the world). Delivery within about 5-10 working days by e-EMS.
Case 4, Via HK post (mostly Spain prefer by HK post)
Except all of 4 cases, If your address is remote area for us, you should add extra shipping fees for DHL/ UPS/EMS/Fedex etc(welcome to consult our Pre-sales).
Above All, if our dear customer have its own ideas on the shipping method and declared value request, please leave message on the order, or consult our pre-sales.
