IPC has been widely applied in all aspects of the industry and people's lives.
For example: to control the scene, toll road and bridge control systems,
medical equipment, environmental monitoring, communications security,
intelligent traffic control systems, building security monitoring, voice call center ACD,
POS cash register counter, CNC machine tools, tanker, financial information processing petrochemical data acquisition and processing, geophysical, field portable operations, environmental protection, military, power, railways, highways, aerospace, subway, intelligent buildings, outdoor advertising, and so on.
| Configuration | |
| Model | IN-PN86S |
| CPU | Intel Atom N2800 1.86Ghz Processor |
| GPU | Integrated Intel GMA3600 Graphic |
| RAM | Support NB Memory SO-DIMM DDR3 (Maximum to 2G RAM) |
| Storage | Support 1*Mini PCIE Msata SSD (SSD Max.512G)+1*2.5 Inch HDD (HDD Max. 1TB) |
| Wi-Fi | Dual Band Wireless-(150Mbps or 300Mbps optional) 2 Antennas |
| Package | IPC+Power Supply+Power Cord (USA, European, UK Types for optional) |
Emphasis:
6 RS232, COM2 which supports RS485/422 function
6 RS232
2 LAN
4 USB
VGA
HDMI
DC
AUDIO
Size: 175MM * 155MM *54MM
Weight: 2.5KGS
Upgrade Service:
1. WiFi Optional, if need wifi,(150Mbps) double antenna builtin wireless add extra $8,
(300Mbps) add $10. Choose one from 150M and 300M.
2. Vesa Mount add $4
3. USB Bluray DVD add $48, Normal DVD add $28
4. 2.4G Air mini Keyboard and Mouse add $18 (choose one type)
5. More configuration about lower or higher RAM, HDD, SSD Options, please refer to our big directory or contact our pre-sales for guide.
Ref. Photo as belows,
(Upgrade rules, such as upgrade 150M wifi, buy 8pcs for $8, Upgrade value, 1pc=$1)
If customer buy the configuration with RAM, SSD, HDD, We can install as belows,
XP/windows 7/Ubuntu Linux optional
(if not leave message, we will ship at Random.)
Charged WIN.8/8.1 add extra $5, Server 2003 add extra $5
Above is Cracked English Version.
Original Windows, please buy it locally!
For bulk orders/Bid Goverment orders, we can supply original embeded windows. (MOQ:10 Sets,inquiry our pre-sales)
Worry-Free Returns
7 Days Returns/15 Days Exchange
Warranty
Hardware 2 Years
Within 1 Year, we afford one way shipping (By Post)
The company of "quality-based, service success" marketing concept, introduced INCTEL Technology Co.,Ltd has its own brand of "partaker" series of products, widely used: Home Personal use, Office, Education terminal, self-service banking terminals, supermarkets operating system, network security, video surveillance, digital signage, automotive computers, smart gaming terminals, automated medical devices, digital signage, and many other areas of logistics applications. Products are exported to Europe, America, Middle East, North Africa, Southeast Asia, more than forty countries and regions, has become well-known computer hardware manufactuer.

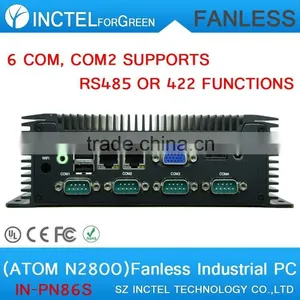

3.5 inch embedded industrial low power car IPC with N2800 motherboard
Atom N2800 processor fanless widen IPC, 6 RS232 interface, IO board can be inserted into the 2.5-inch notebook hard drive, 2 RTL8111E Gigabit LAN chip, DC12V power supply.
CPU: Intel Atom low power consumption 6.5W Atom N2800 1.86G dual processor with four threads
NIC: Realtek PCI-E 1000M 2 * RTL8111E
Chassis: 175mm * 155mm * 54mm (L * W * H) Aluminum alloy oxidation gray overall workmanship
Power: 12V5A 3C certification adapter power which is stable 365 days without failure
Motherboard: Green industrial motherboard
Software: You can install Windows xp, Linux, etc.
Industrial design without any transfer leads, which with each extension adapter plate to implement, the whole function is more stable for vibration, dust, and other harsh industrial site designed all-aluminum enclosure, fanless passive cooling, to avoid the impact of dust on the IPC.

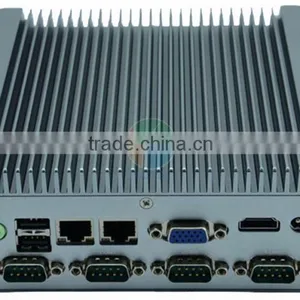

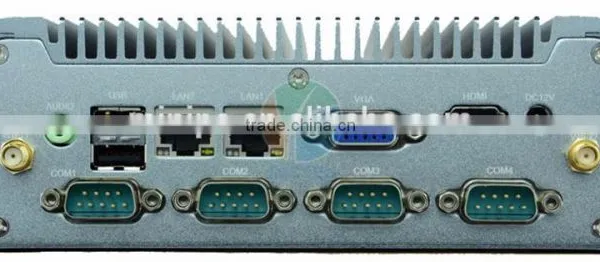

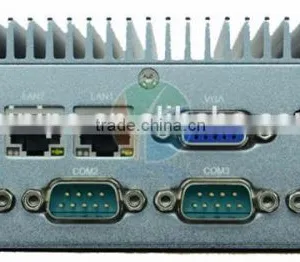

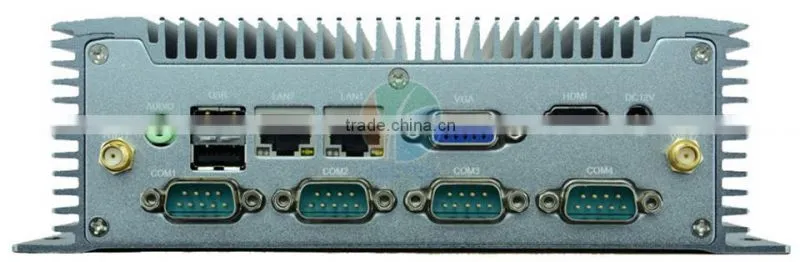

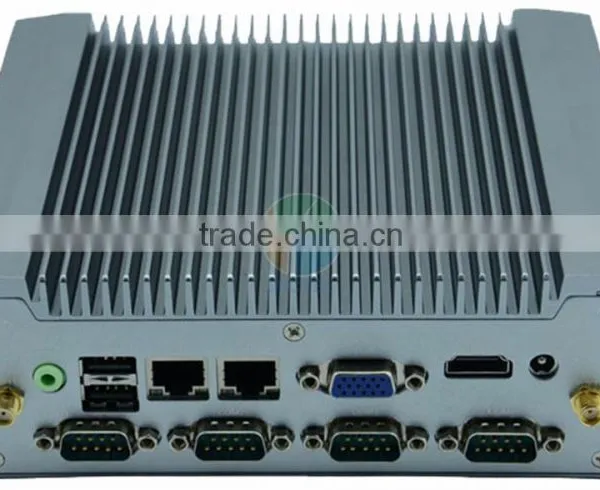

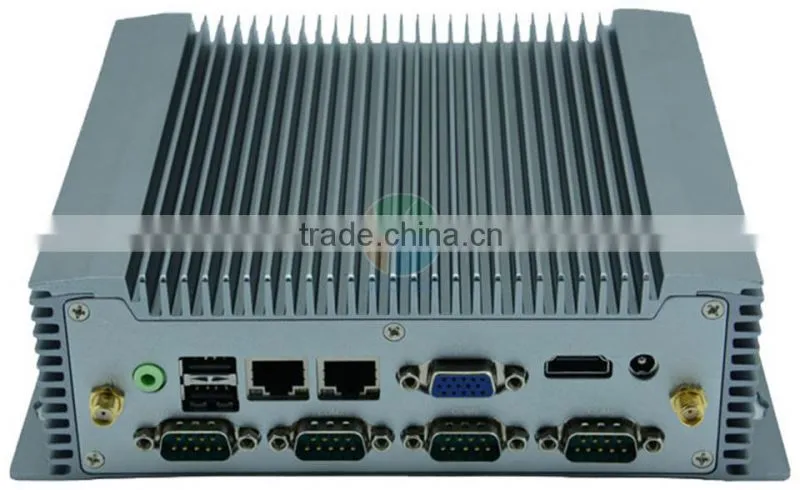

1. Rear I/O:
Integrated two RTL8111E Gigabit Ethernet chip, 4 RS232 / COM port, 2 USB2.0, 1 HDMI, audio head, DC12V input connector

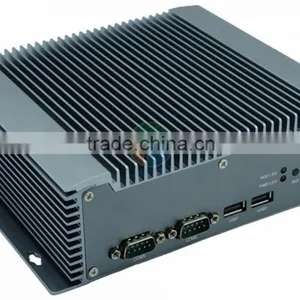

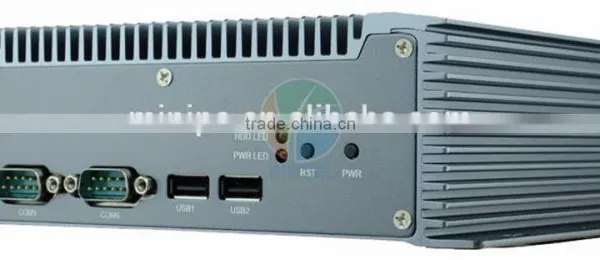

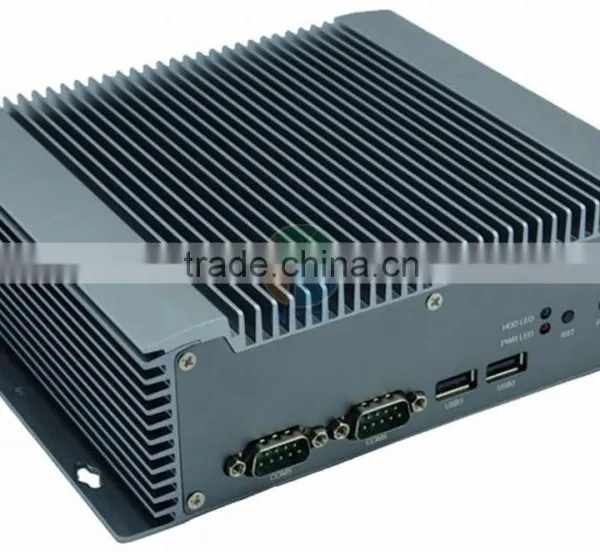

2. Front I/O:
Two RS232 / COM port, 2 USB2.0, 1 PWR and RST switch button, PWRLED and HDD LED

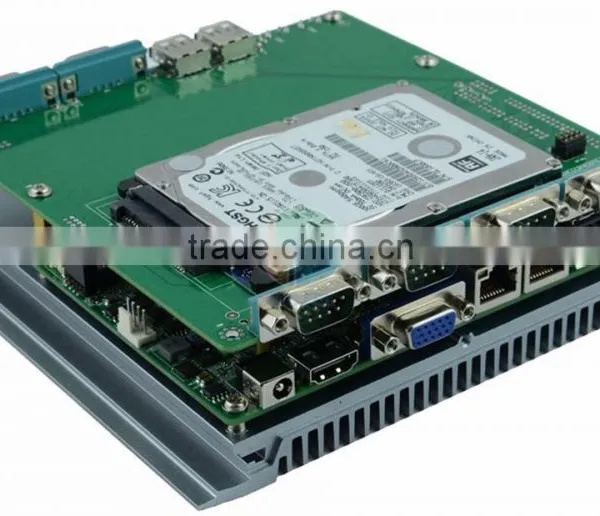

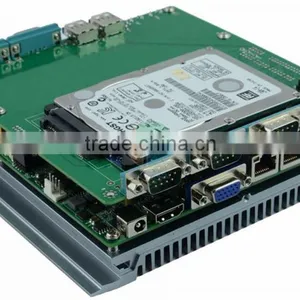

3. Internal side view
Integrated Intel Atom N2600 processor single core dual threaded 1.66G DDR3 generation of memory and 2.5 inch hard drive directly to the adapter plate lock; the entire chassis without any transfer leads.
Motherboard:
1. Integrated Intel Atom low power consumption 6.5W Atom N2800 1.86G dual processor with four threads
2. Support DDR3 generation of memory
3. GMA3600 integrated graphics core
4.2 RTL8111E PCIE Gigabit LAN
5. Integrated ALC662 6-channel sound card
6.6 RS232 / COM interface, COM2 which supports RS485 or 422 function
7. Support DC12V input
Tips:
1.Memory: the original memory DDR3 / 1333 memory (original memory to ensure the stability of the machine)
2. Hard drives: the new SLC solid particles of industrial grade MSATA boot disk (not used before the old technology CF card or DOM disk, stable and reliable)
3. About power: Configuration 12V / 5A 3C certified power adapter
4. Packing: neutral packing; protective isolation within the sponge.
Tips:
1.Memory: the original memory DDR3 / 1333 memory (original memory to ensure the stability of the machine)
2. Hard drives: the new SLC solid particles of industrial grade MSATA boot disk (not used before the old technology CF card or DOM disk, stable and reliable)
3. About power: Configuration 12V / 5A 3C certified power adapter
4. Packing: neutral packing; protective isolation within the sponge.
INCTEL Technology specializes in the production of industrial computer product development, sales and service.
Products involved: Mini PC, Thin Clients, Virtual Box Products, Mini ITX motherboard, 3.5 inch embedded board, NVR industrial motherboard, network firewall motherboard, industrial chassis integrated workstations, network security barebone, industrial computer accessories and other products.
The company of "quality-based, service success" marketing concept, introduced series of products, widely used: self-service banking terminals, supermarkets operating system, network security, video surveillance, digital signage, automotive computers, smart gaming terminals, automated medical devices, digital signage, and many other areas of logistics applications. Products are exported to Europe, America, Middle East, North Africa, Southeast Asia, more than forty countries and regions, has become well-known in the world.
Nommally we ship via DHL, UPS, FEDEX, and EMS, HK Post, there are some explanation,
Flexible shipping cases as belows,
Case 1: Your shipping area is remote location for DHL. You could find out if your area is remote area or not on DHL the website: /jsp/first.jsp
Case 2: DHL is not allow to use in your area. Like Brazil, AR, Russian ,Kazakhstan. (So we ship via EMS or HK Post)
Case 3: If UPS or DHL are both appliable for your area , we will send it at randomly.
Good news for Russian customers, though DHL, UPS, Fedex etc express are unavailable to deliver to Russia in our area, we choose eEMS(EMS upraded version) to ship parcel by default, safe, fast, with better ability of customs clearance(Russia Customs is strictest in the world). Delivery within about 5-10 working days by e-EMS.
Case 4, Via HK post (mostly Spain prefer by HK post)
Except all of 4 cases, If your address is remote area for us, you should add extra shipping fees for DHL/ UPS/EMS/Fedex etc(welcome to consult our Pre-sales).
Above All, if our dear customer have its own ideas on the shipping method and declared value request, please leave message on the order, or consult our pre-sales.
