Industrial 1037U Embedded Fanless PC with 4G RAM Mini Computer

IPC has been widely applied in all aspects of the industry and people's lives.
For example: to control the scene, toll road and bridge control systems,
medical equipment, environmental monitoring, communications security,
intelligent traffic control systems, building security monitoring, voice call center ACD,
POS cash register counter, CNC machine tools, tanker, financial information processing petrochemical data acquisition and processing, geophysical, field portable operations, environmental protection, military, power, railways, highways, aerospace, subway, intelligent buildings, outdoor advertising, and so on.

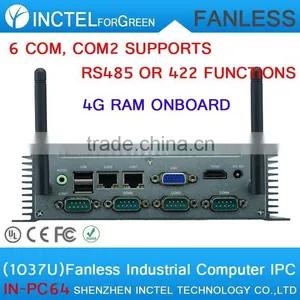

Emphasis:

6 COM, COM2 supports RS485 or 422 functions

Mini PC Rear I/O:

6COM

4USB

2LAN

HDMI

VGA

DC12V

AUDIO

Size: 175MM * 155MM * 54MM

Weight: 2.5-3KGS

Upgrade Service:

1. WiFi Optional, if need wifi,(150Mbps) double antenna builtin wireless add extra $8,
(300Mbps) add $10. Choose one from 150M and 300M.
2. Vesa Mount add $4
3. USB Bluray DVD add $48, Normal DVD add $28
4. 2.4G Air mini Keyboard and Mouse add $18 (choose one type)
5. More configuration about lower or higher RAM, HDD, SSD Options, please refer to our big directory or contact our pre-sales for guide.

Ref. Photo as belows,

(Upgrade rules, such as upgrade 150M wifi, buy 8pcs for $8, Upgrade value, 1pc=$1)

If customer buy the configuration with RAM, SSD, HDD, We can install as belows,

XP/windows 7/Ubuntu Linux optional
(if not leave message, we will ship at Random.)
Charged WIN.8/8.1 add extra $5, Server 2003 add extra $5
Above is Cracked English Version.

Original Windows, please buy it locally!
For bulk orders/Bid Goverment orders, we can supply original embeded windows. (MOQ:10 Sets,inquiry our pre-sales)

Worry-Free Returns

7 Days Returns/15 Days Exchange

^Warranty

^{Hardware 2 Years}

^{Within 1 Year, we afford one way shipping (By Post)}

The company of "quality-based, service success" marketing concept, introduced INCTEL Technology Co.,Ltd has its own brand of "partaker" series of products, widely used: Home Personal use, Office, Education terminal, self-service banking terminals, supermarkets operating system, network security, video surveillance, digital signage, automotive computers, smart gaming terminals, automated medical devices, digital signage, and many other areas of logistics applications. Products are exported to Europe, America, Middle East, North Africa, Southeast Asia, more than forty countries and regions, has become well-known computer hardware manufactuer.

Wholesale manufacturers industrial 1037u 3.5 inch embedded fanless IPC with 4G RAM onboard
LVY brige 1037U processor integrated 3.5 inch fanless board, 6 RS232 interface, COM2 support RS485 / 422 mode, 2G memory onboard, two 8111E Gigabit LAN chip supports Wake on LAN

CPU: Intel Celeron 22 nanometer low power 17W 1037U 1.8G dual core four threads processor
Memory: plate stickers 4G / DDR3 original laptop memory (to prevent vibration, resulting in poor contact)
NIC: Intel PCI-E Gigabit 2 * 82583V
Chassis: 175MM * 155MM * 54MM (L * W * H) oxide gray overall workmanship
Power: 12V5A 3C certification adapter power which is stable 365 days without failure
Motherboard: Green industrial motherboard
Software: You can install Windows xp, Win7, Linux, etc.

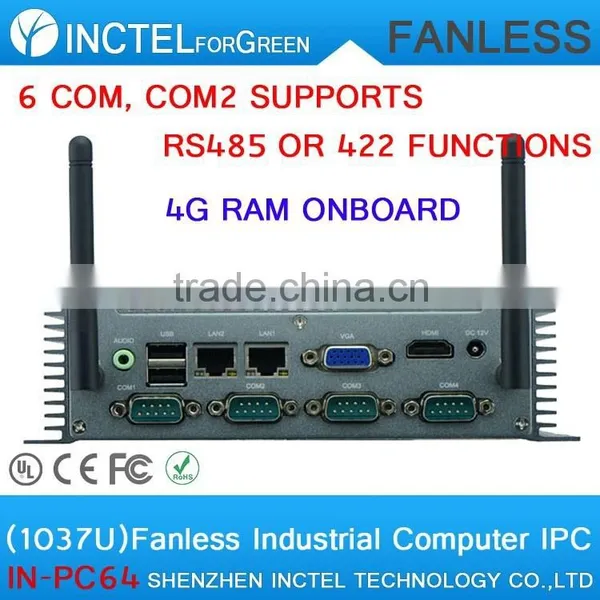

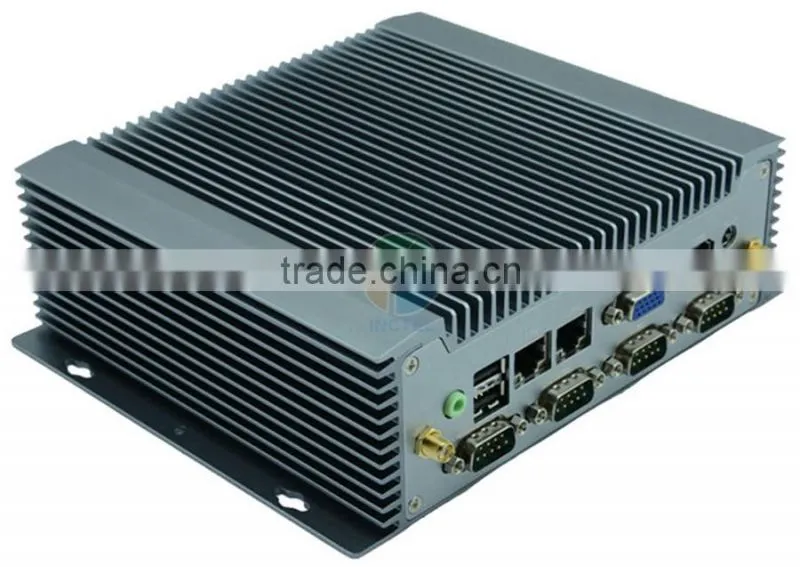

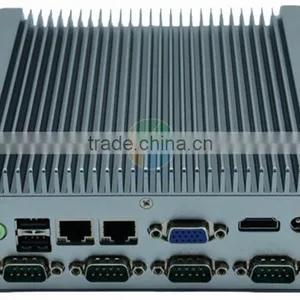

1. Rear I/O:
4 COM ports, integrated two Intel 82583V Gigabit Ethernet, 1 HDMI, 2 USB2.0, 1 VGA port, Audio port, DC12V power input

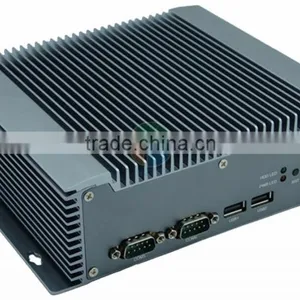

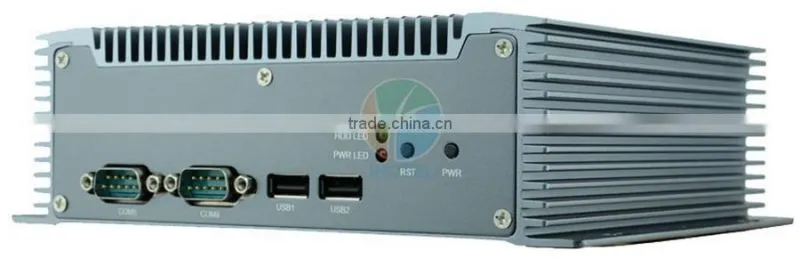

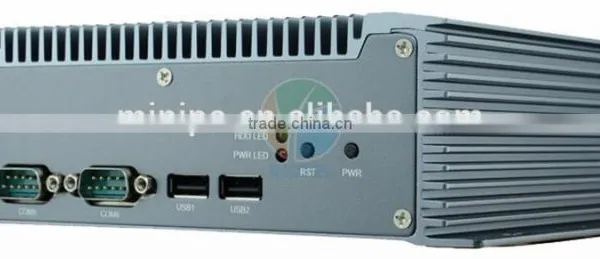

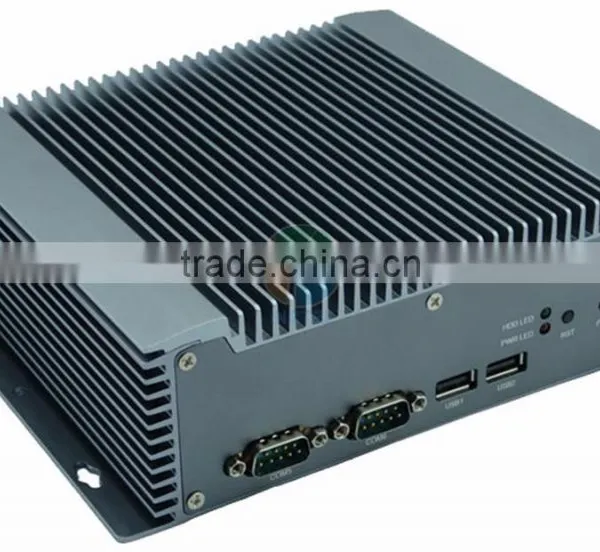

2. Front I/O
2 COM ports, and two audio outputs,2 USB2.0 interface,2 LED lights (one is the power light and the other one is hard disk light), 1 touch switch button

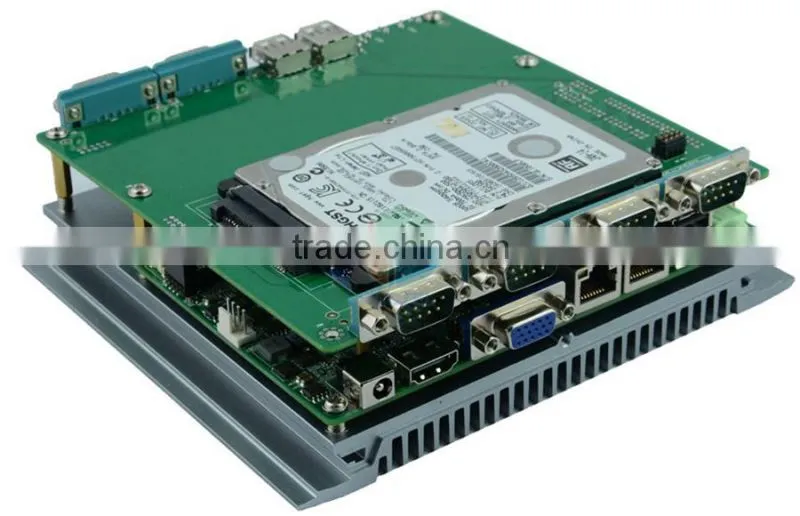

3. Internal side view
Intel 1037U integrated 1.8G dual core four thread processor generation 2G DDR3 onboard memory and a 2.5-inch hard drive directly to the adapter plate lock; the entire chassis without any transfer leads.

Motherboard:
1. Integrated Intel Ivy birge 1037U / 1.80G 22 nanometer dual core four threads
2. The board pasted with 4G DDR3 generation of memory
3. Integrated HD graphics core
4.2 Intel 82583V Gigabit Ethernet
5. Integrated ALC662 6-channel sound card
6.6 RS232, COM2 support RS485 or 422 function
7. Support DC12V input

Tips:
1. Original Memory DDR3 / 1333 memory (4G memory onboard, to ensure the stability of the machine)
2. The new industrial grade SLC MSATA solid particles startup disk (not use the old technology CF card or DOM disk, stable and reliable)
3. Power: Configuration 12V / 6.5A power adapter ("SHIHUA" brand power is not an ordinary cheap power, power quality and stability is guaranteed.)
4. Packing: neutral packing; protective isolation within the sponge.
