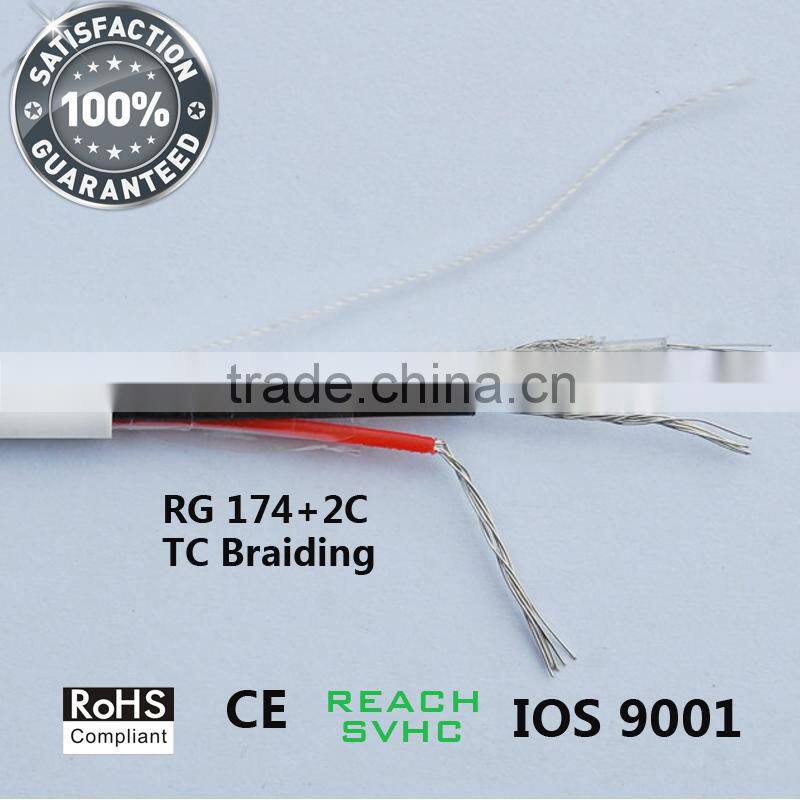

RG174/U Coaxial Cable - Flexible Small Diameter 50 Ohm RG174 Cable

Name: RG174/U Coaxial Cable - Flexible Small Diameter 50 Ohm RG174 Cable
Brand: JinJin
SKU: 131430623
Availability: InStock

RG174/U Coaxial Cable - Flexible Small Diameter 50 Ohm RG174 Cable thumbnail-1

RG174/U Coaxial Cable - Flexible Small Diameter 50 Ohm RG174 Cable photo-1

US$ 6 - 7 MOQ: 10000 Boxes

Key Specifications

Get Latest Price

Place of Origin:

Zhejiang, China

Brand Name:

JinJin

Model Number:

RG 174 CABLE

Contact Supplier Request Quote Chat Now

Lin'an Jinjin Wire & Cable Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Ningbo or Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Zhejiang, China

Brand Name JinJin

Model Number RG 174 CABLE

Type Coaxial

LIN'AN JINJIN CABLE&WIRE CO.,LTD

RG174 Coaxial cable

RG174/U Bulk Coaxial Cable - Flexible Small Diameter 50 Ohm RG174 Cable

Product Description

B.Attenuation «@68°F.(20°c)»

Frequency (MHz)	1	10	50	100	200	400	700	900	1000
Maximum (dB/100Ft)	2.3	3.8	6.4	8.9	13.4	20.2	27.8	32.3	36.2
Maximum (dB/100m)	7.5	12.5	20.9	29.2	43.9	66.3	91.2	105.9	118.7

PHYSICAL PROPERTIES

	Material	Diameter(mm)
1. Inner conductor	Bare Copper	7*0.17
2. Insulation	Solid PE	1.52
3. Outer conductor	Tinned Copper Bried	Nom.1.90
4. Jacket	PVC	2.79

ELECTRICAL PROPERTIES

Nom. Capacitance Conductor to Shield(pF/m)	101.05
Nom. Characteristic Impedance(ohm)	50
Nom. Velocity of Propagation(%…)	66
Min. Bend Radius(Install)(mm)	10
Voltage Rating(VMS)	1100
Max. Operating Frequency(MHz)	1000
Operating Temperature Rating(-°C)	-25~+70

Packaging & Shipping

Package Details

1) Packing Lengths: 100m/roll, 200m/roll, 300m/roll. Other lengths are available according to clients' Request;
2) Inner packing: Wooden reel, plastic reel.
3) Outer packing: Carton box, pull box, pallet.
4) Other packing are available according to client's' Request.

Payment

We accept T/T 30% Deposit in advance and the Balance should be paided when we see the Copy of B/L.

Shipping

1. Sample will send by DHL,UPS,FEDEX,TNT,EMS etc, you can choose any one.

2. For the Large quantity you can choose your own Freight forwarding
