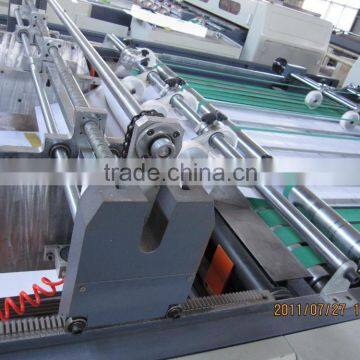

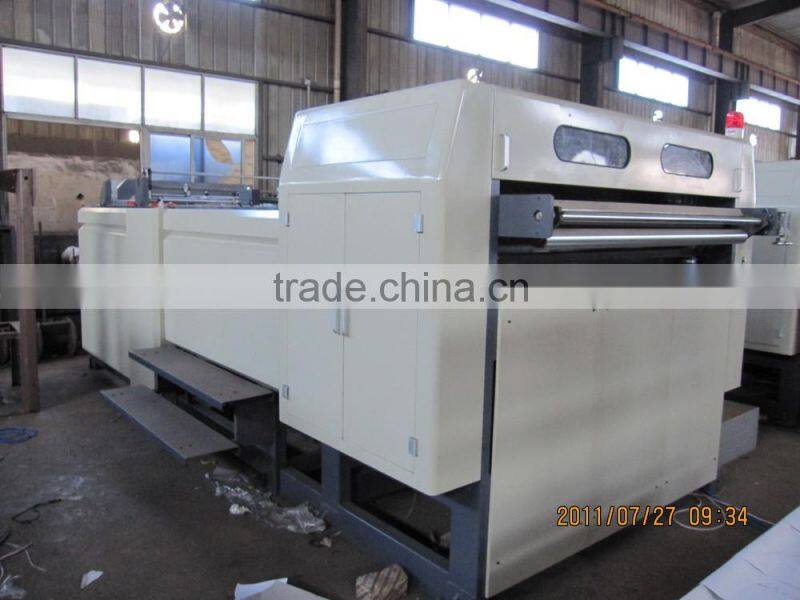

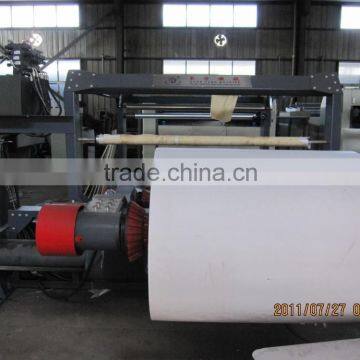

Help CenterComputerized Servo Roll Kife A4 Sheet Cutting Machine
Related Products
-
Factory Price Chrome A3 A4 Paper Cross Cutting MachineUS$ 10,000 - 15,000MOQ: 1 Unit -
QLFM 520Q Automatic Air Pressure Laminating MachinesUS$ 2,000 - 3,000MOQ: 1 Unit
-
1200mm Semi-Automatic Pneumatic Hydraulic Film LaminatorUS$ 5,000 - 6,200MOQ: 1 Unit
-
Computer Control Roll to Sheet Rotary Paper Cutting MachineUS$ 5,000 - 15,000MOQ: 1 Unit
-
Single Head Iron Wire Saddle Stitching Riding Exercise Book Binding MachineUS$ 800 - 2,000MOQ: 1 Unit
rolls A4 Paper Sheeting Machine
( Model ) DFJ-1400E
Model of cutting paper |
The up knife cut reciprocally and the down knife is fixed |
Thickness of cutting paper |
60-600GSM |
Max. scroll diameter |
1600mm(75 in )Max |
Max. paper-cutting width |
1450mm |
Cutting length Range |
450-1450mm |
The format of slitting |
2 sheets( 1/2/3/4/5/6 can be choose ) |
(Cutting precision) |
The cutting length 1200mm is: ±0.3mm
(The cutting length>1200mm is:±0.1%) |
Max. cutting speed |
380cuts/min |
Max. cutting meter speed |
350m/min |
Paper piling height |
1300mm |
The request for air compressor |
0.8Mpa |
Power consumption |
380V/220V 50Hz/60Hz |
G.W. |
12000 KGS |
( Computerized Servo Roll Kife A4 Sheet Cutting Machine - Due to the paper’s density, quantities and the materials are different. When the cutting length≤1200mm the cutting precision is: ±0.3mm,≥ 1200mm is:±0.1%. When speed changed is: ±0.1%. Above data is just based on the stable and correct operation. (The cutting precision is just for one roll cutting)
Output
Actual output depends on the paper’s material,weight,cutting length,sheet’s quantity, technology of operator and operating condition, etc.
thermal paper roll cutting machine
thermal paper roll cutting machine
thermal paper roll cutting machine
