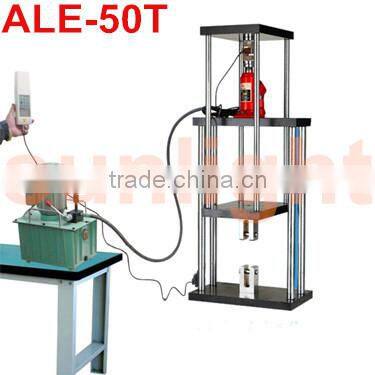

Motor Driven Hydraulic Force Test Stand Push and Pull Force Test Support 50T ALE-50T
Negotiable
/ Piece
1 Piece(Min. Order)
- Shanghai
- T/T Money Gram Credit Card PayPal
You May Like
-
Manual Hydraulic Test Stand Force Test Support 5K ALR-5K
-
Manual Hydraulic Test Stand Push and Pull Force Test Support 5T ALR-5T
-
Manual Hydraulic Test Stand Push and Pull Force Test Support 10T ALR-10T
-
Manual Hydraulic Force Test Stand Push and Pull Force Test Support 20T ALR-20T
-
Manual Hydraulic Force Test Stand Push and Pull Force Test Support 50T ALR-50T
-
Manual Push/Pull Test Stand Force Test Support AST-J
Product Details
| Place of Origin | Shanghai, China | Brand Name | Sunlight | |
| Model Number | ALE-50T | Power | Other, Manual | |
| Usage | Strength Testing Machine |
Product Description
Applications:

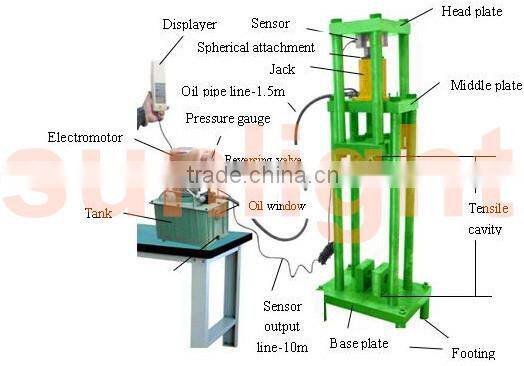

ALE Hydraulic model test stand is designed for HF series push pull force gauge operation, manual operation. Using large hydraulic jacks to realize big load force test, Simple and stable operation, it can be combined with different fixtures in various combinations of different purposes compressive load test.
Specifications:
Max LOAD | ALE-5K | ALE-5T | ALE-10T | ALE-20T | ALE-5OT |
Compress Chamber | 150mm | 240mm | 280mm | 245mm | 290mm |
Stretching Chamber | 185mm | 120mm | 130mm | 165mm | 150mm |
Effective Stroke | 90mm | 125mm | 125mm | 145mm | 160mm |
Dimension | 190*180*880mm | 225*180*1000mm | 300*300*1185mm | 300*300*1200mm | 350*350*1410mm |
Net Weight | 30kg | 41.6kg | 90.3kg | 98kg | 194kg |
