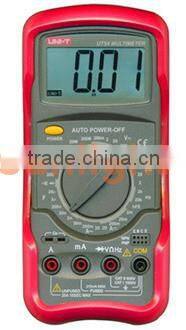

Help CenterEconomical Handheld Digital Multimeter, AC/DC/Resistance/Capacitance/Frequency UT54
Related Products
-
Economical Handheld Digital Multimeter, AC/DC/Resistance/Capacitance/Frequency/Temperature UT55NegotiableMOQ: 1 Piece -
Economical Handheld Digital Multimeter, AC/DC/Resistance/Capacitance/Frequency UT56NegotiableMOQ: 1 Piece
-
Economical Handheld Digital Multimeter, AC/DC/Resistance/Capacitance/Frequency True RMS UT57NegotiableMOQ: 1 Piece
-
Economical Portable Digital Multimeter, AC/DC/Resistance/Capacitance UT50ANegotiableMOQ: 1 Piece
-
Economical Portable Digital Multimeter, AC/DC/Resistance/Capacitance/Temperature UT50BNegotiableMOQ: 1 Piece
Specifications:
Specifications |
Range |
Best Accuracy |
Model |
UT54 |
|
DC Voltage (V) |
200mV/2V/20V/200V/1000V |
±(0.5%+1) |
DC Current (A) |
2mA/20mA/200mA/20A |
±(0.8%+1) |
AC Voltage (V) |
2V/20V/200V/750V |
±(0.8%+3) |
AC Current (A) |
20mA/200mA/20A |
±(1%+3) |
Resistance (Ω) |
200Ω/2kΩ/20kΩ/200kΩ/2MΩ/20MΩ/200MΩ |
±(0.8%+1) |
Capacitance (F) |
2nF/20nF/200nF/2μF/20μF |
±(4%+3) |
Frequency (Hz) |
2kHz/20kHz |
±(1.5%+5) |
Features | ||
Transistor |
|
Yes |
Diode |
|
Yes |
Continuity Buzzer |
|
Yes |
Sleep Mode |
|
Yes |
Low Battery Display |
|
Yes |
Input Impedance for DC Voltage Measurement |
10MΩ |
Yes |
Max. Display |
1999 |
Yes |
General Characteristic | ||
Power |
9V Battery (6F22) |
|
LCD Size |
65mm×33mm |
|
Product Colour |
Red and Grey |
|
Product Net Weight |
580g (including holster)) |
|
Product Size |
190mm×88mm×34mm |
|
Standard Accessories |
Test Lead, Battery, Holster |
|
Standard Packing |
Gift Box, English Manual |
|
Standard Quantity Per Carton |
20 Pcs |
|
Standard Carton Measurement |
535mm×362mm×385mm |
|
Standard Carton Gross Weight |
20.5kg |
|
Optional Accessories* |
Clip-On Test Lead Light (UT-TL), Built-In Test Lead Light (UT-L1), Built-In Test Lead Light Plus (UT-L2) |
|
Contrast:
Specifications |
Range |
Best Accuracy |
|
Model |
UT54 |
UT55 |
|
DC Voltage (V) |
200mV/2V/20V/200V/1000V |
±(0.5%+1) |
±(0.5%+1) |
DC Current (A) |
2mA/20mA/200mA/20A |
±(0.8%+1) |
±(0.8%+1) |
AC Voltage (V) |
2V/20V/200V/750V |
±(0.8%+3) |
±(0.8%+3) |
AC Current (A) |
20mA/200mA/20A |
±(1%+3) |
±(1%+3) |
Resistance (Ω) |
200Ω/2kΩ/20kΩ/200kΩ/2MΩ/20MΩ/200MΩ |
±(0.8%+1) |
±(0.8%+1) |
Capacitance (F) |
2nF/20nF/200nF/2μF/20μF |
±(4%+3) |
±(4%+3) |
Frequency (Hz) |
2kHz/20kHz |
±(1.5%+5) |
±(1.5%+5) |
20kHz |
|
±(1.5%+5) |
|
Temperature (°C) |
-20°C~1000°C |
|
±(1%+3) |
Features | |||
Transistor |
|
Yes |
Yes |
Diode |
|
Yes |
Yes |
Continuity Buzzer |
|
Yes |
Yes |
Sleep Mode |
|
Yes |
Yes |
Low Battery Display |
|
Yes |
Yes |
Input Impedance for DC Voltage Measurement |
10MΩ |
Yes |
Yes |
Max. Display |
1999 |
Yes |
Yes |
General Characteristic | |||
Power |
9V Battery (6F22) |
||
LCD Size |
65mm×33mm |
||
Product Colour |
Red and Grey |
||
Product Net Weight |
580g (including holster)) |
||
Product Size |
190mm×88mm×34mm |
||
Standard Accessories |
UT54-Test Lead, Battery, Holster |
||
UT55-Test Lead, Battery, Holster,Point type temperature probe | |||
Standard Packing |
Gift Box, English Manual |
||
Standard Quantity Per Carton |
20 Pcs |
||
Standard Carton Measurement |
535mm×362mm×385mm |
||
Standard Carton Gross Weight |
UT54-20.5kg,UT55-17.4kg |
||
Optional Accessories* |
Clip-On Test Lead Light (UT-TL), Built-In Test Lead Light (UT-L1), Built-In Test Lead Light Plus (UT-L2) |
||
Accessories:
Test Lead,
Battery,
Holster
Clip-On Test Lead Light (UT-TL)*,
Built-In Test Lead Light (UT-L1)*,
Built-In Test Lead Light Plus (UT-L2)*
