Home > Instruments & Meters > Meter for Electricity > Multimeter > Palm Size Digital Multimeter, AC/DC/Resistance/Temperature UT30C

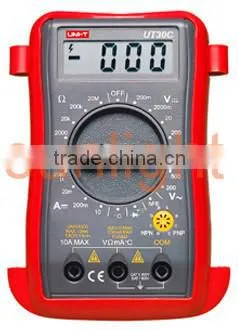

Palm Size Digital Multimeter, AC/DC/Resistance/Temperature UT30C

Name: Palm Size Digital Multimeter, AC/DC/Resistance/Temperature UT30C
Brand: UNI-T
SKU: 131399455
Availability: InStock

Shanghai Sunlight Electronic Technology Company Limited

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

UNI-T

Model Number:

UT30C

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name UNI-T

Model Number UT30C

Measuring Voltage Range 200V/500V

Measuring Resistance Range 200Ω/2kΩ/20kΩ/200kΩ/20MΩ

Dimensions 130mm*74mm*41mm

Specifications:

Specifications	Range	Best Accuracy
Model		UT30C
DC Voltage (V)	200mV/2000mV/20V/200V/500V	±(0.5%+2)
AC Voltage (V)	200V/500V	±(1.2%+10)
DC Current (A)	2000uA/20mA/200mA/10A	±(1%+2)
Resistance (Ω)	200Ω/2kΩ/20kΩ/200kΩ/20MΩ	±(0.8%+2)
Temperature (°C)	-40°C~1000°C	±(1%+3)
Features
Transistor		Yes
Diode		Yes
Continuity Buzzer		Yes
Low Battery Display		Yes
Input Impedance for DC Voltage Measurement	10MΩ	Yes
Data Hold		Yes
Max Display	1999	Yes
Display Backlight		Yes
General Characteristic
Power	9V Battery(6F22)
LCD Size	48mm×16mm
Product Colour	Red and Grey
Product Net Weight	160g
Product Size	130mm x 74mm x 41mm
Standard Accessories	Test Lead, Battery, Holster
Standard Individual Packing	Gift Box,English Manual
Standard Quantity Per Carton	60 Pcs
Standard Carton Measurement	536mm x 310mm x 305mm (0.051 CBM per standard carton)
Standard Carton Gross Weight	Around 15.86 Kg
Optional Accessories*	Clip-On Test Lead Light (UT-TL), Built-In Test Lead Light (UT-L1), Built-In Test Lead Light Plus (UT-L2)

Contrast:

Specifications	Range	Best Accuracy
Model		UT30C	UT30D	UT30F
DC Voltage (V)	200mV/2000mV/20V/200V/500V	±(0.5%+2)	±(0.5%+2)	±(0.5%+2)
AC Voltage (V)	200V/500V	±(1.2%+10)	±(1.2%+10)
AC Voltage (V)	200mV/2V/20V/200V/500V			±(1%+3)
DC Current (A)	2000uA/20mA/200mA/10A	±(1%+2)	±(1%+2)
DC Current (A)	20mA/200mA/10A			±(1%+2)
AC Current (A)	200mA/10A			±(1.8%+3)
Resistance (Ω)	200Ω/2kΩ/20kΩ/200kΩ/20MΩ	±(0.8%+2)	±(0.8%+2)	±(0.8%+2)
Frequency (Hz)	2kHz~10MHz			±(0.1%+3)
Temperature (°C)	-40°C~1000°C	±(1%+3)
Features
Transistor		Yes	Yes	Yes
Diode		Yes	Yes	Yes
Continuity Buzzer		Yes	Yes	Yes
Square Wave Output			Yes
Low Battery Display		Yes	Yes	Yes
Input Impedance for DC Voltage Measurement	10MΩ	Yes	Yes	Yes
Data Hold		Yes	Yes	Yes
Max Display	1999	Yes	Yes	Yes
Display Backlight		Yes	Yes
General Characteristic
Power	9V Battery(6F22)
LCD Size	48mm×16mm
Product Colour	Red and Grey
Product Net Weight	160g
Product Size	130mm x 74mm x 41mm
Standard Accessories	Test Lead, Battery, Holster
Standard Individual Packing	Gift Box,English Manual
Standard Quantity Per Carton	60 Pcs
Standard Carton Measurement	536mm x 310mm x 305mm (0.051 CBM per standard carton)
Standard Carton Gross Weight	Around 15.86 Kg
Optional Accessories*	Clip-On Test Lead Light (UT-TL), Built-In Test Lead Light (UT-L1), Built-In Test Lead Light Plus (UT-L2)
