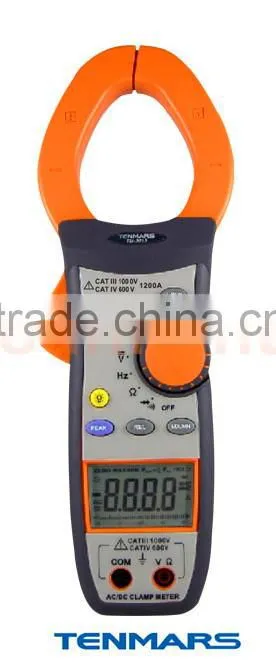

Help CenterTM-3013 1200A AC/DC Clamp Meter
Related Products

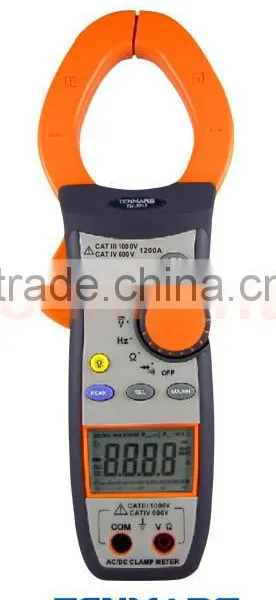

TM-3013 AC-DC Clamp Meter
Description:
CAT IV 600V, CAT III 1000V
3-3/4 digit LCD Backlit display with maximum reading of 4000.
Analog Bargraph.
AC voltage range: 0 to 750V.
AC current range: 0 to 1200A.
DC voltage range: 0 to 1000V.
DC current range: 0 to 1200A
Peak Hold, Data Hold, Min/Max.
Test Ranges: ACV, ACA, DCV, DCA, Resistance, Frequency, Diode, Continuity.
Work Light.
Auto Power Off.
Double injection outer case.
Specification:
Maximum Current |
1200 Amps |
Display |
4000 counts |
Max. Conductor Size |
52mm |
AC Current |
0.01A to 1200A |
AC Voltage |
0.1mV to 750V |
DC Voltage |
0.1mV to 1000V |
DC Current (REL) |
0.01A to 1200A |
Resistance |
0.1Ω to 4000Ω |
Continuity Buzzer |
Yes |
Diode |
Test voltage |
Frequency |
1Hz to 400KHz |
Analog Bargraph |
Yes |
Backlit Display |
Yes |
Work Light |
Yes |
Autoranging |
Yes |
Auto Power Off |
Yes |
Peak Hold |
Yes |
Data Hold |
Yes |
Min/Max |
Yes |
Dimensions |
266mm (L) x 91mm (W) x 22mm (D) |
