Specifications
Weakly Magnetic Materials Wet Magnetic Separator1.remove or separate Fe
2.ISO
3. large processing capacity
Weakly Magnetic Materials Wet Magnetic Separator | |
| 1. Model Name: | CTB(N,S) |
| 2. Usage: | Mineral Separation, Coal Washing, Chemical Sectors |
| 3. Magnetic Induction Intensity: | 120-240 mT |
| 4. Shell Diameter: | 400-1500mm |
| 5. Capacity: | 3-220 ton/hr |
It is widely used in mineral separation, coal washing and chemical sectors for wet classifying strong magnetic mineral of size 0-6mm, and the mineral are divided into two kinds of products: magnetic and non-magnetic material. The specific susceptibility of its separating strong magnetic minerals should be no less than 3000*10-6cm/g, which belongs to this type of minerals are magnetite, magnetic pyrite etc.
1. Adopt advanced magnetic circuit design. The magnetic material is made of magnetic materials with high remanence and high remanence and high coercivity. They have a very good resistance to demagnetization, poviding a strong guarantee for the magnetic effect.
2. With aluminum end caps, stainless steel flange wear.
3. Modular structure, easy to install, and easy to adjust the magnetic declination.
4. Advanced design, brand motor, reduced and SKF bearing, ensuring the machine runs stably for a long term.
5. The whole machine is made of high-quality material, beautiful and practical.
6. Providing the following common parts according to the customer requirements: bearing, seal, motor, reducer, the active and driven chains and outer drum skin.

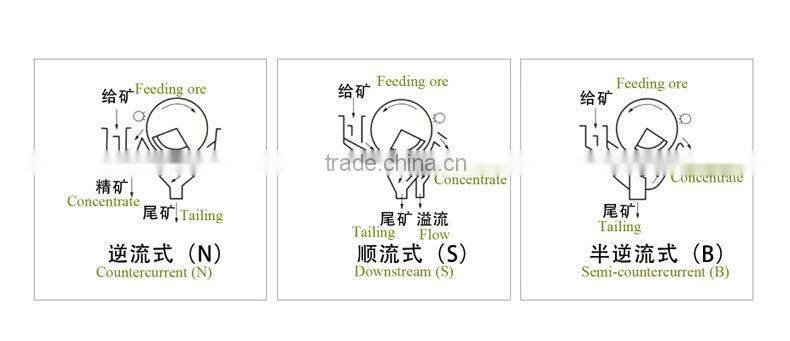

The one cylinder can be equipped with three types of tank, namely downstream launder, countercurrent launder and semi-countercurrent launder.

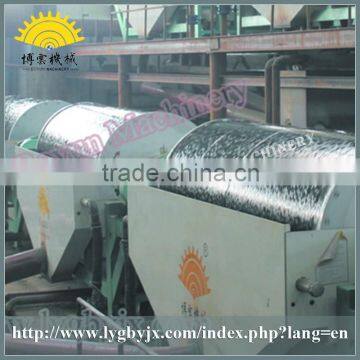

The Equipment Delivery Site And Product's Certificate
