Waste Recycle Wet Magnetic Separator

Waste Recycle Wet Magnetic Separator thumbnail-1
Waste Recycle Wet Magnetic Separator photo-1
US$ 10,000 - 1,000,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Magnetic Separator
Production Capacity:
80-150t/h
Contact Supplier Request Quote Chat Now
Lianyungang Boyun Machinery Co., Ltd.
Gold Verified Supplier
5Yrs
Payment & Shipping
Payment Methods:
Port of Shipment:
Lianyungang Shanghai Qingdao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Magnetic Separator
Production Capacity 80-150t/h
Place of Origin Jiangsu, China
Brand Name Boyun
Model Number BYCTB-1230
Voltage 380v
Power(W) 7500
Dimension(L*W*H) 1200*3000mm
Weight 6200kg
Certification ISO
Warranty one year
After-sales Service Provided Engineers available to service machinery overseas

Specifications

Waste Recycle Wet Magnetic Separator
1.rich ore concentrate
2.separate,remove Fe
3.2 types drum
4.ISO

Waste Recycle Wet Magnetic Separator





Features of Wet Magnetic Separator

  1. rotary type is mainly used in dry-separation of fine particle & not low-magnetic minerals
  2. high efficiency on damaging magnetic flocculation and improving high rich ore ratio
  3. CTS is applicated for separating particle size≤6mm, CTN is applicated for separating particle size ≤0.6mm,CTB is applicated for separating particle size ≤1mm



Sketch Picture Of Magnetic System

 Waste Recycle Wet Magnetic Separator

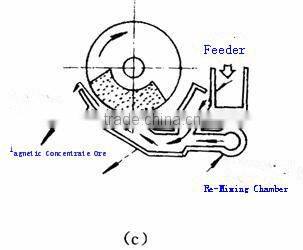

 Sketch Picture Of  Working & Drum





 Technical Data Of Wet Magnetic Separator

model

Drum size(Diameter×Length)(mm)

Magnetic induction strength of magnetic surface(mT)

Disposal capacity

Power(KW)

Rotary speed(r/min)

weight(KG)

instruction

Geometric center value

Of pole

Average value of sweeping field

The highest magnetic induction intensity

T/h

M3/h

CTS(N/B)-46

400×600



130

240

1-3

5

1.1

45

600



CTS(N/B)-66

600×600



145

240

1-10

16

1.1

40

750

Permanent-magnetic

CTS(N/B)-69

600×900



145

240

8-5

24

1.1

40

830



CTS(N/B)-612

600×1200



145

240

10-20

32

2.2

40

990



CTS(N/B)-618

600×1800



145

240

15-30

48

2.2

40

1330



CTS(N/B)-712

750×1200

120

155



15-30

48

3

35

1500



CTS(N/B)-718

750×1800

120

155

240

20-45

72

3

35

2100

Permanent magnetic

CTS(N/B)-918

900×1800

148

165

240

25-55

90

4

28

2900



CTS(N/B)-924

900×2400

148

165

240

35-70

110

4

28

3500



CTS(N/B)-1028

1050×1800

148

165

240

40-75

120

5.5

22

4000



CTS(N/B)-1021

1050×2100

148

165

240

45-88

140

5.5

22

4500



CTS(N/B)-1024

1050×2400

148

165

240

52-100

130

5.5

22

5000

Left and right

CTS(N/B)-1030

1050×3000

160

240

240

65-125

200

7.5

22

6200



CTS(N/B)-1218

1200×1800

148

165

240

47-90

140

5.5

19

5800



CTS(N/B)-1224

1200×2400

148

165

240

82-120

192

7.5

19

6200



CTS(N/B)-1230

1200×3000

148

165

240

80-150

240

7.5

19

6200



CTS(N/B)-1530

1500×3000

180

240

240

90-170

270

11

14

8100



CTS(N/B)-1540

1500×4000

180

240

240

115-220

350

11

14

9300









Technological Process

 Waste Recycle Wet Magnetic Separator





Application of wet magnetic separator

It is situable for minerals for wet magnetic separator such as magnetite, pyrrhotine, roasted ore and ilmenite, and it is also used for iron-removal operation of minerals such as coal, nonmetalliferous ore and building materials.

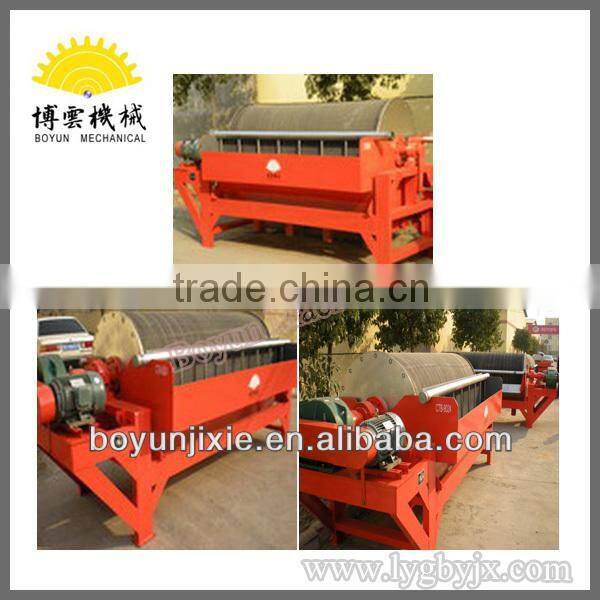

Product

Waste Recycle Wet Magnetic Separator





Certificate

 Waste Recycle Wet Magnetic Separator







Questions And Answer:



1.Q:Are you a factory or trading company?
A:We are a factory.



2.Q:Where is your factory located? How can I visit there?
A:Our factory is located in Lianyungang City, Jiangsu Province, China, about 5 hours train from Shanghai . All our clients, from home or abroad, are warmly welcome to visit us!



3.Q:How does your factory do regarding quality control?
A:Quality is priority. Boyun people always attach great importance to quality controlling from the very beginning to the very end.



4.Q:How can I contact with your company?

A:Tel:86-518-87802627  Fax:86-518-87802627

    Mobile Phone:86-15261337604

    Looking forward to your cooperation! We will be the strong backing of you!
