Ore Slurry Separator/Solid Liquid Separator /Big Ceramic Vacuum Filter/ Good Selling In Mining Machinery

Ore Slurry Separator/Solid Liquid Separator /Big Ceramic Vacuum Filter/ Good Selling In Mining Machinery thumbnail-1
Ore Slurry Separator/Solid Liquid Separator /Big Ceramic Vacuum Filter/ Good Selling In Mining Machinery thumbnail-2

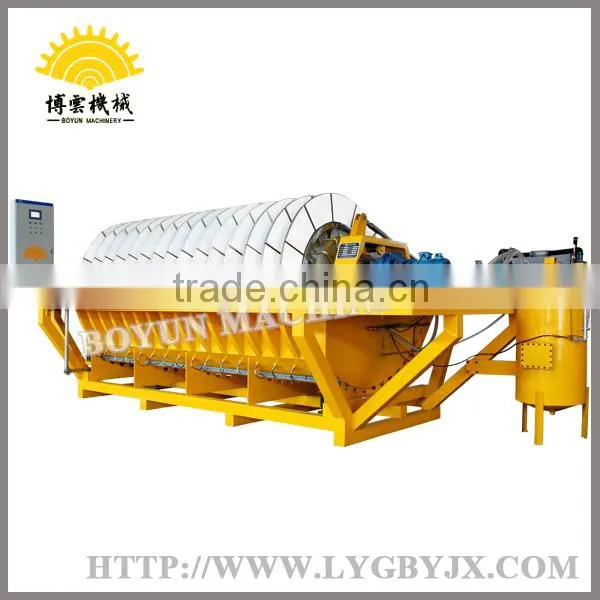

Ore Slurry Separator/Solid Liquid Separator /Big Ceramic Vacuum Filter/ Good Selling In Mining Machinery photo-1

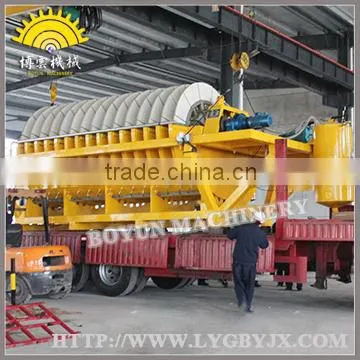

Ore Slurry Separator/Solid Liquid Separator /Big Ceramic Vacuum Filter/ Good Selling In Mining Machinery photo-2
US$ 2,580 - 48,600 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
Boyun
Model Number:
BY-60
Contact Supplier Request Quote Chat Now
Lianyungang Boyun Machinery Co., Ltd.
Gold Verified Supplier
6Yrs
Payment & Shipping
Payment Methods:
Port of Shipment:
Lianyungang Qingdao Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Jiangsu, China
Brand Name Boyun
Model Number BY-60
After-sales Service Provided Engineers available to service machinery overseas





Model Name:

BY Series

Filtering area:

1-120 m2

Filtering elements:

Ceramic plates

Self Clean:

Acid Washing and Ultrasonic Device

Discharging of cake:

Auto-discharging with scraper and belt conveyer

Discharging of filtrate:

Vacuum Liquid Discharging Tank



Usage

The ceramic vacuum disc filter is widely used for dewatering slurry ore, clean coal, waste coal and others, it also can be used for solid-liquid separation in metallurgy, chemical industry, environmental pollution, petroleum and sewage treatment. The fineness of materials is from -200to-450mesh and a variety of superfine materials.



Different project site

Ore Slurry Separator/Solid Liquid Separator /Big Ceramic Vacuum Filter/ Good Selling In Mining MachineryOre Slurry Separator/Solid Liquid Separator /Big Ceramic Vacuum Filter/ Good Selling In Mining Machinery



Specification of BY series



Specification

Filter area (m2)

Disc Quantity (pcs)

Filter plate diameter(m)

Main size(length*width*height) (m)

Weight (T)

Power (KW)

Operating power (KW)

Volume of tank

BY-1

1

1

1.52

1.7x1.5x1.5

1.4

5.28

<3.08

0.2

BY-2

2

2

1.52

1.9x1.5x1.5

2.1

5.4

<3.2

0.3

BY-4

4

2

1.52

2.5x2.5x2.5

2.6

6

<3.8

0.9

BY-6

6

2

1.52

2.8x2.9x2.5

2.9

7.3

<5.1

1.4

BY-9

9

3

1.52

3.1x2.9x2.5

3.5

12.36

<8.36

1.9

BY-12

12

4

1.52

2.96x2.9x2.5

4.5

13.08

<9.08

2.4

BY-15

15

5

1.92

3.56x2.9x2.5

4.9

13.8

<9.8

2.9

BY-18

18

6

1.92

3.86x2.9x2.5

5.3

14.52

<10.52

3.4

BY-21

21

7

1.92

4.16x2.9x2.5

5.7

15.24

<11.24

3.9

BY-25

25

5

1.92

3.62x3.45x2.95

6.1

16.7

<12.7

4.4

BY-30

30

6

1.92

3.92x3.45x2.95

6.9

19.7

<14.2

5.3

BY-35

35

7

1.92

4.22x3.45x2.95

7.7

20.05

<14.56

6.2

BY-40

40

8

1.92

4.52x3.45x2.95

8.5

22.06

<16.22

7.1

BY-45

45

9

1.92

4.82x3.45x2.95

9.3

25.72

<18.22

8

BY-60

60

12

2.06

5.77x3.45x2.95

11.7

30.46

<22.46

11

BY-80

80

16

2.1

6.97x3.45x2.95

14.9

43.78

<28.78

14

BY-90

90

15

2.1

6.7x4.2x3.5

15.2

51.3

<36.3

16

BY-102

102

17

2.1

7.3x4.2x3.5

17.6

60.9

<38.9

18

BY-120

120

20

2.1

8.2*4.2*3.5

21.2

66.22

<44.22

19

                                                                                                                                                            (Just for reference)

Benefits of ceramic filter

.Large processing capacity, energy saving is obvious

.Fully automatically, perfect automatic protection function

.Small occupied area, low transportation cost

. Easy installation and maintenance

. Reliable structure and long lifespan



Working sketch map

 Ore Slurry Separator/Solid Liquid Separator /Big Ceramic Vacuum Filter/ Good Selling In Mining Machinery







General structure

Ore Slurry Separator/Solid Liquid Separator /Big Ceramic Vacuum Filter/ Good Selling In Mining Machinery



About us







 Certificate

Questions

1.what is the raw material do you want to process? Iron ore, copper ore, or others

2.What is the feed concentration of raw material?

( usually for mineral processing 60%200mesh,for the cement 350mesh)

3.What is the capacity per hour do you need? wet type or dry type?

4.The particle size of material?

Any requirements and questions please fell free to contact us:+86-18052312057, Whatsapp:+86-18052312057
