China Large Capacity Iron Concenrates Wringer for Iron Ore Slurry Dewatering

China Large Capacity Iron Concenrates Wringer for Iron Ore Slurry Dewatering thumbnail-1
China Large Capacity Iron Concenrates Wringer for Iron Ore Slurry Dewatering thumbnail-2
China Large Capacity Iron Concenrates Wringer for Iron Ore Slurry Dewatering photo-1
China Large Capacity Iron Concenrates Wringer for Iron Ore Slurry Dewatering photo-2
US$ 5,280 - 48,600 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
boyun
Model Number:
by-60
Contact Supplier Request Quote Chat Now
Lianyungang Boyun Machinery Co., Ltd.
Gold Verified Supplier
5Yrs
Payment & Shipping
Payment Methods:
Port of Shipment:
QINGDAO LIANYUNGANG
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Jiangsu, China
Brand Name boyun
Model Number by-60
After-sales Service Provided Engineers available to service machinery overseas



Application

It has been widely used in concentrates,tailings,coal water ,ceramic grinding material dewatering, copper, iron, gold, silver, tin, aluminum, lead, zinc, nickel, palladium, cobalt, molybdenum, aluminum, phosphorus, coal, sulfur, silicon, quartz, mica, rare earth Zinc Oxide, chemical industry lead oxide, zinc sulfide, electro slag, leaching slag, slag cement dehydration and environmental pollution as well as waste acid treatment. The fineness of materials is from -200 to -450 and avariety of superfine materials.

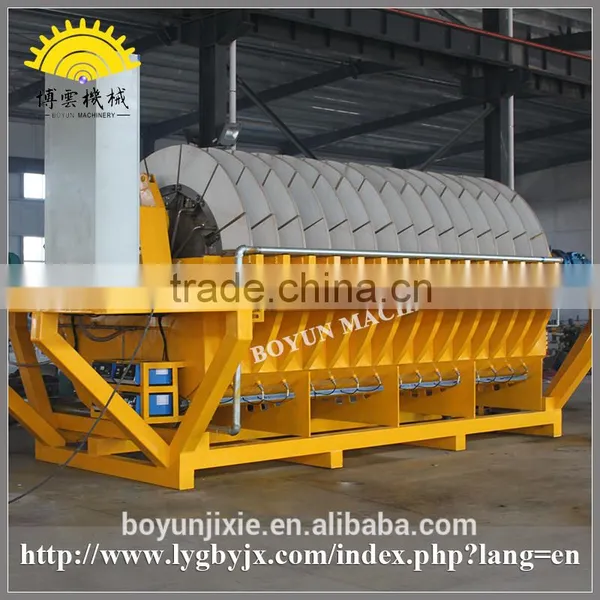

Project shows

China Large Capacity Iron concenrates Wringer for Iron Ore Slurry Dewatering





Models



Specification

Filter area (m2)

Disc Quantity (pcs)

Filter plate diameter(m)

Main size(length*width*height) (m)

Weight (T)

Power (KW)

Operating power (KW)

Volume of tank

BY-1

1

1

1.52

1.7x1.5x1.5

1.4

5.28

<3.08

0.2

BY-2

2

2

1.52

1.9x1.5x1.5

2.1

5.4

<3.2

0.3

BY-4

4

2

1.52

2.5x2.5x2.5

2.6

6

<3.8

0.9

BY-6

6

2

1.52

2.8x2.9x2.5

2.9

7.3

<5.1

1.4

BY-9

9

3

1.52

3.1x2.9x2.5

3.5

12.36

<8.36

1.9

BY-12

12

4

1.52

2.96x2.9x2.5

4.5

13.08

<9.08

2.4

BY-15

15

5

1.92

3.56x2.9x2.5

4.9

13.8

<9.8

2.9

BY-18

18

6

1.92

3.86x2.9x2.5

5.3

14.52

<10.52

3.4

BY-21

21

7

1.92

4.16x2.9x2.5

5.7

15.24

<11.24

3.9

BY-25

25

5

1.92

3.62x3.45x2.95

6.1

16.7

<12.7

4.4

BY-30

30

6

1.92

3.92x3.45x2.95

6.9

19.7

<14.2

5.3

BY-35

35

7

1.92

4.22x3.45x2.95

7.7

20.05

<14.56

6.2

BY-40

40

8

1.92

4.52x3.45x2.95

8.5

22.06

<16.22

7.1

BY-45

45

9

1.92

4.82x3.45x2.95

9.3

25.72

<18.22

8

BY-60

60

12

2.06

5.77x3.45x2.95

11.7

30.46

<22.46

11

BY-80

80

16

2.1

6.97x3.45x2.95

14.9

43.78

<28.78

14

BY-90

90

15

2.1

6.7x4.2x3.5

15.2

51.3

<36.3

16

BY-102

102

17

2.1

7.3x4.2x3.5

17.6

60.9

<38.9

18

BY-120

120

20

2.1

8.2*4.2*3.5

21.2

66.22

<44.22

19



Characteristics                                                                                                                                     .Large processing capacity, energy saving is obvious

.Fully automatically, perfect automatic protection function

.Small occupied area, low transportation cost

. Easy installation and maintenance

. Reliable structure and long lifespan

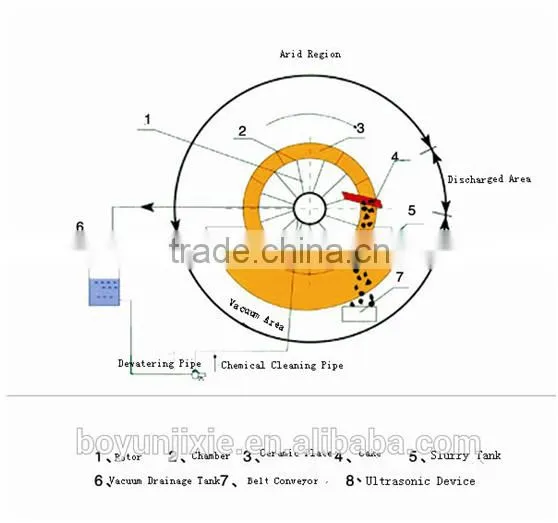

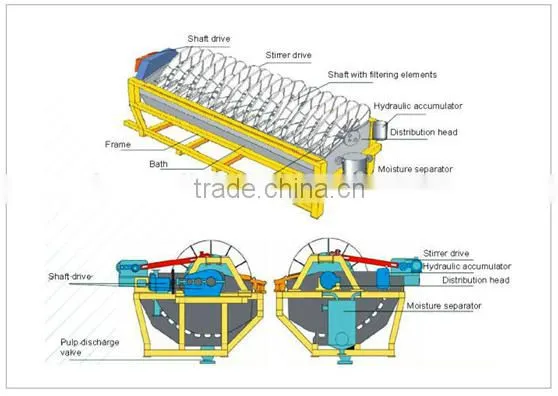

Working Principle & General structure

Filtering is a process of separating solid particles suspended in a gas or liquid.The basic principle is :under the action of the pressure difference,the suspension liquid(or gas) passes through a permeable medium(media),the solid particles are intercepted by medium,so as to realize the separation of liquid and solid

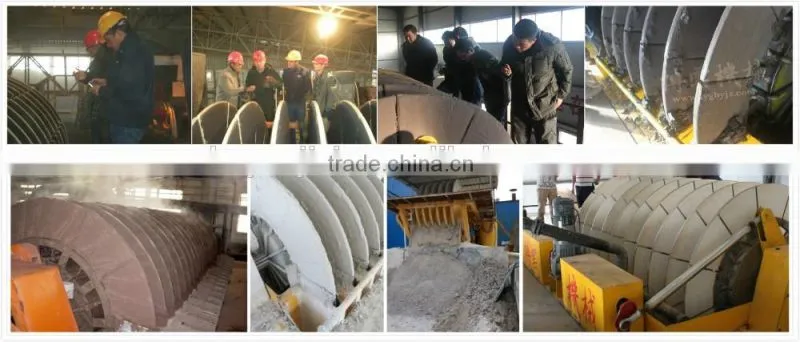

 Clients and us

China Large Capacity Iron concenrates Wringer for Iron Ore Slurry Dewatering





 Questions

1.what is the raw material do you want to process? Iron ore, copper ore, or others

2.What is the feed concentration of raw material?

( usually for mineral processing 60%200mesh,for the cement 350mesh)

3.What is the capacity per hour do you need? wet type or dry type?

4.The particle size of material?

Any requirements and questions please fell free to contact us:+86-18052312057, Whatsapp:+86-18052312057
