PET 230 Injection Molding Machine
US$ 1 - 10
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Preform Injection
Style:
Horizontal
Payment & Shipping
Payment Methods:
Port of Shipment:
NINGBO PORT
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
PET 170 Injection Molding MachineUS$ 1 - 10MOQ: 1 Set -
PET Bottle Preform Making Injection Molding MachineUS$ 70,000 - 100,000MOQ: 1 Set
-
Plastic Bottle Making Machine With Injection MouldsUS$ 1 - 10,000MOQ: 1 Set
-
Fruit Folding Plastic Box Injection Molding Making MachineUS$ 70,000 - 100,000MOQ: 1 Set
-
PP PE PVC PS Injection Molding MachineUS$ 70,000 - 100,000MOQ: 1 Set
Condition
New
Type
Preform Injection
Style
Horizontal
Brand Name
ONGO
Model Number
PET Z230
Place of Origin
Zhejiang, China
Plastic Type
Thermoplastic
Automatic
Yes
Injection Weight
540g(ps)
Injection Rate
1860g/s
Clamping Force
2300KN
Opening Stroke
475mm
Power(W)
33.3KW
Certification
ISO9001,CE
After-sales Service Provided
Engineers available to service machinery overseas
1.PET INJECTION MOLDING MACHINE
| item | PET230 | ||
| injection unit | |||
| screw diameter | mm | 55 | |
| screw L/D ration | L/D | 24 | |
| shot volume(theoretical) | cm3 | 593 | |
| injection weight (PS) | g | 540 | |
| injection rate | g/s | 186 | |
| injection pressure | Mpa | 138 | |
| screw speed | rpm | 155 | |
| clamping unit | |||
| clamping force | kN | 2300 | |
| open stroke | mm | 475 | |
| space between tie bars(WxH) | mm | 520x520 | |
| max mould height | mm | 530 | |
| min mould height | mm | 200 | |
| ejector stroke | mm | 140 | |
| ejector force | kN | 70 | |
| others | |||
| max pump pressure | Mpa | 16 | |
| pump motor power | kW | 18.5 | |
| heating power | kW | 14.8 | |
| machine dimension(LxWxH) | m | 5.68x1.5x2.14 | |
| oiltank cubage | l | 300 | |
| machine weight | t | 7 | |
2.FEATURE
- Optimized screw design reducing the acetaldehyde content of problem.
- Good quality plastics , the color of preform is more uniform ,forming more stable.
- Acoording to preform product characteristics,a number of structure ,can impove production efficency is higher and more stable process.
- Double ejection htdraulic structure ,accdording to the mould structure ,can improver production efficiency .
- Double clamping hydrualic equipment ,can significantly increase productivity,

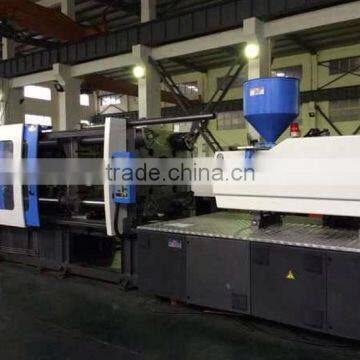

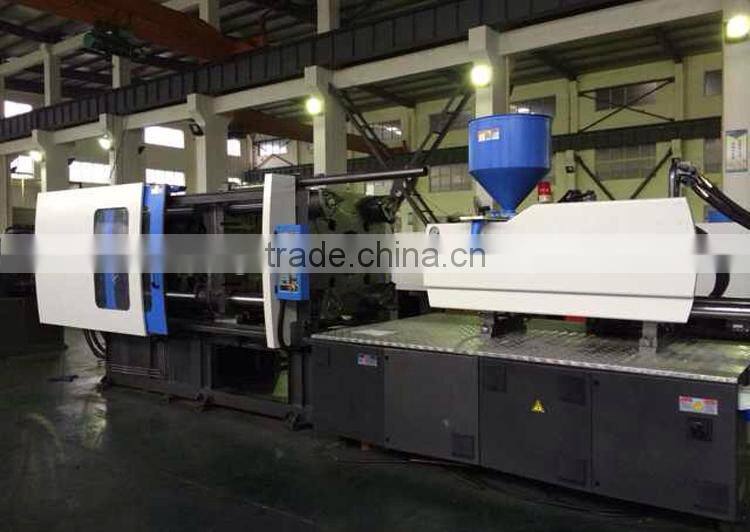

3,MACHINE PICUTRES
4.OUR CUSTOMER
FAQ
We offer one year warranty service machines for you without screw,and specialize in providing a full set of equipment solutions with mould and auxiliary for our customer .
