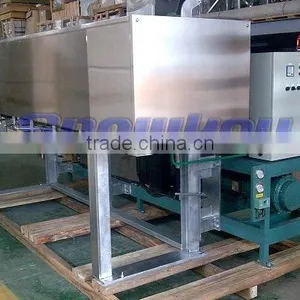

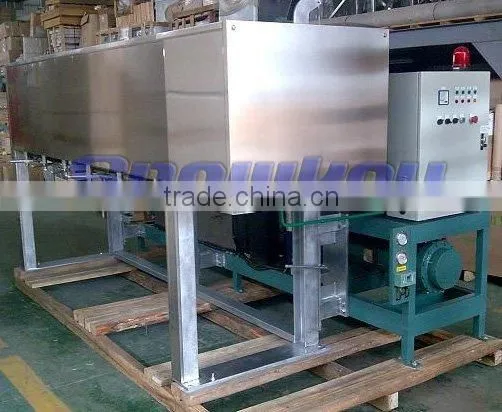

ice plant block ice machine(2.5T/DAY)

Specifications

1 Block Ice Machine
2 Specially designed for tropical conditions
3 PLC controls and self-protects
4 Certification:CE,ISO

 Application Fields
1 Ice factory at ports and docks;
2 Fresh preservation and cooling of aquatic products;
3 Fresh preservation of aquatic products and foods during line haul;
4 Temperature reduction and cooling in specific fields;
5  Ice sculpture;
6  Edible ice.

Work conditions
1 All-in-one refrigeration systems.
2 Specially-designed evaporator, with efficient thermal conductivity.
3 Clean and sanitary block ice, suitable for human consumption.
4 The refrigerant can be used globally, in line with national and international standards.
5 Dry-type expansion reduces refrigerant quantity, makes the unit compact and safe and lessen breakdowns.
6 PLC controls and self-protects from breakdowns during water filling, ice making and harvesting.

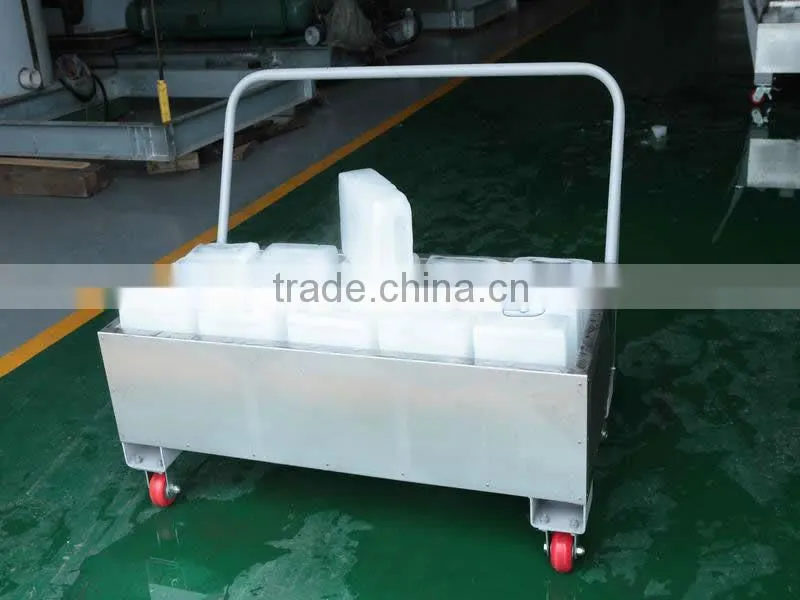

7 Production capacity: O.5~1OT/24hrs, with block ice weight of 5kg, 10kg, 15kg, 20kg and 25kg.
8 Shortest installation and commissioning time, loved by the users.
9 Movable, transportable with truck and ship.
Non-containerized Aluminum-alloy Direct Evaporation Block Ice Machine

Model	Block ice size	Block ice weight	Production Capacity	Ambient Temp.	Water Temp.	Condenser Type	Necessary Refrigeration Capacity	power Consumption	Dimensions of Evaporator	Net Weight
-	mm	kg	t/24h	°C	°C	-	kw	kw	LxWxH(mm) (Evaporater ncluded)	t
BIM05*F	158x130x280	5	0.5	33	20	Air-cooled	2.76	2.38	2100x1650x1450	1.2
BIM10*F	158x130x580	10	1				5.25	3.45	3940x1650x1700	2
	215x130x500	12.5							3940x1650x1700	2
	260x130x560	15							3940x1650x1700	2
BIM15*F	158x130x580	10	1.5				8.28	5.2	3940x1750x1850	2.8
	220x130x535	12.5							3940x1750x1850	2.8
	260x130x560	15							3940x1750x1850	2.8
BIM25*F	130x130x660	10	2.5			Air-cooled, water-cooled or evaporative type	13.8	9	3940x1750x2200	4
	190x130x570	12.5							3940x1750x2200	4
	220x130x585	15							3940x1750x2200	4
	214x130x860	20							3940x1750x2200	4
	260x140x880	25							3940x1750x2200	4

 Compressor Brand: Standard with Bitzer or Carrier, and other brands for customization.
1 There is no cooling water consumption for the units with air-cooled condenser;for the units bigger than 2.5T/day block ice machine, the air-cooled condenser will be outlaid.
2 Standard refrigerant is CFC gas, such as R22, R404A, R507A, R407C, etc., which should be designated when placing order.
3 Upon request, split units can be designed to install in a container to form one complete unit.
4 BIM standards for Block Ice Machine, and the subsequent number is tonnage×10 the symbol "*" will be substituted by a letter which represents condensing types (A for air-oooled, W for water-cooled and E for evaporative type).
5 With development of technology, the specifications in the form will be subject to change without notice
