Help CenterCHINA TOP1 2.5T Block Ice Machine Block Ice Maker for Africa
Related Products
Application Fields
1 Ice factory at ports and docks;
2 Fresh preservation and cooling of aquatic products;
3 Fresh preservation of aquatic products and foods during line haul;
4 Temperature reduction and cooling in specific fields;
5 Ice sculpture;
6 Edible ice.
Work conditions
1 All-in-one refrigeration systems.
2 Specially-designed evaporator, with efficient thermal conductivity.
3 Clean and sanitary block ice, suitable for human consumption.
4 The refrigerant can be used globally, in line with national and international standards.
5 Dry-type expansion reduces refrigerant quantity, makes the unit compact and safe and lessen breakdowns.
6 PLC controls and self-protects from breakdowns during water filling, ice making and harvesting.
7 Production capacity: O.5~1OT/24hrs, with block ice weight of 5kg, 10kg, 15kg, 20kg and 25kg.
8 Shortest installation and commissioning time, loved by the users.
9 Movable, transportable with truck and ship.

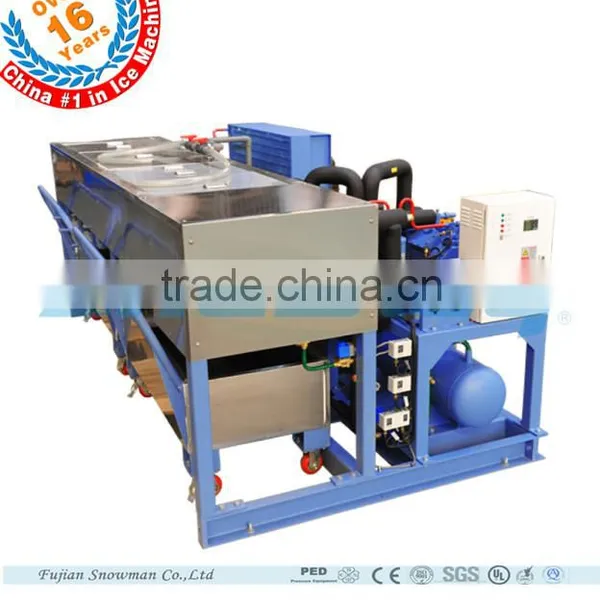

Non-containerized Aluminum-alloy Direct Evaporation Block Ice Machine
| Model | Block ice size |
Block ice weight |
Production Capacity |
Ambient Temp. |
Water Temp. |
Condenser Type |
Necessary Refrigeration Capacity |
power Consumption |
Dimensions of Evaporator | Net Weight |
| - | mm | kg | t/24h | °C | °C | - | kw | kw | LxWxH(mm) (Evaporater ncluded) |
t |
| BIM05*F | 158x130x280 | 5 | 0.5 | 33 | 20 | Air-cooled | 2.76 | 2.38 | 2100x1650x1450 | 1.2 |
| BIM10*F | 158x130x580 | 10 | 1 | 5.25 | 3.45 | 3940x1650x1700 | 2 | |||
| 215x130x500 | 12.5 | 3940x1650x1700 | 2 | |||||||
| 260x130x560 | 15 | 3940x1650x1700 | 2 | |||||||
| BIM15*F | 158x130x580 | 10 | 1.5 | 8.28 | 5.2 | 3940x1750x1850 | 2.8 | |||
| 220x130x535 | 12.5 | 3940x1750x1850 | 2.8 | |||||||
| 260x130x560 | 15 | 3940x1750x1850 | 2.8 | |||||||
| BIM25*F | 130x130x660 | 10 | 2.5 | Air-cooled, water-cooled or evaporative type |
13.8 | 9 | 3940x1750x2200 | 4 | ||
| 190x130x570 | 12.5 | 3940x1750x2200 | 4 | |||||||
| 220x130x585 | 15 | 3940x1750x2200 | 4 | |||||||
| 214x130x860 | 20 | 3940x1750x2200 | 4 | |||||||
| 260x140x880 | 25 | 3940x1750x2200 | 4 |
Compressor Brand: Standard with Bitzer or Carrier, and other brands for customization.
1 There is no cooling water consumption for the units with air-cooled condenser;for the units bigger than 2.5T/day block ice machine, the air-cooled condenser will be outlaid.
2 Standard refrigerant is CFC gas, such as R22, R404A, R507A, R407C, etc., which should be designated when placing order.
3 Upon request, split units can be designed to install in a container to form one complete unit.
4 BIM standards for Block Ice Machine, and the subsequent number is tonnage×10 the symbol "*" will be substituted by a letter which represents condensing types (A for air-oooled, W for water-cooled and E for evaporative type).
5 With development of technology, the specifications in the form will be subject to change without notice
