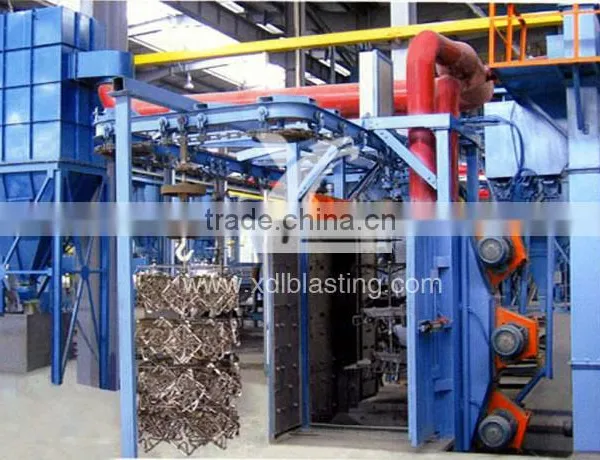

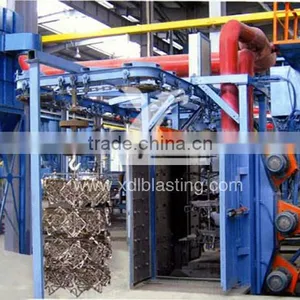

SXQ38 Series Catenary Chain Shot Blasting Machine
Non-Stop Continuous Moving Type
This series adopt non-stop continuous moving and rotation in blasting area. After passing the blasting area, the rust, oxide layers and sand will be removed away. It makes the surface bright and clean. It is widely applied in the industries of castings, engineering machinery such as bolster, couplers, gas cylinders, small and medium welding structures etc.
Model |
Unit |
SXQ383-4 |
SXQ385-4 |
Size of Blasting Jobs |
mm |
Φ800×1200 |
Φ1000×1500 |
Working Position Qty |
/ |
2 |
2 |
Blasting Turbine Qty |
Set |
4 |
4 |
Shot Blasting Capacity |
kg/min |
250×4 |
250×4 |
Blasting Turbine Power |
kw |
15×4 |
15×4 |
Max Loading of Hook Per |
kg |
300 |
500 |
Productivity |
hooks/h |
30~60 |
30~60 |
Size of Blasting Chamber |
mm |
7680x2000 x2900 |
7680x2000 x2900 |
Total Air Volume |
m3/h |
17000 |
19000 |
Total Power |
kw |
74 |
74 |
