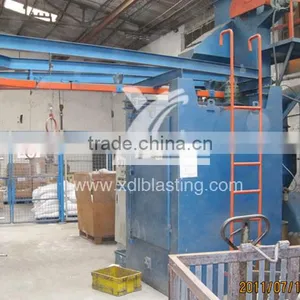

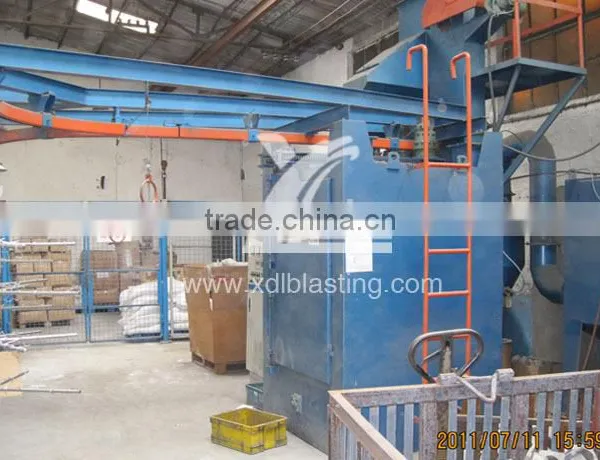

Q37 Series Hook Type Shot Blasting Machine
The jobs are hang on hook and then enter into blasting cabinet to accept blasting cleaning. There is a self-rotation device in hooks which can make jobs rotate in blasting cabinet. It applies to intensify and remove away sand and oxide layers of medium and large size of casting, forging steel structure and so on.
Model |
Unit |
SXQ376-2 |
SXQ378-2 |
SXQ379-2 |
SXQ3710-3 |
Size of blasting job |
mm |
Φ600×1100 |
Φ800×1500 |
Φ1000×1850 |
Φ1200×2000 |
Loading capacity |
kg |
600 |
800 |
1000 |
1000 |
Shot blasting |
kg/min |
2×120 |
2×200 |
2×250 |
3×200 |
Lifting capacity |
t/h |
15 |
24 |
30 |
40 |
Separating capacity |
t/h |
15 |
24 |
30 |
40 |
Air volume |
m3/h |
2800 |
4500 |
6600 |
9000 |
Total power |
kw |
22 |
30 |
36.55 |
50.2 |
Model |
Unit |
SXQ3720-4 |
SXQ3730-4 |
SXQ3750-4 |
SXQ3780-4 |
Size of blasting job |
mm |
Φ1400×2300 |
Φ1600×2200 |
Φ1800×2500 |
Φ2000x3000 |
Loading capacity |
kg |
2000 |
3000 |
5000 |
8000 |
Shot blasting |
kg/min |
4×200 |
4×200 |
4×250 |
4x250 |
Lifting capacity |
t/h |
48 |
48 |
60 |
60 |
Separating capacity |
t/h |
48 |
48 |
60 |
60 |
Air volume |
m3/h |
9000 |
12000 |
15000 |
20000 |
Total power |
kw |
65.27 |
70.4 |
78.4 |
81.5 |
