Specifications
sand filter for water treatment1.Factory
2.side-mount
mercial filter
Excellent large industrial sand filter for water treatment project
Features
1.Materials used are non-corrosive
2.Automatic Air release system enables easy release of trapped air during operation of the filter
3.laterals with fine gaps are able to keep out filter media and firt particles
3.UV-resistance surface allows the filter to work under direct sunlight
Functions
1. maximum working pressure: 250kPa/36psi/2.5bar
2. factory testing pressure: 400kPa/58psi/4.0bar
3. size of silica sand: 0.5-1.0mm
4. maximum filtration velocity: 50cbm/h/sq
5. maximum water temperature: 43 degree

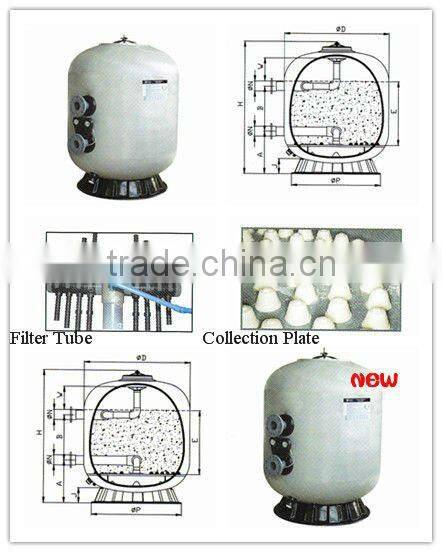

Pictures:
"NL"series commercial rapid sand filter

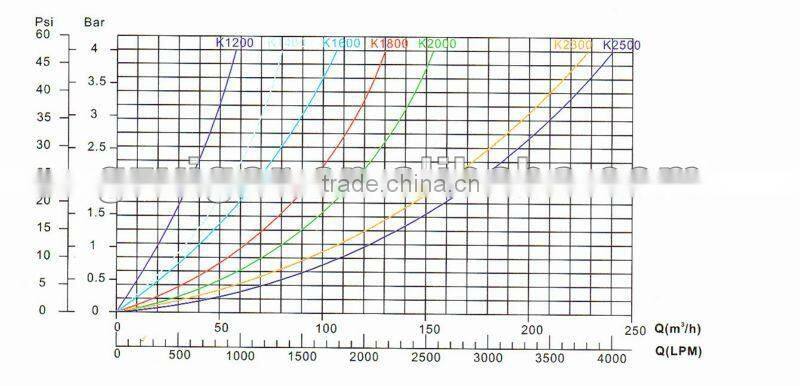

Technical characteristics
| Model No. | Valve Connections | Flow Rate |
Sand -kg 0.5-0.8MM |
Gravel -kg 1-2MM |
| K1200 | 3.0inch 90mm | 45m3/h | 1500 | 300 |
| K1400 | 4.0inch 110mm | 61m3/h | 2250 | 450 |
| K1600 | 4.0inch 110mm | 80m3/h | 2900 | 700 |
| K1800 | 6.0inch 160mm | 101m3/h | 3200 | 900 |
| K2000 | 6.0inch 160mm | 125m3/h | 4300 | 1100 |
| K2300 | 8.0inch 200mm | 175m3/h | 7600 | 1600 |
| K2500 | 8.0inch 200mm | 200m3/h | 8600 | 1800 |
