Specifications
1 Manual Operation2 Movable for wide blasting
3 Durable, Easy Operation

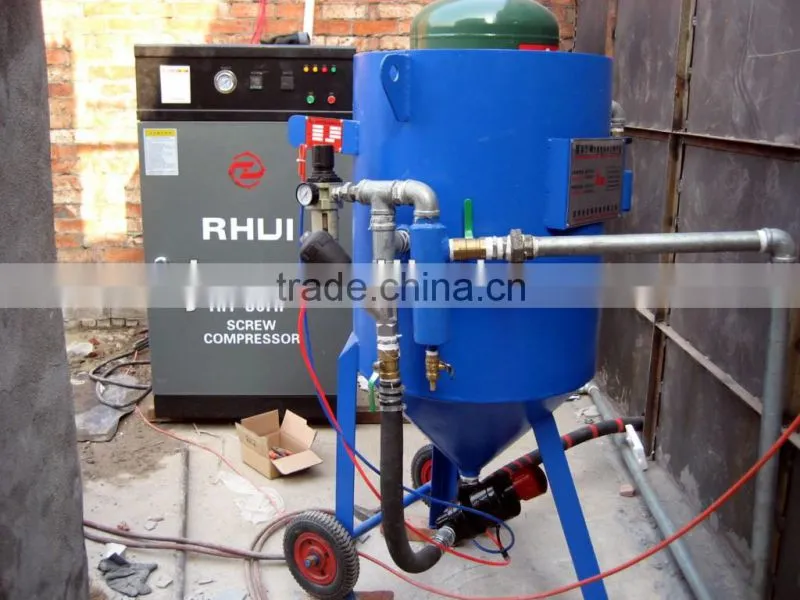

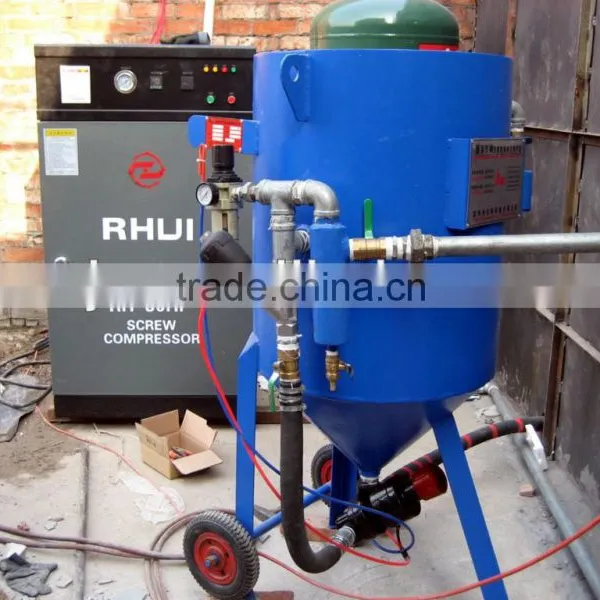

Portable Industrial Sand Blaster
Model |
XDL-600S-1G |
XDL-750S-1G |
|
Blasting Pot Diameter |
600mm |
750mm |
|
Equipment Height |
1400mm |
1700mm |
|
Blasting Pot Volume |
0.27M3 |
0.36M3 |
|
Nozzle Diameter |
6.5mm |
6.5mm |
|
Blasting Gun Quantity |
1 |
1 |
|
Blasting Hose Length |
18m |
18m |
|
Blasting Area per |
10~25m2/h |
15~35m2/h |
|
Surface Quality |
Sa2.5-Sa3.0 |
Sa2.5-Sa3.0 |
|
Compressed Air Consumption |
≥3m3 |
≥3m3 |
|
Compressed Air Pressure |
0.6~0.8Mpa |
0.6~0.8Mpa |
|
Control Type |
Manual Pneumatic Control |
||
Character |
Simple Structure, Low Failure Rate Low Cost, Movable and Less Consumption Parts |
||

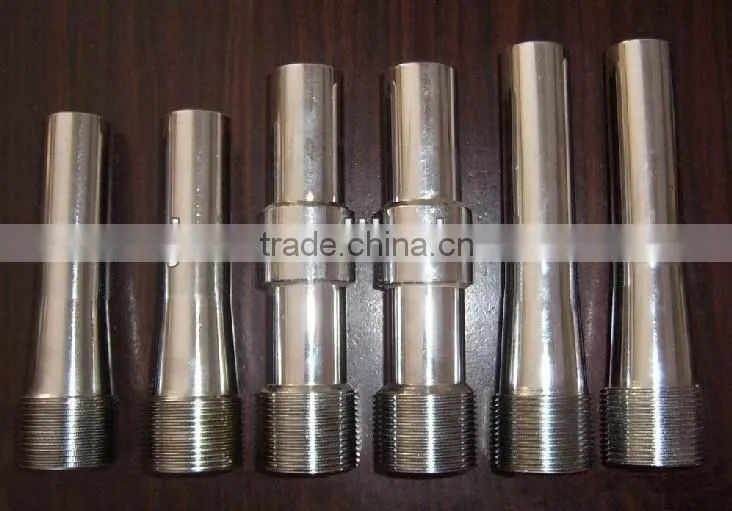

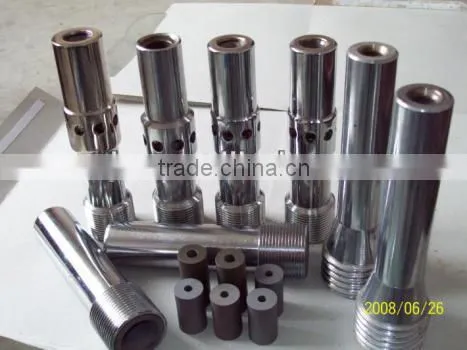

Blasting Nozzle
The nozzle is made of Carbide Alloy (Tungsten). The diameter of nozzle which the customer will choose should
according to practical situation. It has characters of high efficiency, long life service and easy maintenance.
S/N |
Nozzle Diameter mm |
Length mm |
Air Consumption m3/min |
Grits Consumption kg/h |
Productivity m2/h |
1 |
Φ6.5 |
130 |
3.9 |
1150 |
15-35 |
2 |
Φ8 |
155 |
4.1 |
1300 |
15-35 |
3 |
Φ9 |
165 |
4.9 |
1450 |
18-40 |
4 |
Φ10 |
170 |
6.1 |
1600 |
18-40 |
5 |
Φ11 |
170 |
8.8 |
1720 |
18-40 |
6 |
Φ12 |
175 |
9 |
1910 |
18-40 |
7 |
Φ13 |
175 |
11 |
2010 |
25-45 |
8 |
Φ14 |
175 |
13.5 |
2150 |
25-45 |

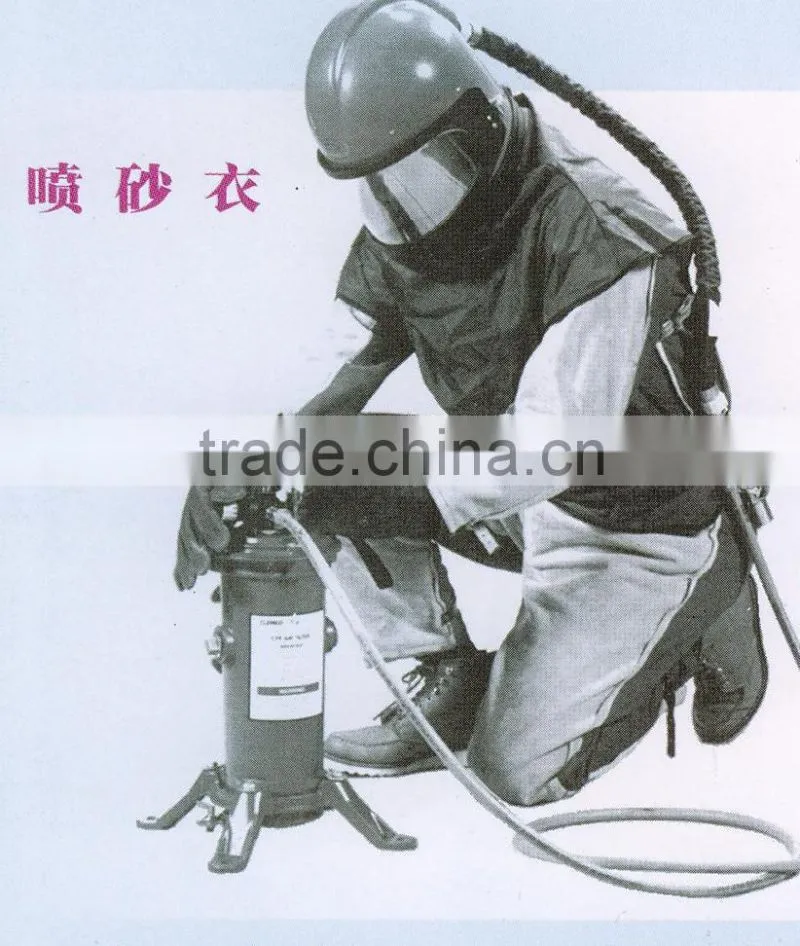

PPE (Personal Protective Equipment)
The air conditioning protective mask is special for operators in blasting booth. It adopts compressed air from outside
and filter. It can remove peculiar smell and oil containments and provide clean air for operators. The helmet is made of

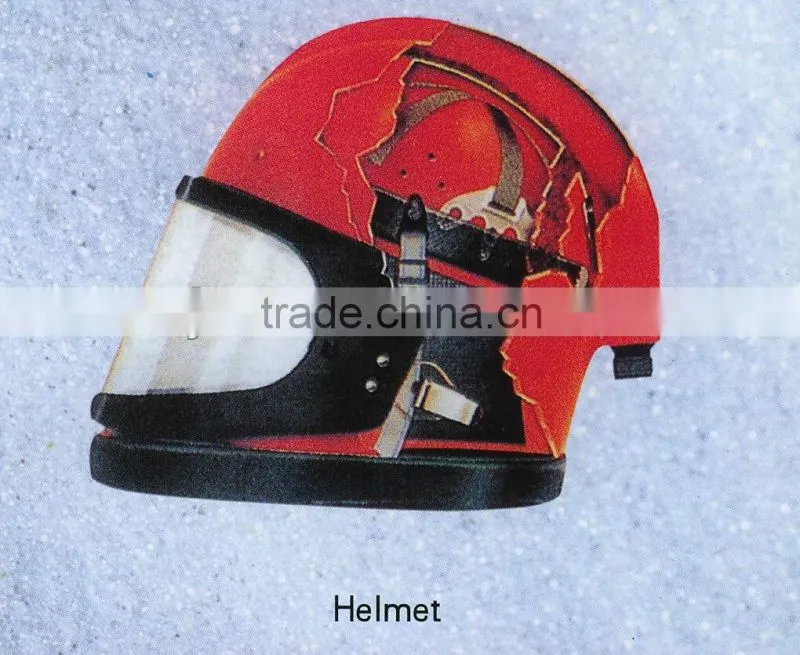

glass fiber reinforced plastics and light.
The air conditioning protective maks is comprised of air filters, temperature adjustment, dural helmet and clothes. The
air after filters will pass through temperature adjusting device (Temperature range 10~45C) and enter dural helmet. It
will make the operator feel that he is in good temperature, fresh air. In addition of good vision of helmet, it will improve
the working conditions for operators.
