Factory 2014 Excellent Fiberglass House Use Sand Filter for Portable Swimming Pool

Factory 2014 Excellent Fiberglass House Use Sand Filter for Portable Swimming Pool thumbnail-1
Factory 2014 Excellent Fiberglass House Use Sand Filter for Portable Swimming Pool photo-1
US$ 60 - 1,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
PIKES
Model Number:
FSF450-FSF650
Contact Supplier Request Quote Chat Now
Guangzhou Vigor Health Equipment Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Huangpu
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name PIKES
Model Number FSF450-FSF650



 Factory 2014 Excellent Fiberglass house use sand filter



Description



FSF SERIES TOP MOUNT SAND FILTER

Designed for easy set-up domestic pool, "FSF" Series filtration combo offers the right solution for home user who is looking for user-friendly and excellent filtration performance. "FSF" Series Filtration Combo includes top mount fiberglass filter tank, 6-way multiport valve, swimming pool pumps attached with base.

Features:



  • Suggested Installation: Domestic In-ground and above ground pool / hot spa tub
  • Max operating pressure 36 psi / 2.5 bar
  • Max temperature of 43°C (109°F) FEATURES
  • Universal standard of union connection provided
  • Suggested size of media : 0.5-0.8mm







 Technical characteristics







Model  NO

Filter  Area(m²)

Valve  Connections

Max  Flow  Rate

Sand(kg)

FSF350-6W

0.09

11/2inch  50mm

72lpm  4.32 m³/h

20

FSF400-6W

0.13

11/2inch  50mm

108lpm   6.48 m³/h

35

FSF450-6W

0.16

11/2inch  50mm

135lpm   8.10 m³/h

45

FSF500-6W

0.22

11/2inch  50mm

185lpm  11.10 m³/h

85

FSF650-6W

0.32

11/2inch  50mm

260lpm  15.60 m³/h

145









 Detail Picture:

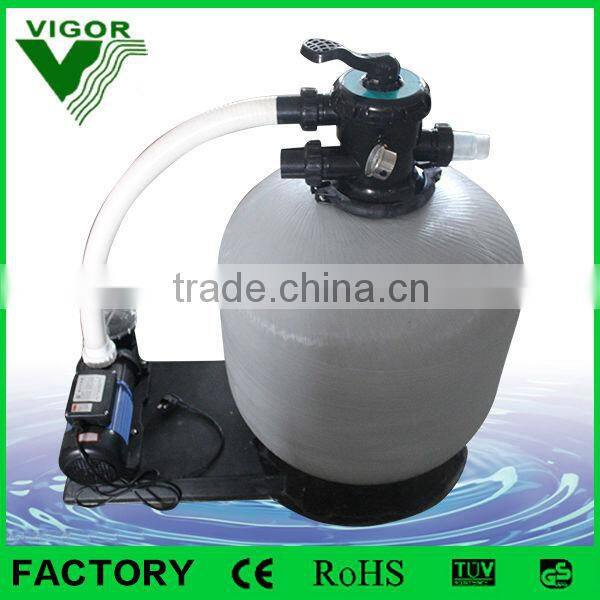

 Factory 2014 Excellent Fiberglass house use sand filter for portable swimming pool









Detail of  the sand filter valve

















Sand filter Color customised



 if your quantity is up to 150-200 pcs,  Color customised is acceptance.



we have multi-color for your to choose



















  More series of our sand filter















Instruction of install our pool filter :



INSTALLATION



Installation had been made simple, the only tools



needed is a screwdriver and pipe sealant for plastic.



Locate the Filter on hard, level surface, preferably in a



dry, shaded, and well-ventilated area.



1/ Place the empty tank in position.



2/ Fill the tank with



water to the level that covers the laterals



about 1/3 of the tank is recommended. This will avoid



damages to the laterals by the force of the



sand when pouring into the filter.







Manufacturing factory & Production Process of our sand filter







 We have a experience and expertise together with our devoted staffs.



Our goal is " Quality is our culture and we will try best to provide the unsurpassed customer service"








 Our company and office and join the exhibition



we, vigor company have been attend different exibition and our pool,spa and sauna product is



hot sale overseas and  gain the trust from our customer.
