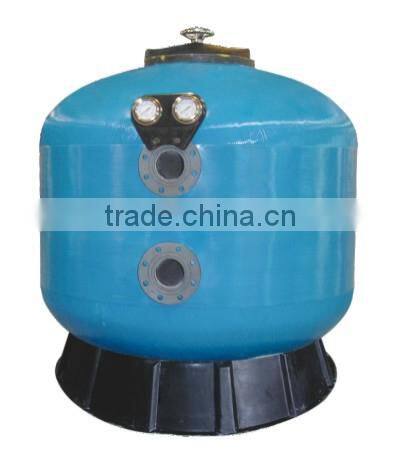

4bar large fiberglass sand filter for pool filtration system and water treatment
Description
COMMERCIAL SAND FILTER
Swimming equipment Factory best industrial water well sand filter
Commercial Sand Filters satisfy the requirements of the most demanding installations including pools installed with in poor cleaning systems, spas, fountains, public swimming pools, aquariums and industrial water treatment.
Features:
- Swimming equipment Factory best industrial water well sand filter
- Non-corrosive fiberglass and resin
- UV resistance, suitable for operation under prolong sunlight

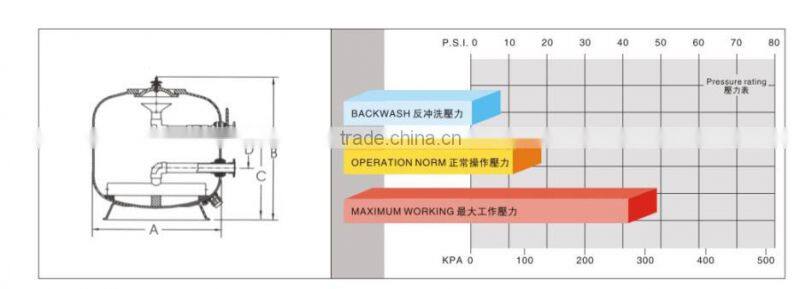

- Max operating pressure 36 psi (2.5bar) / 56 psi (4.0bar)
- Max temperature of 43C (109F)
- Maximum filtration velocity: 50m3/h
- Suggested size of media : 0.5-0.8mm sand and 1-2mm gravel
Optional accessories:
- Filtration system: Laterals / Nozzles
- Others: Sight glass / Manhole/ 33mm union drain / Air purge
Technical characteristics
Swimming equipment Factory best industrial water well sand filter
| Model No. | Valve Connections | Flow Rate |
Sand -kg 0.5-0.8MM |
Gravel -kg 1-2MM |
| PK1200 | 3.0inch 90mm | 45m3/h | 1500 | 300 |
| PK1400 | 4.0inch 110mm | 61m3/h | 2250 | 450 |
| PK1600 | 4.0inch 110mm | 80m3/h | 2900 | 700 |
| PK1800 | 6.0inch 160mm | 101m3/h | 3200 | 900 |
| PK2000 | 6.0inch 160mm | 125m3/h | 4300 | 1100 |
| PK2300 | 8.0inch 200mm | 175m3/h | 7600 | 1600 |
| PK2500 | 8.0inch 200mm | 200m3/h | 8600 | 1800 |
Detail Pictures:
Swimming equipment Factory best industrial water well sand filter
More series of our sand filter
Instruction of install our pool filter :
INSTALLATION
Installation had been made simple, the only tools
needed is a screwdriver and pipe sealant for plastic.
Locate the Filter on hard, level surface, preferably in a
dry, shaded, and well-ventilated area.
1/ Place the empty tank in position.
2/ Fill the tank with
water to the level that covers the laterals
about 1/3 of the tank is recommended. This will avoid
damages to the laterals by the force of the
sand when pouring into the filter.
Manufacturing factory & Production Process of our sand filter
We have a experience and expertise together with our devoted staffs.
Our goal is " Quality is our culture and we will try best to provide the unsurpassed customer service"
Our company and office and join the exhibition
we, vigor company have been attend different exibition and our pool,spa and sauna product is hot sale overseas
and get gain the trust from our customer.
