Professional Pikes Swimming Pool Fiberglass Sand Media Filter

Professional Pikes Swimming Pool Fiberglass Sand Media Filter thumbnail-1
Professional Pikes Swimming Pool Fiberglass Sand Media Filter photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Type:
Other
Medium Material:
Other
Contact Supplier Request Quote Chat Now
Guangzhou Vigor Health Equipment Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
huangpu
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Other
Medium Material Other
Place of Origin Guangdong, China
Brand Name Pikes
Model Number P700
Certification ISO 9001:2008

Professional Pikes Swimming Pool Fiberglass Sand Media Filter



 Professional Pikes Swimming Pool Fiberglass Sand Media Filter





Description

P SERIES TOP MOUNT SAND FILTER

Bobbin-wound fiberglass reinforced tank is still the most popular standard in the industry after all.

With UV-resistant surface finish,

it is able to operate under prolong sunlight for years of reliability.

 "P" Series (P350-P1400) filters are equipped with a six-position,

1.5", 2", & 2.5" multiport valve and ABS laterals.





Features:

  • Suggested Installation: Domestic In-ground and above ground pool / hot spa tub
  • Max operating pressure 36 psi / 2.5 bar
  • Max temperature of 43°C (109°F) FEATURES
  • Universal standard of union connection provided
  • Suggested size of media : 0.5-0.8mm



 Technical characteristics



Model  NO

Filter  Area(m²)

Valve  Connections

Max  Flow  Rate

Sand(kg)

P350

0.09

11/2inch  50mm

72lpm  4.32 m³/h

20

P400

0.13

11/2inch  50mm

108lpm   6.48 m³/h

35

P450

0.16

11/2inch  50mm

135lpm   8.10 m³/h

45

P525

0.22

11/2inch  50mm

185lpm  11.10 m³/h

85

P625

0.32

11/2inch  50mm

260lpm  16.0m³/h

145

P700

0.40

11/2inch  50mm

325lpm  19.50 m³/h

210



 Detail Picture:







 Professional Pikes Swimming Pool Fiberglass Sand Media Filter

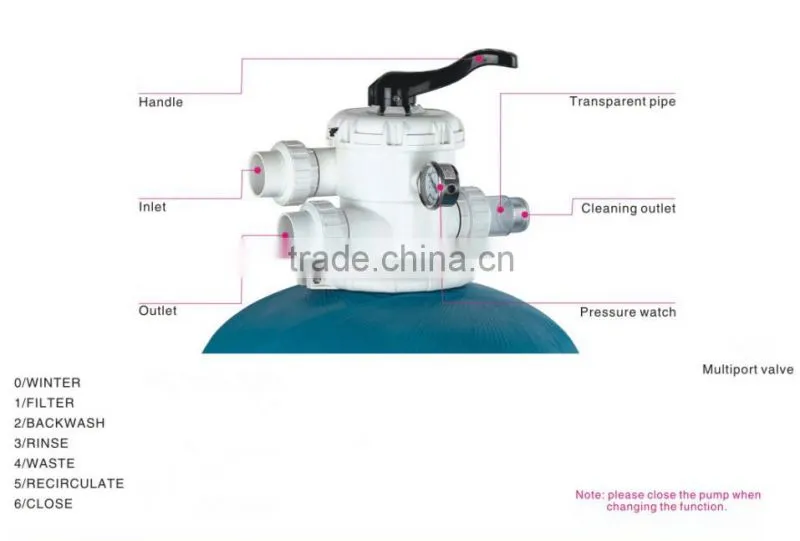

Detail of  the sand filter valve



Professional Pikes Swimming Pool Fiberglass Sand Media Filter



Description

SS SERIES TOP MOUNT SAND FILTER



Voluble molding of fiber glass reinforced plastics,corrosion resistant,

good abrasion resistance ,deforming - proof.Uniquely designed distribution make a stable

And even water flow to improve drainage system.easy to install ,maintain .Outlet turbiditv:<2FTU



Features:

  • Suggested Installation: Domestic In-ground and above ground pool / hot spa tub
  • Max operating pressure 36 psi / 2.5 bar
  • Max temperature of 43 ° C (109 ° F)
  • Universal standard of union connection provided
  • Suggested size of media : 0.5-0.8mm



 Technical characteristics

Model  NO

Filter  Area(m²)

Valve  Connections

Max  Flow  Rate

Sand(kg)

SS450

0.16

11/2inch  50mm

135lpm  8.10 m³/h

45

SS500

0.22

11/2inch  50mm

185lpm  11.1m³/h

85

SS650

0.32

11/2inch  50mm

260lpm  15.6m³/h

145

SS700

0.40

11/2inch  50mm

325lpm  19.5m³/h

210

SS700(B)

0.41

2inch  63mm

336lpm  20.16m³/h

215
SS800 0.5 2inch  63mm 435lpm   26.10m³/h  355
SS900 0.66 2inch  63mm 550 lpm  33.00m³/h

470
 SS1000 0.82 2inch  63mm 670lpm  40.20m³/h 620
 SS1200 1.17 2inch  63mm 880lpm  52.80m³/h

860



Detail Pictures:





Professional Pikes Swimming Pool Fiberglass Sand Media FilterProfessional Pikes Swimming Pool Fiberglass Sand Media Filter





Sand filter Color customised

 if your quantity is up to 150-200 pcs,  Color customised is acceptance.

we have multi-color for your to choose



 Professional Pikes Swimming Pool Fiberglass Sand Media Filter





  More series of our sand filter



 Professional Pikes Swimming Pool Fiberglass Sand Media Filter



Instruction of install our pool filter :

INSTALLATION

Installation had been made simple, the only tools

needed is a screwdriver and pipe sealant for plastic.

Locate the Filter on hard, level surface, preferably in a

dry, shaded, and well-ventilated area.

1/ Place the empty tank in position.

2/ Fill the tank with

water to the level that covers the laterals

about 1/3 of the tank is recommended. This will avoid

damages to the laterals by the force of the

sand when pouring into the filter.



Manufacturing factory & Production Process of our sand filter



 We have a experience and expertise together with our devoted staffs.

Our goal is " Quality is our culture and we will try best to provide the unsurpassed customer service"

 Professional Pikes Swimming Pool Fiberglass Sand Media Filter

Professional Pikes Swimming Pool Fiberglass Sand Media Filter


 Our company and office and join the exhibition

we, vigor company have been attend different exibition and our pool,spa and sauna product is

hot sale overseas and  gain the trust from our customer.

  Professional Pikes Swimming Pool Fiberglass Sand Media Filter



 Welcome to contact with me, we will offer you more about our sand filter!
