CE approved adjustable mobile loading ramp
1.Load capacity:6-30T
2.Customer-design
3.Adjustable leg support
4.Electric control or manual control
5.Emergency buttons
Parameters:
Model # |
Load Capacity |
Working height Range(m) |
Maximum elevations |
Overall Dimensions(m) |
YDCQ-5 |
5 |
1.0~1.7 |
≤13o |
11×2.08×1.3 |
YDCQ-6 |
6 |
1.0~1.7 |
≤13o |
11×2.08×1.3 |
YDCQ-8 |
8 |
1.0~1.7 |
≤13o |
11×2.08×1.3 |
YDCQ-10 |
10 |
1.0~1.7 |
≤13o |
11×2.08×1.3 |
YDCQ-12 |
12 |
1.0~1.7 |
≤13o |
11×2.08×1.3 |
YDCQ-15 |
15 |
1.0~1.7 |
≤13o |
11×2.08×1.3 |
Main features:
1)Hydraulic system:
With handle pump, screw the return valve clockwise.Move the handle stick, to lift the ramp slowly.When the return valve is screwed counterclockwise, the hydraulic oil will go back, and the ramp will fall down on its own weight.
2)Heavy-duty mobile chakra
Mobile wheels adopt solid tyres, need not inflatable, durable, cooperate to brake pad, guarantee the operation safety.
3)Spin adjustable a leg
Prevent forklift into vehicle gravity concentrate on vehicle tail produce car overturned. Can fully guarantee the operation safety. The different height to vehicles, suitable for height adjustment of vehicles
4)Manual hydraulic elevator system
Using artificial hydraulic power, don't must external electric power can be easily realized climbing height adjustment.
5)Fold-down transition board
The tail and transition plate and forklift folding hook can be convenient mobile climbing.
6)Hinge transition
Adjustable length of cable chains used to hook vehicles, make climbing and vehicles, even shift, always close together joint.
7)Bridge body structure
Bridge body strength, high bearing capacity bridge by high strength manganese steel body skeleton into truss add structure: compound high strength, the characteristics of large carrying capacity.
8)Antiskid steel nets
Laying a layer above the bridge body slippery anilox steel plates. Mesh is distorted and hollow out, not only improved the reliability and work can prevent grease, dirt and ice accumulation.
9)Safety crack-proof valve
In addition to the relief valve, in order to prevent the tubing rupture, occur because of the accident, hydraulic systems of decline set in pipeline rupture types.the valve, when oil will automatically lock.

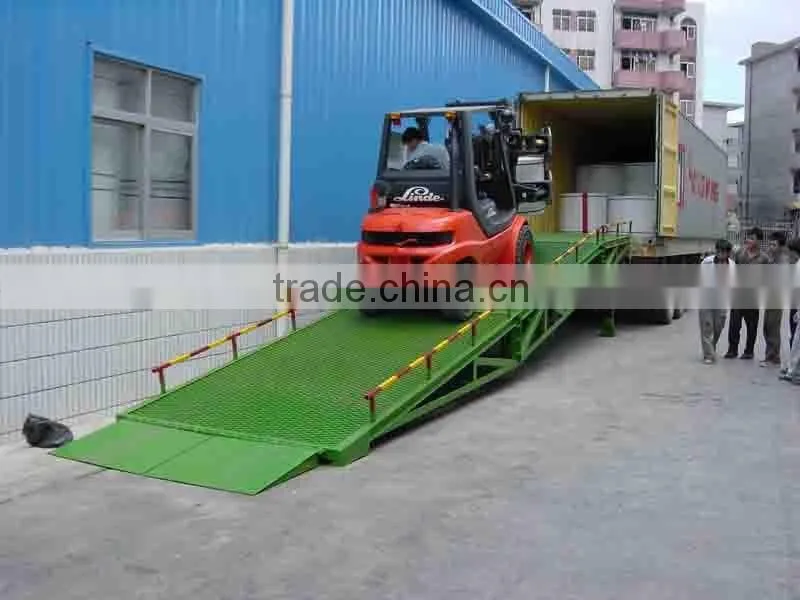

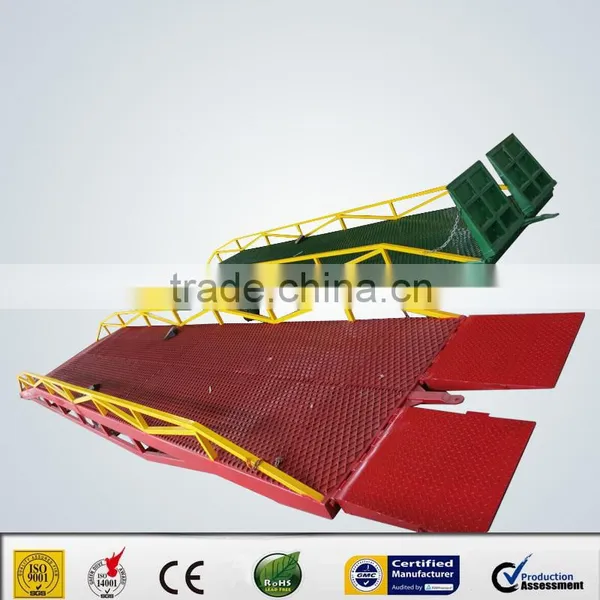

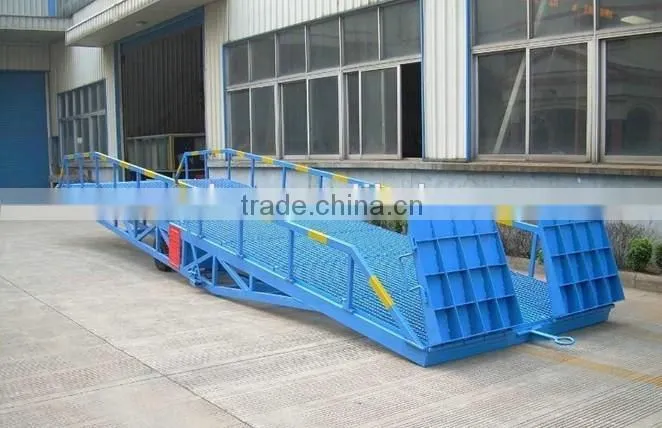

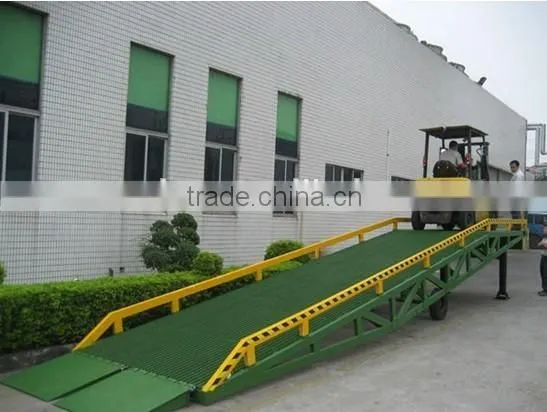

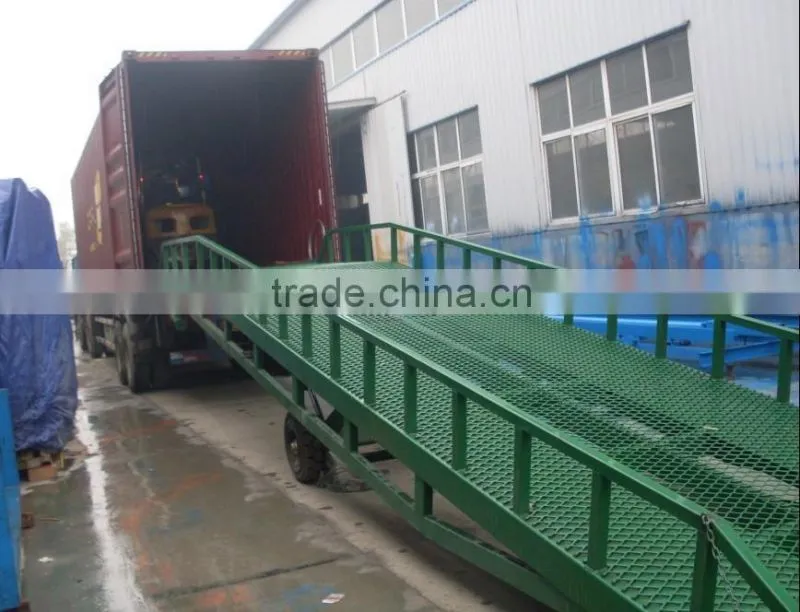

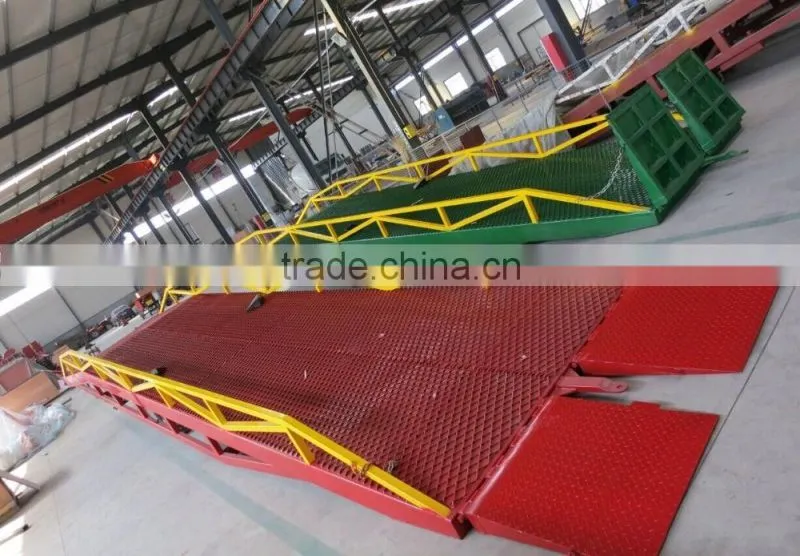

Photos:

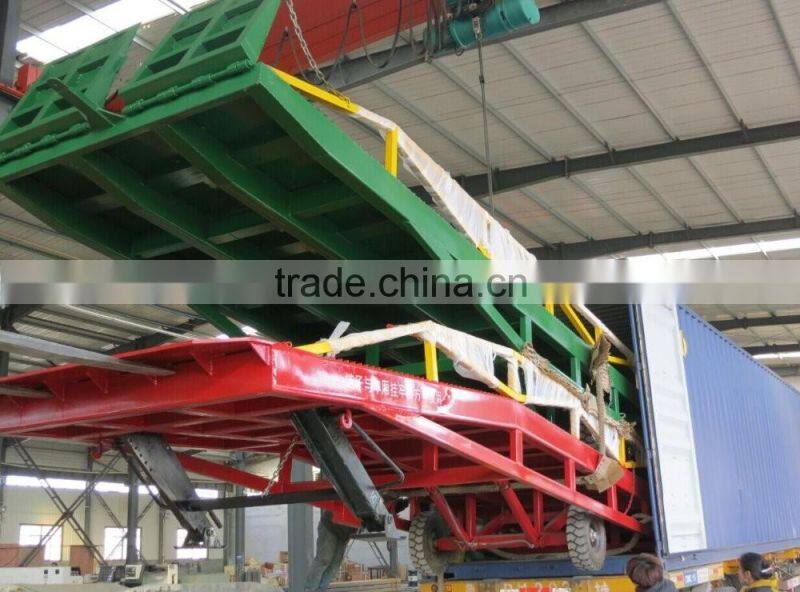

Packaging & Shipping:
Our service:
1. All the machines will be full tested before shipment
2. The total machine guarantee is 12 months
3. 24 Hours technical support, email, telephone or video online
4. User-friendly english manual for machine using and maintaining
5. Several sets wearing parts will be free for you
Anything we can do for you pls feel free to contact us.
