Home > Manufacturing & Processing Machinery > Lifting Equipment > Hoist > European SWF Model Wire Rope Hoist
European SWF Model Wire Rope Hoist
US$ 3,000 - 8,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Jiangsu, China
Brand Name:
LIFTKING
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai Ningbo Guangzhou or others available
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
European Style Wire Rope Electric HoistUS$ 3,500 - 8,000MOQ: 1 Set -
European Type Single Girder Electric Wire Rope HoistUS$ 3,500 - 8,000MOQ: 1 Set
-
Single Rail Wire Rope HoistUS$ 3,500 - 8,000MOQ: 1 Set
-
Single Beam Low Headroom Electric HoistUS$ 3,500 - 8,000MOQ: 1 Set
-
Single Beam Low Headroom Wire Rope HoistUS$ 3,500 - 8,000MOQ: 1 Set
Condition
New
Place of Origin
Jiangsu, China
Brand Name
LIFTKING
Model Number
EWRH-S
Usage
Construction Hoist
Power Source
Electric
Sling Type
Wire Rope
Maximum Lifting Weight
20t
Maximum Lifting Height
18m
Lift Speed
5/0.8m/min
Certification
CE
Warranty
12months
After-sales Service Provided
Engineers available to service machinery overseas

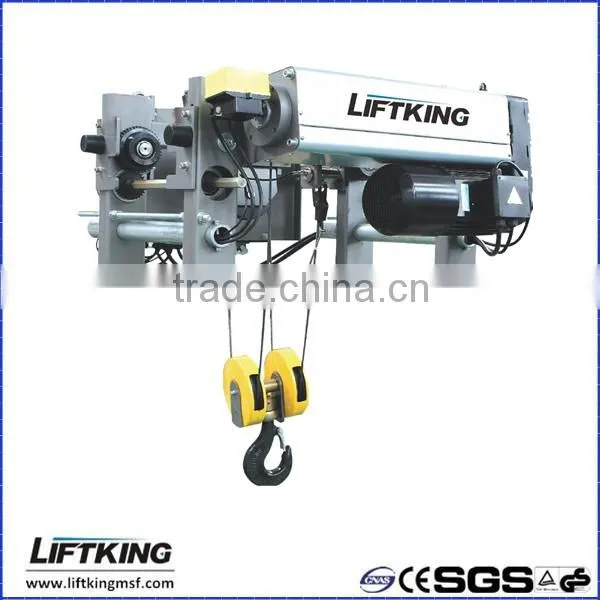

LIFTKING Brand Low headroom European SWF style electric wire rope hoist with Nord motor
Advantages :
1. Hoist lifting motor : three-in-one , high quality domestic brand or ABM imported from Germany optional .
2. Traveling motor : three-in-one, Nord from Germany , with Inverter .
3. Quick electrical connector .
4. Hand switch protection grade : IP65 .
5. Equipped with worm adjusting limit switch , Overload limiter.
6. Working grade : M5 .
Low headroom European SWF style electric wire rope hoist Overview :
Low headroom European SWF style electric wire rope hoist details :
Low headroom European SWF style electric wire rope hoist technical parameters :
| Type | Single Girder Low Headroom | ||||||||||||||||||||
| Capacity (t) | 2000 | 3200 | 5000 | 8000 | |||||||||||||||||
| Lifting Height (m) | 6 | 9 | 12 | 15 | 18 | 6 | 9 | 12 | 15 | 18 | 6 | 9 | 12 | 15 | 18 | 6 | 9 | 12 | 15 | 18 | |
| Lifting Speed (m/min) | 5/0.8 | 5/0.8 | 5/0.8 | 5/0.8 | |||||||||||||||||
| Lifting Motor (kw) | 3.2/0.45 | 3.2/0.45 | 6.1/1 | 9.5/1.5 | |||||||||||||||||
| Traveling Speed (m/min) | 5/20 | 5/20 | 5/20 | 5/20 | |||||||||||||||||
| Traveling Motor (kw) | 0.37 | 0.37 | 0.37 | 0.75 | |||||||||||||||||
| Wire Rope | Breaking Force | 2160N/mm^2 | |||||||||||||||||||
| Safety factor | 4.5:1 | ||||||||||||||||||||
| Insulation Grade | F | ||||||||||||||||||||
| Control Panel | IP65 | ||||||||||||||||||||
|
Working Grade (FEM/ISO) |
Lifting | 3M / M6 | 2M / M5 | 2M / M5 | 3M / M6 | ||||||||||||||||
| Traveling | 2M /M5 | 2M /M5 | 2M /M5 | 2M /M5 | |||||||||||||||||
|
Dimension (mm) |
H | 210 | 210 | 260 | 325 | ||||||||||||||||
| C | 556 | 556 | 596 | 750 | |||||||||||||||||
| B | 150-300 | 150-300 | 200-350 | 200-410 | |||||||||||||||||
| Type | Single Girder Low Headroom | ||||||||||||||||||||
| Capacity (t) | 10000 | 12500 | 16000 | 20000 | |||||||||||||||||
| Lifting Height (m) | 6 | 9 | 12 | 15 | 18 | 6 | 9 | 12 | 15 | 18 | 6 | 9 | 12 | 15 | 18 | 6 | 9 | 12 | 15 | 18 | |
| Lifting Speed (m/min) | 5/0.8 | 4/0.6 | 4/0.6 | 4/0.6 | |||||||||||||||||
| Lifting Motor (kw) | 9.5/1.5 | 12.5/2 | 16/2.6 | 16/2.6 | |||||||||||||||||
| Traveling Speed (m/min) | 5/20 | 5/20 | 5/20 | 5/20 | |||||||||||||||||
| Traveling Motor (kw) | 0.75 | 0.75 | 0.75*2 | 0.75*2 | |||||||||||||||||
| Wire Rope | Breaking Force | 2160N/mm^2 | |||||||||||||||||||
| Safety factor | 4.5:1 | ||||||||||||||||||||
| Insulation Grade | F | ||||||||||||||||||||
| Control Panel | IP65 | ||||||||||||||||||||
|
Working Grade (FEM/ISO) |
Lifting | 2M / M5 | 1Am / M4 | 2M / M5 | 1Am / M4 | ||||||||||||||||
| Traveling | 2M / M5 | 2M / M5 | 2M / M5 | 2M / M5 | |||||||||||||||||
|
Dimension (mm) |
H | 325 | 325 | 400 | 400 | ||||||||||||||||
| C | 750 | 750 | 920 | 920 | |||||||||||||||||
| B | 200-410 | 200-410 | 300-450 | 350-400 | |||||||||||||||||
