lifting tools , KDJ-250E electric winch & elecric windlass
Features :
1.Drum transmission structure: planet gears transmission , Coupling leads the drum trun directly . Easy to replace the rejected wire rope or change the rotation direction of the wire rope .
2.Wire rope fixing : one PT screw added on the drum , more safer than normal wire rope fixing , to ensure no escape of wire rope from the drum .
3.Brake mechanism : electromagnetism brake , use wearable brake slice . It 's very simple , and no need to adjust the clearance . Brake will autimatically apply in the event of power off . It can control the drop distance of heavy load , safe and reliable .
4.Gear box :made of ductile cast iron FCD-45# steel . Durable and nonbreakable.
5.Special motor : insulated B , with the features of big start torque , small inertia , lower temperature wise , it can work frequently for a long time .
6.Driving gear : made of high quality steel , be heat treatment and high precision process , wearable low noise , high driving efficiency and good performance .
7.Mechine fixture : standard channel steel welded . Convenient for building site , storage and port etc .

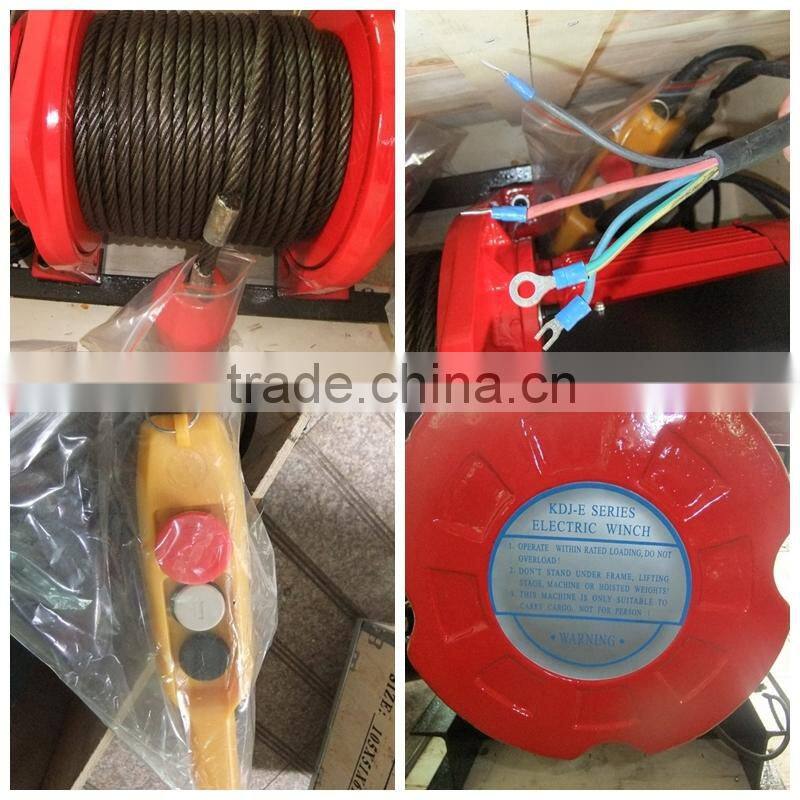

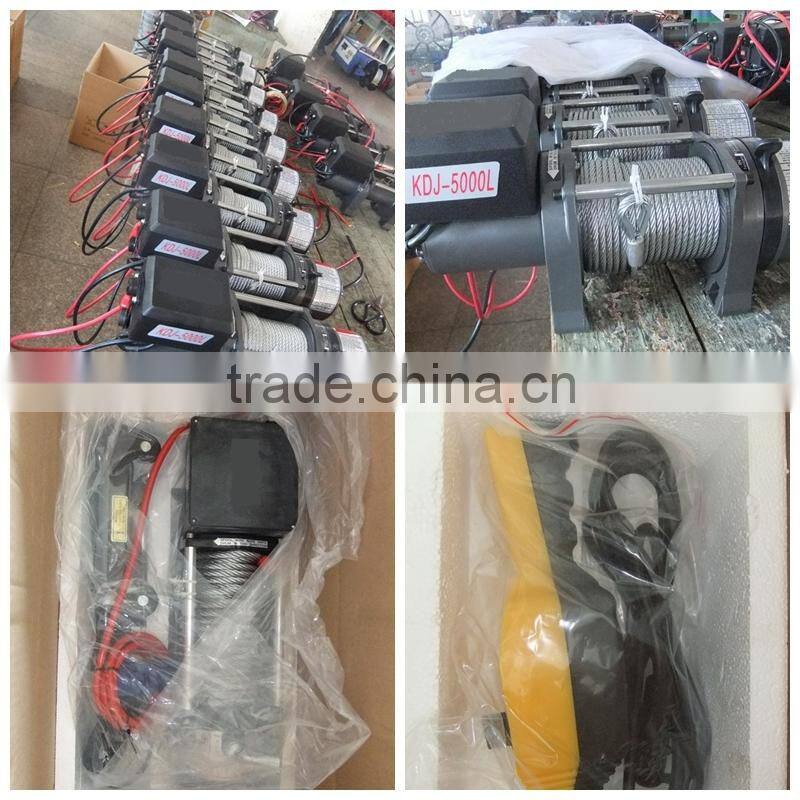

Pictures of winches we supplied to our clients :

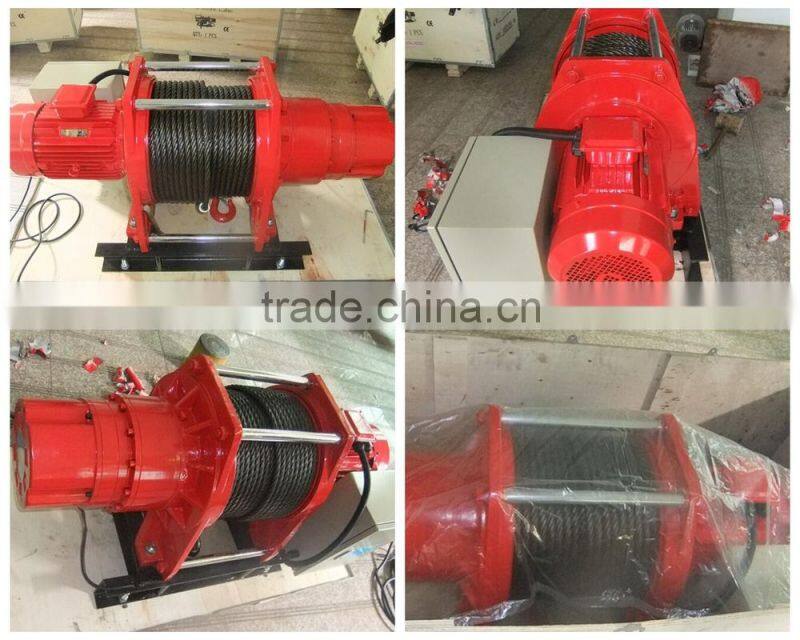

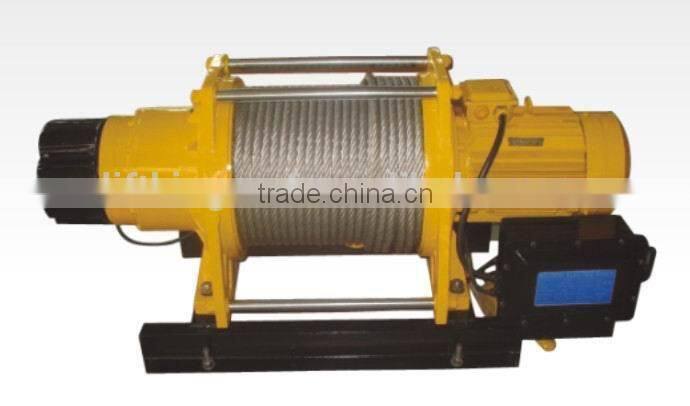

Electric winch & electric windlass
Manual winchs :
Specification of electric winch :
| Model | KDJ-200E | KDJ-250E | KDJ-300E | KDJ-300E1 | KDJ-500E1 | KDJ-750E1 | KDJ-1000E1 | KDJ-2200E1 | KDJ-3200E1 | KDJ-3500E1 |
| Rated Capacity (kg) | 200 | 250 | 300 | 300 | 500 | 750 | 1000 | 2200 | 3200 | 3500 |
| Rated Speed(m/min) | 11 | 13 | 13.5 | 10 | 11 | |||||
| Lifting Height (m) | 29 | 58 | 97 | 140 | ||||||
| Cable Diameter(mm) | Φ6 | Φ7 | Φ9 | Φ11 | Φ16 | Φ18 | ||||
| Wire Rope Capacity (m) | 30 | 30 | 60 | 100 | 143 | |||||
| Working Grade | M3 | M3 | M3 | |||||||
| Motor Power(kw) | 0.6 | 0.75 | 1.1 | 1.5 | 2.2 | 3 | 6 | 7.5 | 9 | |
| Pole | 4 | 4 | 4 | |||||||
| Voltage | AC100/110/120/220/230/240 |
Three Phase 230/380/415/440/480 |
Three Phase 230/380/415/440/480 |
|||||||
| Frequency(hz) | 50/60 | 50/60 | ||||||||
| N.w(kg) | 35 | 40 | 46 | 48 | 139 | 150 | 161 | 450 | 500 | 550 |
If you are interested in our electric winch or electric windlass , welcome to contact us for price and more information ! We are sure to quote you the best price and supply you the best quality products !
