Used oil filtration system / industrial oil edible oil cleaning plant

Specifications

Used oil filtration system HFD Series
1.no pollution
2.larger filtering size
3.vibrating discharging

Used oil filtration system / industrial oil edible oil cleaning plant

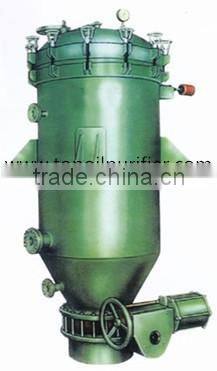

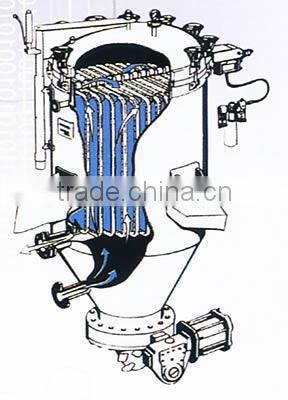

HFD series oil cleaning machine is closed type and stainless steel mesh filtering system. It is high efficiency,

energy saving, closed operation, high-grade filtering precision and decoloration. So it is widely

applied in chemical, petroleum, food, colloid, free carbon ect. It adopts novel structure and is

mainly composed of seat system, mesh filtering system, seal system, discharging system, manualoperation and live bolt locks seal. It is characterised by closed filtering operation, easy discharging

residua and no environmental pollution.





Features:

1. Completely closed filtering system, no environmental pollution.

2. Automatic pull-out structure of filter plate, observe conveniently, easy clean.

3. Double-side filter, larger filtering size, large capacity for holding residua.

4. Vibrating discharging system, reduce labor intensity.

5. This equipment also can be done as the big capacity and big size filtering system.



Technical data

Index	Unit	HFD-5	HFD -10	HFD 20	HFD -25	HFD -30
Filtering size	Squ/M2	5	10	20	25	30
Working pressure	MPa	≤0.4 (Special model can reach to 1MPa)
Particle	Micron	10
Particles Holding capacity	Kgs	200 - 700
Cleanness		≤NAS 10 Grade
Power supply		220V,50HZ (or 380v,50Hz, 3 Ph)
Weight	Kg	700	1200	1800	2200	2800
Dimension	mm	2050*900*1750	2200*980*1850	3000*1200*2000	3200*1480*2200	3950*1550*2200





About us:

Chongqing TOP Oil Purifier Manufacture Co., Ltd is a professional leading manufacturer of oil purifiers and oil testers. We takes the mission of existing on the basis of excellent quality as well as developing technical innovation, and introduces advanced technology.

TOP's pruducts are widely used in the fields of electric power, petrifaction, mineral, shipbuilding, steel construction, bridge, automobile and railway. They help a lot with reducing energy consumption and also environmental pollution.

Top will as always make great effort to and also be proud of supplying you the best oil purifying equipments.







TOP supplies products as follows:



Our oil purifying and recycling machine:
Series ZY Single-Stage Vacuum Transformer Oil Purifier
Series ZYD Double High Vacuum Transformer Oil Purifier
Series ZYB Multiply-Function insulating oil treatment machine
Series TY Turbine Oil Purification Apparatus
Series TYA Lubricating oil/ hydraulic oil purification unit
Series TYB Portable light Fuel oil purification machine
Series TYD Vacuum dehydrator
Series TYF Phosphate ester fire-resistance oil purifier
Series PL Plate pressure oil purifier
Series TYD Vacuum dehydrator
Series EFD Explosion protection filtration machine
Series BAM Press filtration system
Series ZKCC Vacuum pumping device
Series COP Cooking oil purification machine
Series CYS Centrifugal oil purification machine
Series JL Portable oil filtering and oiling machine

EOR series waste engine oil recycling system

Our major testers/ analyzers:

1.Transformer oil breakdown voltage tester ( BDV test kit) series IIJ-II

2. Acidity tester model ACD-3000I

3. Karl Fischer water content tester model TP-6A / model TP-2100

4. Moisture content tester(TPEE)

5. Fully automatic interfacial tension analyzer model IT-800

6. Gas-chromatography transformer oil gas analyzer model DGA2013-1

7. Consolidation point determinator model PT-2000

8. Kinematic viscosity tester model VST-2000

9. Flash point tester (open cup) model TPO-3000

10. Flash point tester (close cup) model TPC-3000

11. Transformer tester (CT/PT tester) model TPVA-404

12. Transformer turn ratio tester model HYG-II

13. Total base number analyzer(TBN tester) TBN-2030





For more information, please don't hesitate to contact us.
