MCR 200 Portable Magnetic Card Reader Writer Track 1 2 3 and Chip Card (only Driver and SDK)

US$ 150 - 160 MOQ: 3 Pieces

Key Specifications

Get Latest Price

Brand Name:

MCR

Model Number:

MCR200, MCR200

Type:

CF Card, Memory Stick Card, MMC Card, SD Card, SM Card, XD Card

Contact Supplier Request Quote Chat Now

Xinxiang Jia Xu Trading Corporation

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Brand Name MCR

Model Number MCR200, MCR200

Type CF Card, Memory Stick Card, MMC Card, SD Card, SM Card, XD Card

Card Slots All in 1 / Multi in 1

Installation External

Place of Origin Guangdong, China

MCR200 Multifunctional Magnetic/ Chip Card reader

Contact IC Chip Card Reader/Writer

POS smart card reader with USB interface

factory POS devices

Notes:

1.This item only can support EMV CPU IC card, can't support memory IC card.

2.It's a very professitional product which need to ask very professional engineer to

reprogram the software for IC Card Reader Writer.There is an existed software for the

magnetic card reader writer.

MCR200 Multifunctional Reader (Magnetic card, Smart card reader writer) can read/write up to 3 tracks, EMV smart card.

MCR200 Multifunctional Reader (Magnetic card, Smart card reader writer) provides reliable magnetic stripe reading/writing and Smart card reader/writer solution for retail, security and other related systems, it offer user a card reader/writer solution that will complement many applications.

Features:

Compact size
Support PBOC2.0, EMV IC card
manual swipe to read/write data with a single pass
Read/ write magnetic stripe card or passbook in both ISO & IBM format
Read/ write up to triple tracks (track 1&2&3, 300-4000Oe)
Tri-color LED & beeper for power on/read/write operations
PIN pad port & two extra serial port expander available
Well designed software/hardware and imported key components ensure the whole excellent performance
Module structure technology applied to ensure high efficiency and reliability

Specifications:

Card standards	IBM, ISO, DIN, ANSI
Manual feeding speed	20~120mm/sec
Writing density	1st track 210 BPI (max 76 characters)
	2nd track 75 BPI/210 BPI (max 36/104 characters)
	3rd track 210 BPI (max 104 characters)
Smart card reader module (Main/Sub)	Asynchronous Protocol for kinds of memory,logic cards Synchronous Protocol for various of smart cards
Interface	RS232, 2400/4800/9600 bps at option
Reliability	MTBF > 20000H, MTTR < 30 MIN
Lifetime	Magnetic header : Min. 300,000 swipes IC card: min100,000 insertions SAM card : min 5,000 times
Power supply	DC 9V 750mA / 5V 320mA by host computer
Working conditions	0~40° C, 15%~85% RH non-condensing
Dimensions (LW H)	210mm 60mm 60mm
Cable length	2m
Weight	1.4Kg
Housing	Plastic PC, Ivory or Black color

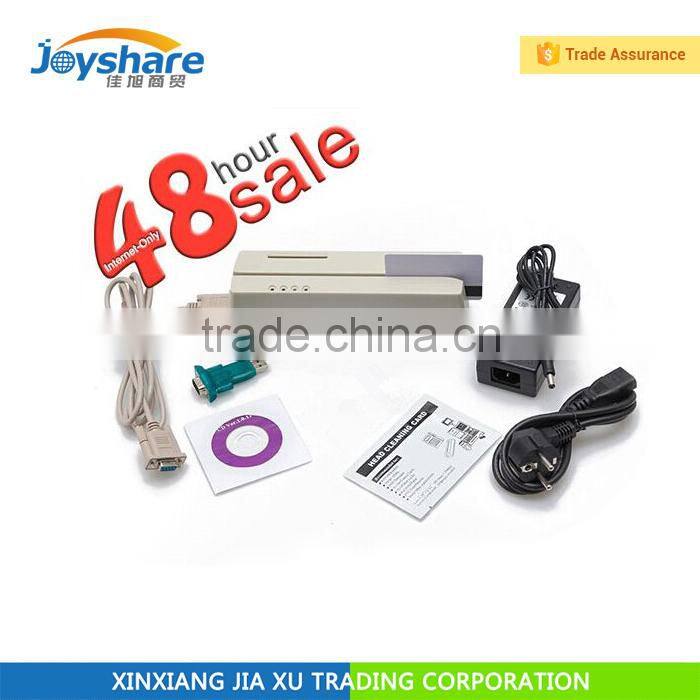

Package:

1). 1x Brand New MCR200

2). 1x CD includes drivers

3). 1x magnetic Head cleaning card

4). 1xRS232 signal cable

5). 1x Power Adapter + Cable (input 100-240V AC, output 24V DC)

6). 1x AC Power cable ( we can provide USA Standard, Euro Standard, UK Standard and AU Standard,that depends on the location of your country )
