Home > Security & Protection > Access Control System > Access Control Card Reader > Msr605 Magcard Reader Writer Encoder Software Free Compatible Msr206 Msrx6 Msr609 Msr606

Msr605 Magcard Reader Writer Encoder Software Free Compatible Msr206 Msrx6 Msr609 Msr606

US$ 120 - 149 MOQ: 1 Piece

Key Specifications

Get Latest Price

Brand Name:

MSR

Model Number:

MSR605, MSR605

Type:

CF Card, Memory Stick Card, MMC Card, SD Card, SM Card, XD Card

Contact Supplier Request Quote Chat Now

Xinxiang Jia Xu Trading Corporation

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Brand Name MSR

Model Number MSR605, MSR605

Type CF Card, Memory Stick Card, MMC Card, SD Card, SM Card, XD Card

Card Slots All in 1 / Multi in 1

Installation External

Place of Origin Guangdong, China

USB Hi/Lo-Co MSR605 Magnetic Card Reader Writer

Encoder Compatible MSR206 msr606 msr605 msr609 msrx6

Note:We have warehouse in shenzhen/US/UK/Australia.

Package including

* MSR605 + * Software CD+ * Power adaptor +* USB cable directly+ * 1 Test Card

- CE, FCC, UL, cUL,ROHS certified

- One year warrenty

1. Description of msr605

Features

Reading/Writing magstripe card complied with ISO formats
Read/Write High & Low Coercive (300~4000Oe)
High/Low Coercivity encoding circuitry selectable on screen
Program software for Windows 98/Me/XP/VISTA
Programming software for various read/write performance
Sequential write function, up to 12 digits (1 up)
Manual to read and/or write card with USB output
Writing and verifying data on single, dual, or triple track in one swipes
+9VDC, 2A Max external power adapter attached
Dimensions of 212(L) x 64(W) x 63(H) mm

Specification
Electrical
Power requirements	+9VDC +/- 5%
Consumption	Typical 350mA Max. 600mA plus for each writing track
Power supply	External switching power 9V/2A
Communication	Standard USB cable
Ripple	50mVp-p or less
Dielectric strength	500 VDC for 1 minute

Performance
Read card	Track1	Track2	Track3
Bit per density	210 bpi	75/210bpi	210 bpi
Coercive force	Read/write/Erase 300-4000 oe Mag.card
Card thickness	0.76-1.2mm
Read speed	STD card	Jitter +/-15%	Amp. 60%
	5-55ips	5-50ips	5-50ips
Write speed	5-30ips
Write jitter	Interval < +/- 10%, Sub-interval < +/- 12%
Error rate	Read < 0.5%
	Write < 0.8%
Head life	Min. 500K swipes for both read/write head

Mechanical
Body material	ABS 94V-0
Weight	Approx. 1.4kg
Dimension	212L x 64W x 63H mm
Swipe	Manual, single direction

Environments
Operation	-10 to 55^oC, 10 to 85% humidity
Storage	-30 to 70^oC, 10 to 90% humidity
Safety Approval
Rating	FCC Class B, CE ClassB, UL, cUL,ROHS

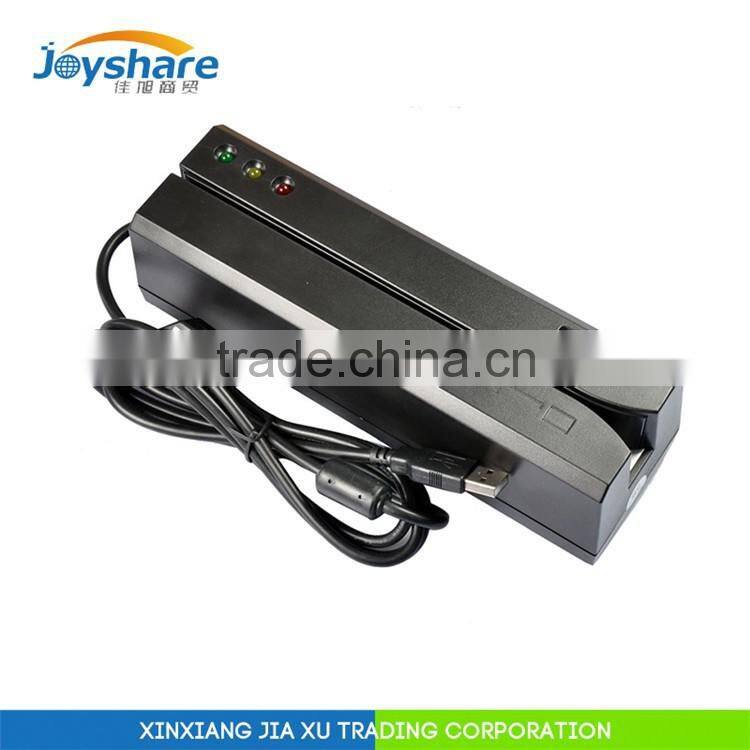

2. Pictures of msr605
