Specifications

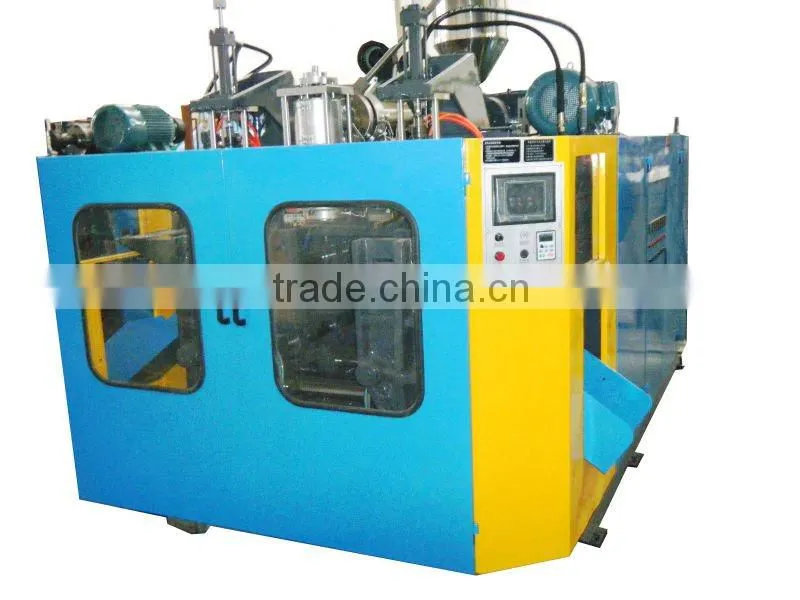

1L2L3L 5L PE bottles making machine blow moulding machines1.adopt Japan&Taiwan technology
2.free after-sale service
3.ce
Bottle blow molding machine:
Advantages:
1.Auto-deflashing unit available.
2.Wide variety of materials available,
3.Suitable for bottles not over 5 L.
4.The clamping system is a high-precision single-station linear guide,
5.extrusion system use a hard gear and inverter imported from Japan.
6.The die head system adopt central-incoming extrusion die.
7.Imported hydraulic valve and seal valve with proportional control valve.
8.Control system consists of PLC and human machine interface imported from Japan.
Main technical parameter:
Max. Product volume |
5 liters |
Dry cycle |
1000pc/h |
Screw diameter |
65mm |
Screw L/D ratio |
24 L/D |
Screw drive power |
18.5 KW |
Screw heating capacity |
5-6 KW |
No.of heating zone |
3 zones |
Output of HDPE |
80 KG/H |
Oil pump drive power |
7.5 KW |
Clamping force |
65 KN |
Max.size of mold |
148-568mm |
Mold stroke |
330X370mm |
Max.die diameter |
160mm |
Blowing pressure |
0.6mpa |
Air volume |
0.6 M³/MIN |
Cooling water pressure |
0.3mpa |
Water consumption |
50 L/MIN |
