Help Center5L Jerry Cans Blow Moulding Machine
Related Products
Specifications
Plastic blow moulding machineMax volume 7.5L
adopt Japan&Taiwan technology
Double station design
competitive price
5L PE blow moulding machine
Model No.: ABLB7(Double station single die head)
ABLB75 5L PE blow moulding machine was specially designed for making plastic water bottles, lubricant oil bottles,detergent bottles ,cosmetic bottles, and other plastic containers not over 7.5L
Main parts of Machine |
Picture |
Explanation |
|

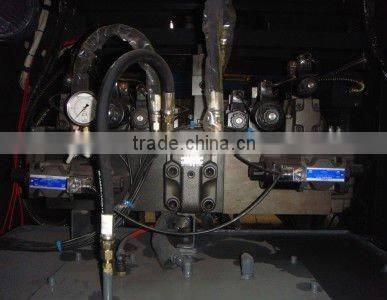

Oil Pump |
|
Oil pump From Japan YUKEN driving the machine |
|
Computer control system (PLC) |
|
Japanese Mitisubishi PLC
Used to control all electrial components and touch screen |
|
Die head |
|
Single die head Stable and easy to maintenance |
|
Auto deflashing unit |
|
This device is able to remove the extra parts of products
|
|
Product after auto-deflashed |
|
Perfect product Save your manual Cost. |
|
Electric Cabinet |
|
This part is the full electric components of the machine |
electronic parts |
|
Name |
Trader |
Micro computer control system |
Japanese MITSUBISHI |
Temperature Controller |
TAIWAN YANHUA PID |
Auxiliary Relay |
OMRON |
contactor |
Schneider from France |
Electric motor |
Three phase 220V or 380V |
Power Source |
TAIWAN MEANWELL |
Transducer |
TAIDA FROM CHINA |
hydraulic parts |
|
Name |
Trader |
Oil pump |
TAIWAN HIGH-TECH |
Valve |
JAPAN YUKEN |
Oil pump and connection |
JAPAN YUKEN |
Sealed part |
HALLITE |
air control system |
|
Name |
Trader |
Cylinder |
AIRTAC |
Air Valve |
FESTO |
Technical Parameters: ( ABLB75
Max. Product volume |
7.5 liters |
Output capacity |
150~180pc/h |
Screw diameter |
75mm |
Screw L/D ratio |
24 L/D |
Screw drive power |
22 KW |
Screw heating capacity |
7 KW |
No.of heating zone |
4 zones |
Output of HDPE |
100KG/H |
Oil pump drive power |
11 KW |
Clamping force |
78KN |
Max.size of mold |
148-568mm |
Mold stroke |
400 X 450mm |
Max.die diameter |
160mm |
Blowing pressure |
0.6 mpa |
Air Volume |
0.8 M³/MIN |
Cooling water pressure |
0.3mpa |
Water consumption |
80 L/MIN |
Size of Machine |
3.8x2.2x2.8m |
Weight of machine |
8 ton |
